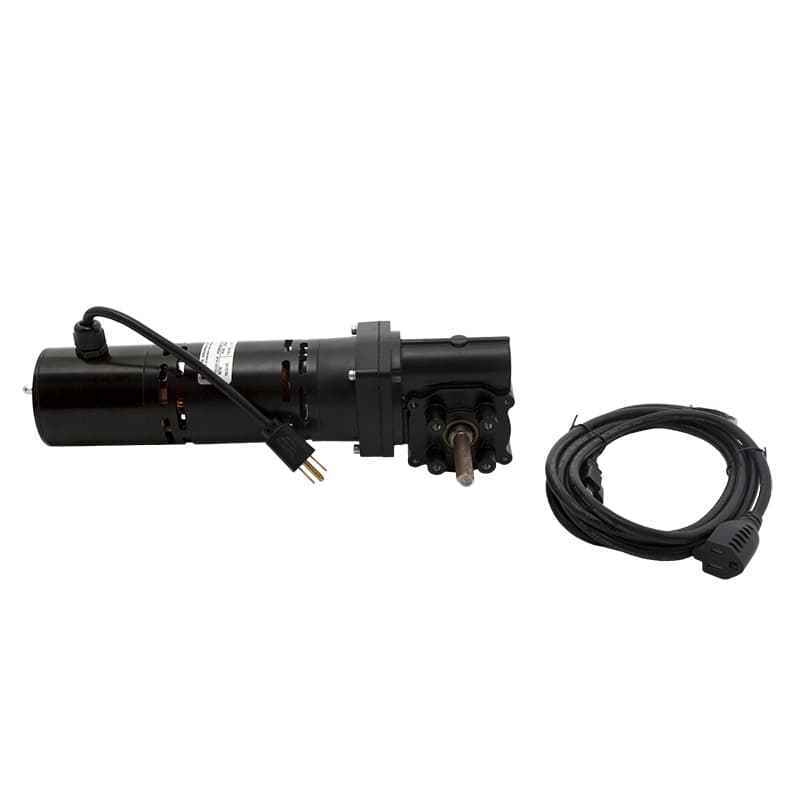

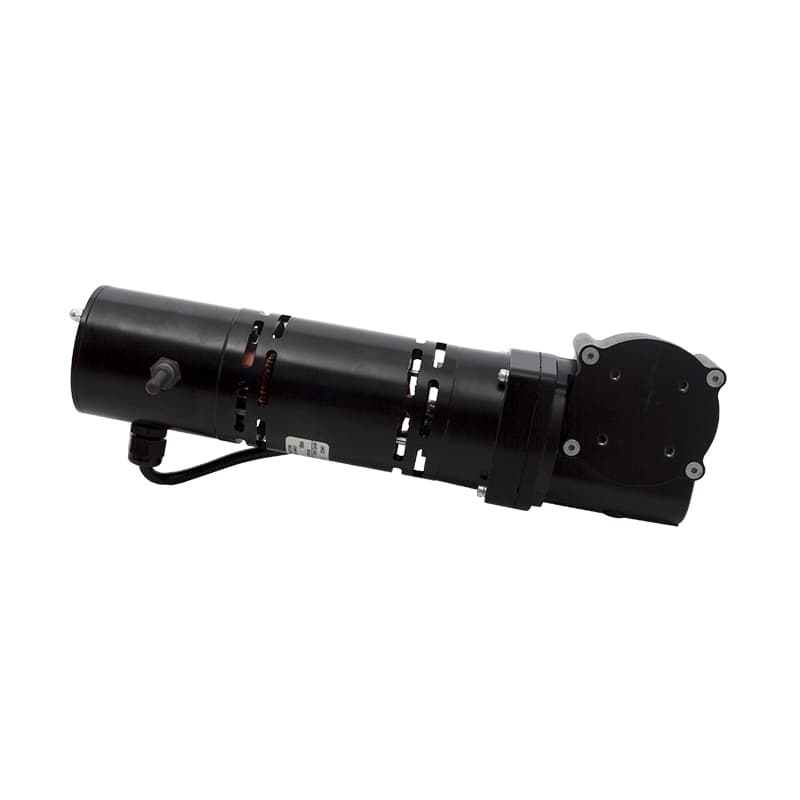

Resinator OG/XL Replacement Motor

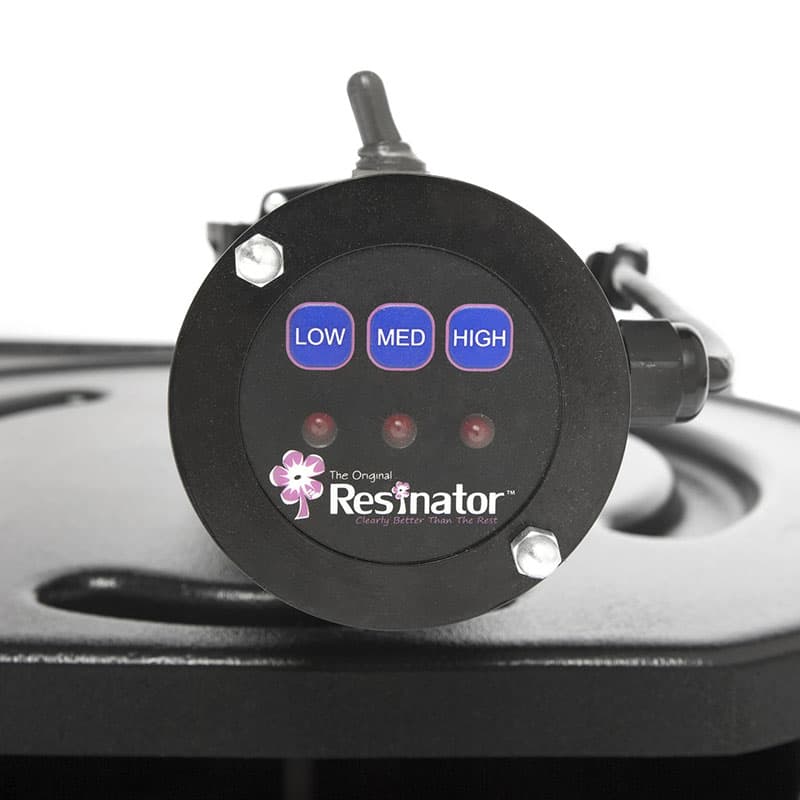

Our Resinator Series custom permanent magnet DC (PMDC) right angle worm drive gear motors come equipped with integral onboard motor controls and a 10 ft. extension cord. They are heavy duty, durable, long life, high efficiency motors designed specifically for Resinator commercial and industrial applications. Features: Built in On/Off – Forward/Reverse switch Internal fan and motor housing louvers and Class H insulation (180 °C) keep motor cool during operation Custom mounted digital control panel with built in variable speeds: Hi = 35 rpm, Mid = 25 rpm, and Low = 15 rpm. Rugged aluminum die cast gear box and end housings Stainless steel output shaft 1/2” standard diameter Continuous torque rating to 600 inch lbs Steel and bronze high performance gearing for high strength and durability Resilient corrosion proof powder coat finish limits oxidation Ultra quiet operation, about 30dB or less. Low power consumption, only 1.5A when loaded and operating at Hi speed Designed and manufactured in the USA UL recognized Patent pending *The Resinator motor operates on 110-120V power supply only (115VAC single phase).  You must use a Power Converter if your power supply is different. Download OG Motor Spec Sheet Download XL Motor Spec Sheet
