Talon 1400

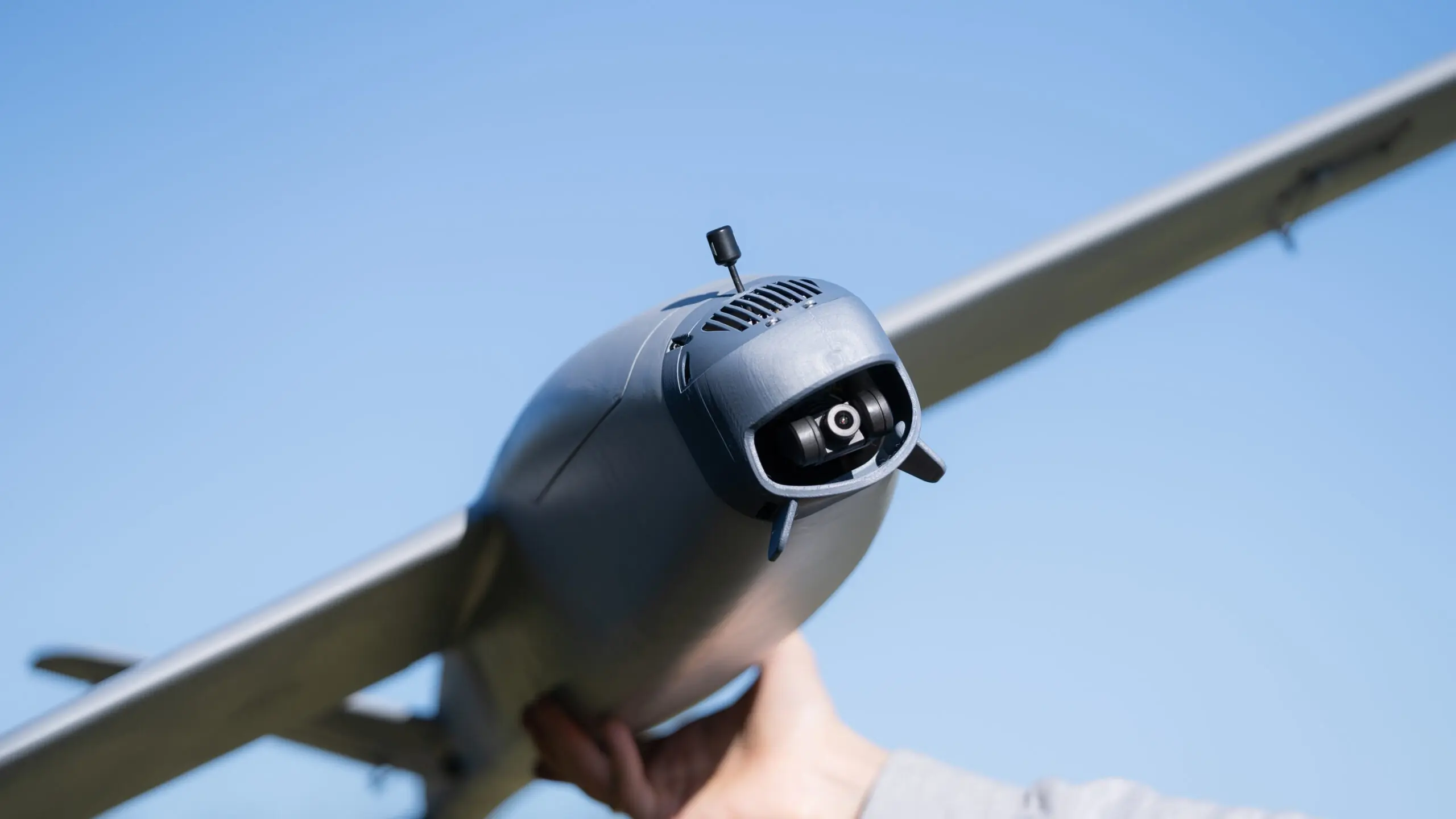

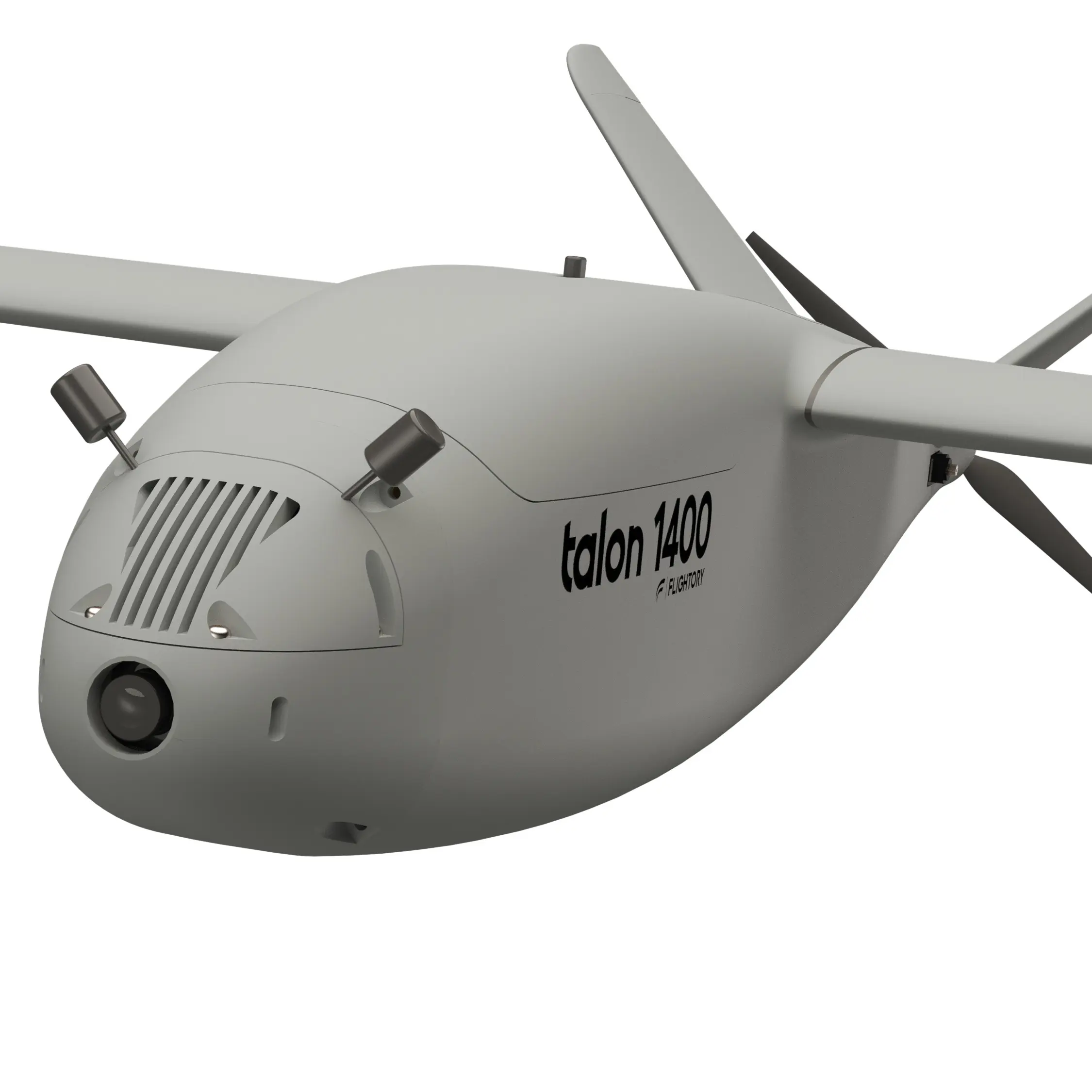

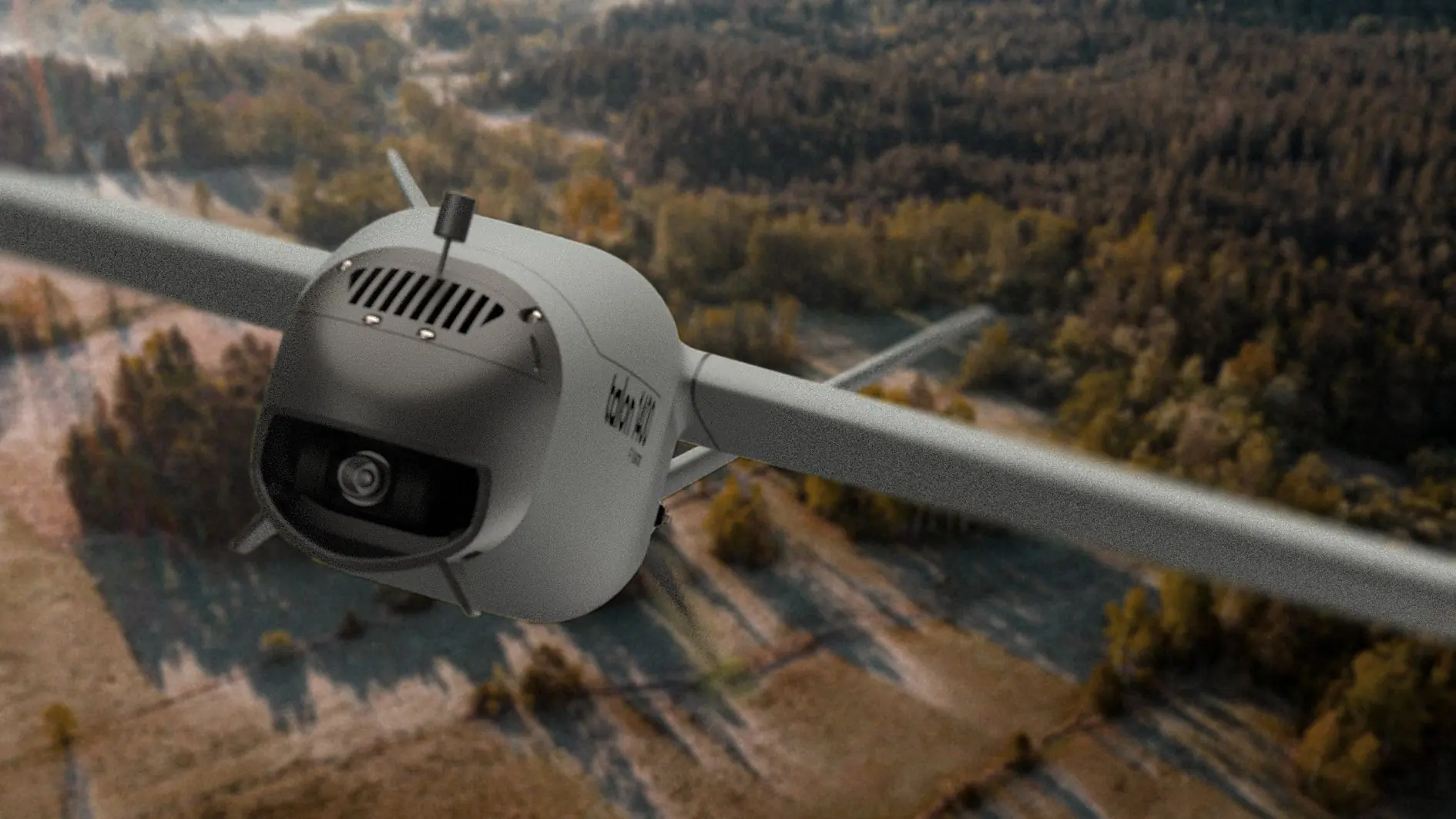

General Data Introducing Talon 1400 – Your Ultimate 3D Printed UAV. Experience the perfect blend of compactness and outstanding flight performance with our Talon 1400. 3D Printed plane designed for maximum flight optimization, it boasts ample space for a large battery pack and extra equipment while maintaining modularity. Crafted with precision through CFD analysis and real-world flight testing, the Talon 1400 offers up to an impressive 4-hour flight time when equipped with a large Li-Ion 4S6P battery. Accessibility is a breeze for all, and versatility is key, allowing you to adapt to various equipment options. Tailored to your preferences, this aircraft comes with two tail variants to accommodate popular motor sizes, letting you choose the perfect fit for your needs. Moreover, the nose section offers two configurations: one with a VTX and a 19x19mm FPV camera or a sleek, clean option with just the FPV camera. For those who crave customization, we provide key parts in STEP format, enabling easy editing and personalization to meet your unique requirements. Whether you need to modify the nose for different payloads or simply want to switch it up, the Talon 1400’s adaptability ensures you’re always ready for your next flight mission. Check assembly manual, full list of needed accessories and more tips here: MODULAR NOSE  Modular nose design for versatile payload options. Easily customize your UAV’s nose section to meet specific mission needs. Also available in STEP format. STEP FILES STEP files of important parts provided for easy customization. Modify and adapt components effortlessly to suit your unique requirements. Check the full list of files in the user manual. GALLERY VIDEOS Powered by youtube embed video generator Powered by youtube embed video generator Powered by youtube embed video generator CFD RESULTS The geometry is designed to provide the best possible characteristics. Eppler E205 airfoil was selected. The shape of the wing and the V-tail stabilizers, as well as their mutual position and incline angles, were optimized to ensure high performance as well as longitudinal stability. At around zero AOA, the aircraft shows no pithing moment. Optimal aerodynamic performance is in the limit from 0 to 2 degrees of AOA and at speeds from 55 to 65 km/h. With a proper center of gravity position of 63mm from the leading edge, the aircraft does not require any trim, and its natural stability allows it to fly in manual mode as well, or without a flight controller. WIRING DIAGRAM A simplified sample wiring diagram for easier understanding of component layout and connections.  Also available in PDF within the file package. Required accessories: ITEM QUANTITY 10x530mm Carbon Tube (MAIN SPAR) link / link / link 2 6x400mm Carbon Tube (SECOND SPAR) link / link / link 4 4x175mm Carbon Tube (VTAIL SPAR) link / link / link 4 Thick CA Glue link 20g tube CA Activator link 1 (optional but useful) M3 Threaded Insert link 20 M3 screw 20 LW-PLA / LW-ASA link / link 1 roll PLA / PC / other hard material link / link Small amount CA Polyester hinge 20x25mm link / link 14 Velcro strap link 2 Servo extension cable link 2 (optional) Control Horn link 4 Pushrod e.g. link / link 4 Recommended electronics: Motor 2830 1200KV Prop Drive / 4108 620KV link / link Propeller 10×5 (2830 Motor) / 12×10 or 13×8 (4108 Motor) link / link / link Flight Controller Speedybee F405 Wing or any other Mavlink FC link GPS Matek M10Q or similar GPS with compass link Servos 4x EMAX ES08 MAII Metal Gear or similar link / link ESC BlHeliS 30-40A link Battery 4S (max 4S6P 21Ah Li-Ion) or smaller pack / similar LiPo link / link Receiver Matek R24-D ELRS or similar link FPV Camera + VTX Walksnail Avatar or any digital or analog link / link FPV Goggles Walksnail Goggles X or any other matching the chosen VTX link Gimbal Caddx GM3 or twin models for other FPV systems link Required Additional Equipment: 3D Printer Bambu Lab P2S or other with min. 220x220x200mm build volume link RC Transmitter Radiomaster TX16S or other modern RC Transmitter link Transmitter Module HappyModel ES24TX or other ELRS TX link Printing Settings: Check the specified print settings on the Print Settings Page Licensed for personal use only under: License Agreement
