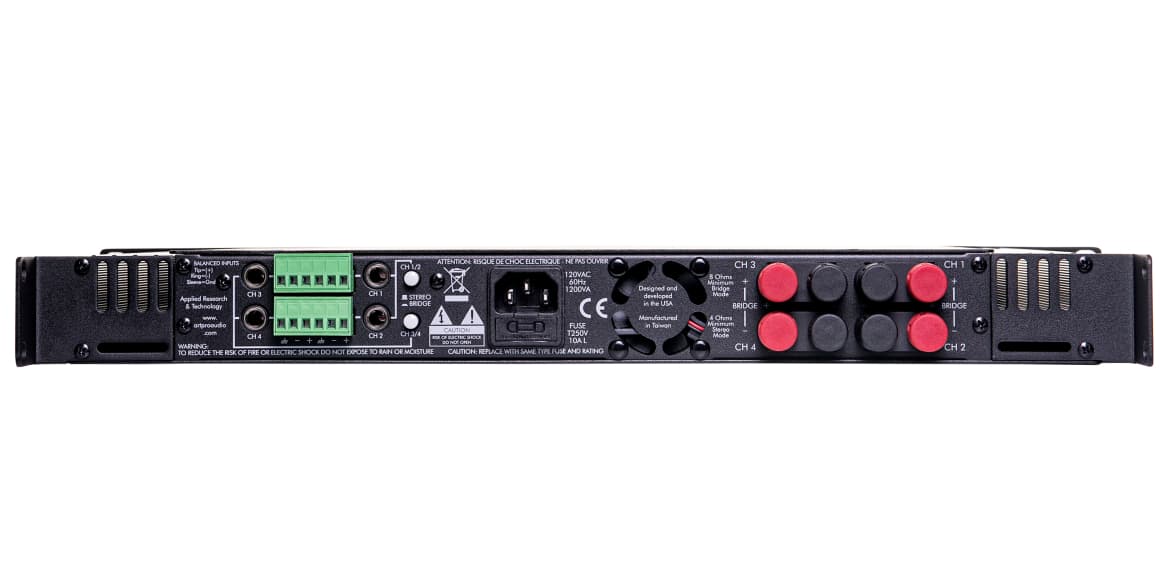

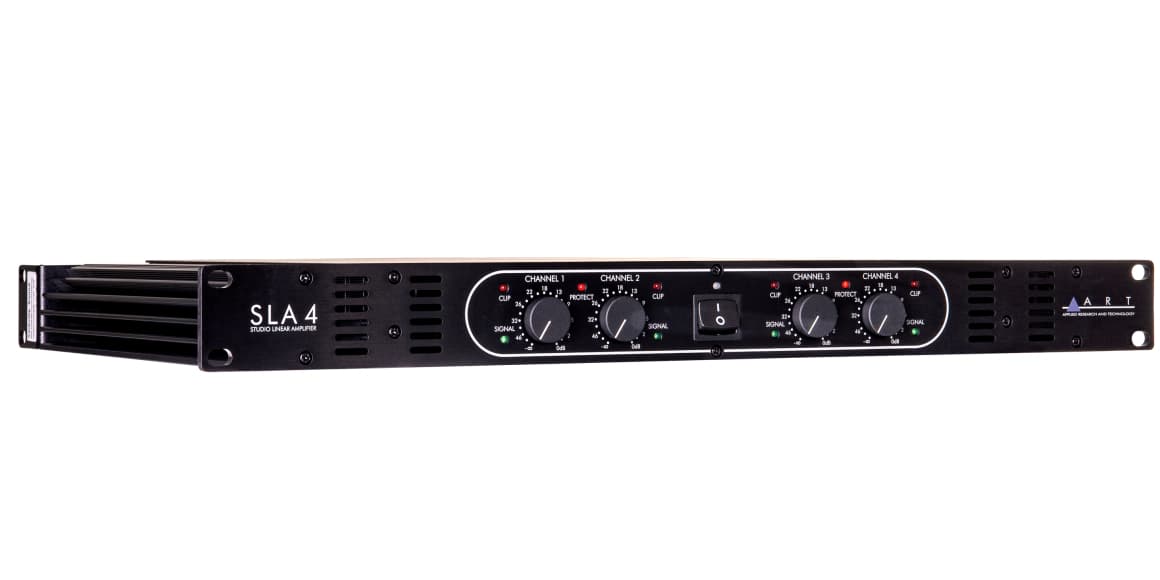

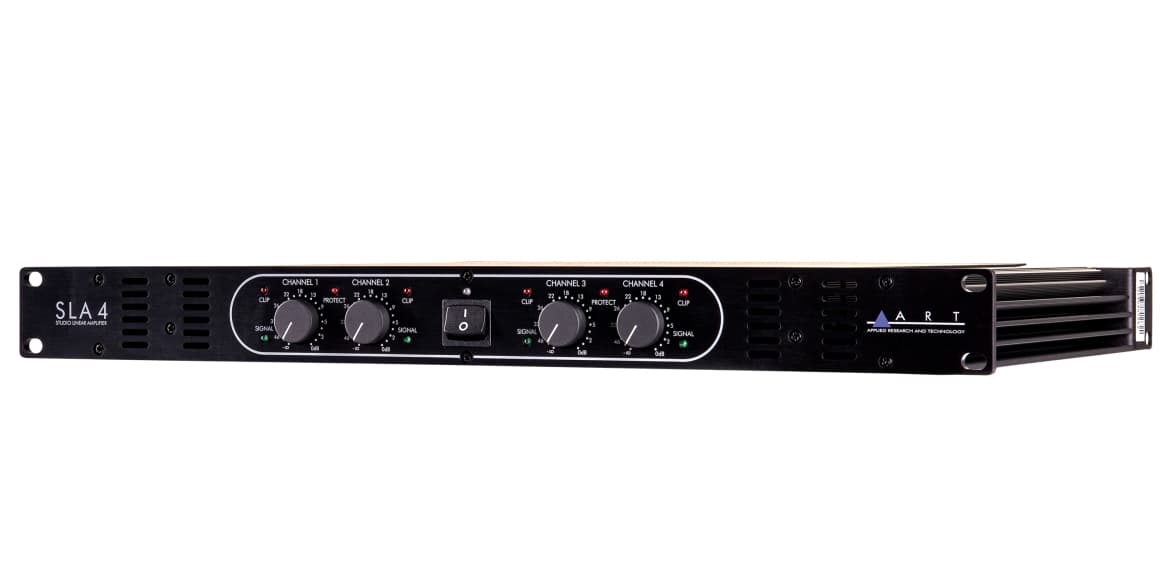

SLA4 4-Channel 100 W Power Amplifier

Owner’s Manual Features 4-Channel Linear Power Amplifier 100 W per Channel, 280 W Bridged (8Ω) Euroblock Inputs Binding Post Outputs 10 Hz – 40 kHz Frequency Response (+/- 0.5 dB) SmartFan Adaptive Cooling System 1U Rackmount Specifications Stereo Output Power Stereo Output Power, 4 Ω: 4 x 140 W/Channel RMS Stereo Output Power, 8 Ω: 4 x 100W /Channel RMS Minimum Load Impedance Mono 4 Ω (Bridged) Minimum Load Impedance Stereo 2 Ω (Stereo) Input/Output Connections 1/4″ TRS/Euroblock (Input) / Multi-Way Binding Frequency Response (Hz CM +/- 1dB) 10 Hz to 40 kHz, +/- 0.5 dB Hum and Noise (un / A-weighted -dB) > 100dB below clipping Slew Rate (V/uS) > 20V/uS Input Impedance – Bal/Unbal (Ohms) 44k Ω (balanced) / 22k Ω (unbalanced) Input Sensitivity (Vrms) For Full Power Out 1V for full power output into 8 Ω CMRR AT 60Hz (min/typ) > 60 dB (typical @1 kHz) Stereo / Bridge (S/B) Bridged Output Power, 16 Ω: 2 x 200W/Channel RMS Bridged Output Power, 8 Ω: 2 x 280W/Channel RMS Transformer Type Toroidal Other Features Minimum Load Impedance, Mono 4 Ω (Bridged) Minimum Load Impedance, Stereo 2 Ω (Stereo) Dimensions 1.75″ x 19″ x 13.5″ (4.45 cm x 48.3 cm x 19.05 cm Weight (lbs/kg) 19.8 lbs / 9.0 kg
