SG6 Xstream Snowmaker

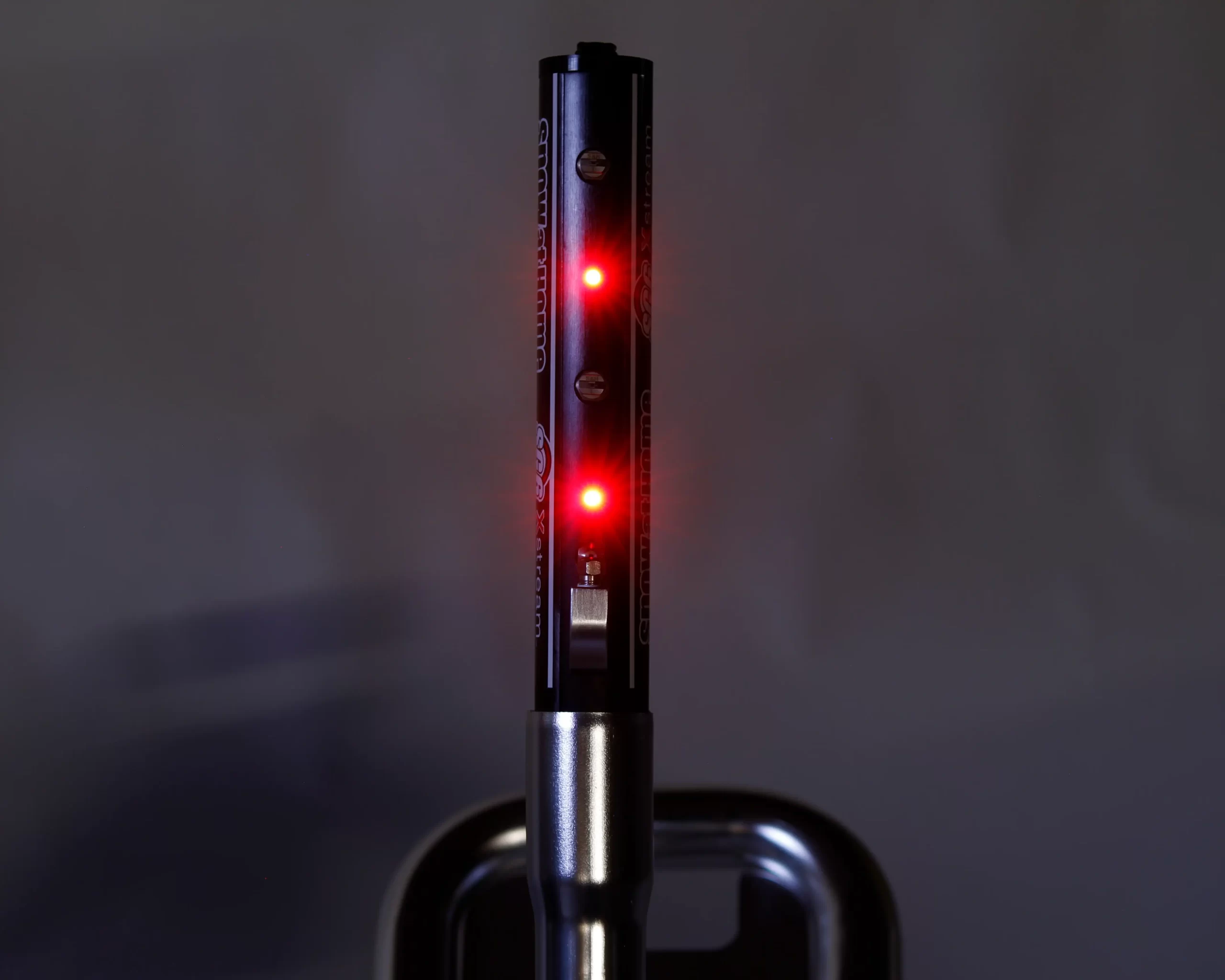

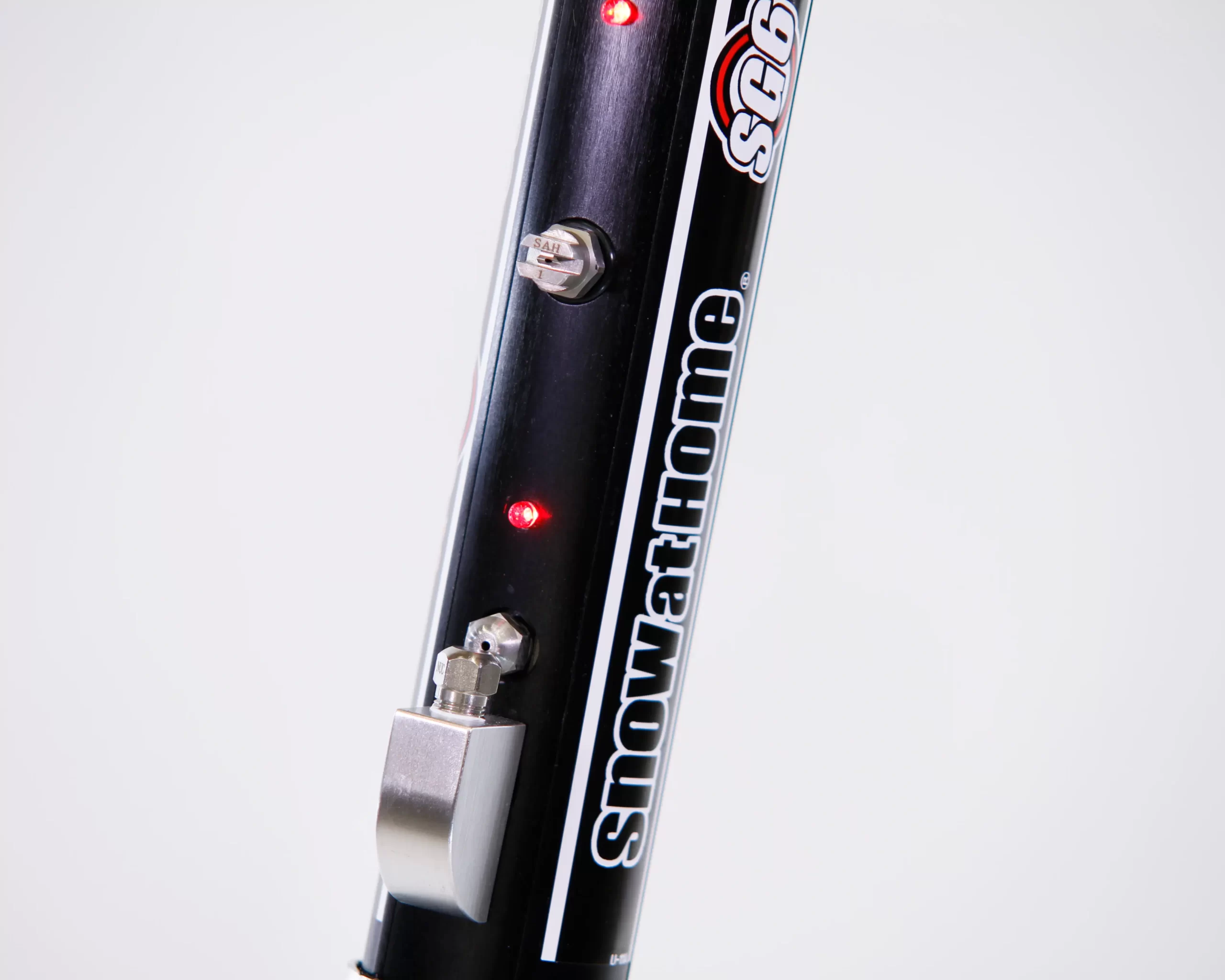

SG6 Snowmaking Head The head is fabricated from solid anodized aluminum yielding a commercial quality Real Snow Maker available for the home or small business owner. Through precision machining, our exacting standards for proper nozzle alignment and quality construction are achieved. The internal structure provides for a very durable product. The inner air and water chambers are pressure rated for 5000psi! The solid aluminum head acts as a heat sink to warm the air chamber and cool the water temperature resulting in an increased snow production volume. Cooling fins create an increased surface area and aid in thermo regulation. The New design helps prevent air nozzle freezing issues that can occur with designs utilizing multiple internal components. Integrated LED plume illumination allows for easy visual system check and exciting lighted snowmaking display. Nozzles It has taken years of research utilizing everything from flow meters to microbolometers to be able to design the ULTIMATE home snow making nozzle. Based on our findings we have precision nozzles that are now manufactured specifically for SAH™. The SG6-Xstream snowmaker™ incorporates two of these upper misting nozzles. The latest in SAH’s™ line of nozzles is our precision designed, stainless steel air nozzle. Working in combination with the nucleation nozzle, an incredibly complex nozzle, the exact self-regulating requirements for the perfect seeding conditions are created. Hoses Two, ten foot, 3000psi, high pressure hoses, for air and water. The air hose comes with a removable, ¼” NPT, quick connect air adapter making it compatible with SAH’s™ 5.3cfm air compressor and most other compressors on the market. The water hose comes with a 22mm pressure washer adapter making it compatible with SAH’s™ 2.5gpm snowmaking pump/pressure washer and most small pressure washers (1.3-2.5gpm) designed for home use. Stand The stand has been redesigned for safety, stability, and to handle the demands of our new snowmakers. Ratcheting gear lock system for adjustable head angle position Quick release legs for easy compact storage, with an opening at the insertion point that allows for additional sand weighting of the frame. Constructed of 2” diameter anodized aluminum tube Sandbag included Requirements for Operation Temperature 29° Fahrenheit / -2°Celsius or less. See Snowmaking Chart. Air Compressor – electric or gas: rated for continuous use (not oil free) with a minimum output of 5.3CFM at 90PSI. (Minimum maintained operation pressure of 50psi) SNOWatHOME™ recommends the SAH-PCAC 5.3 Porter Cable Air Compressor. Pressure Washer – any electric or gas: rated from 1.3GPM to 2.5GPM (more water equals more snow) with a pressure range of 1200psi to 4000psi. SNOWatHOME™ recommends the SAH-25EP 2.5GPM Snowmaking Pump/Pressure Washer.
