Roller chain no. 04 pitch 6mm PN: 10060000

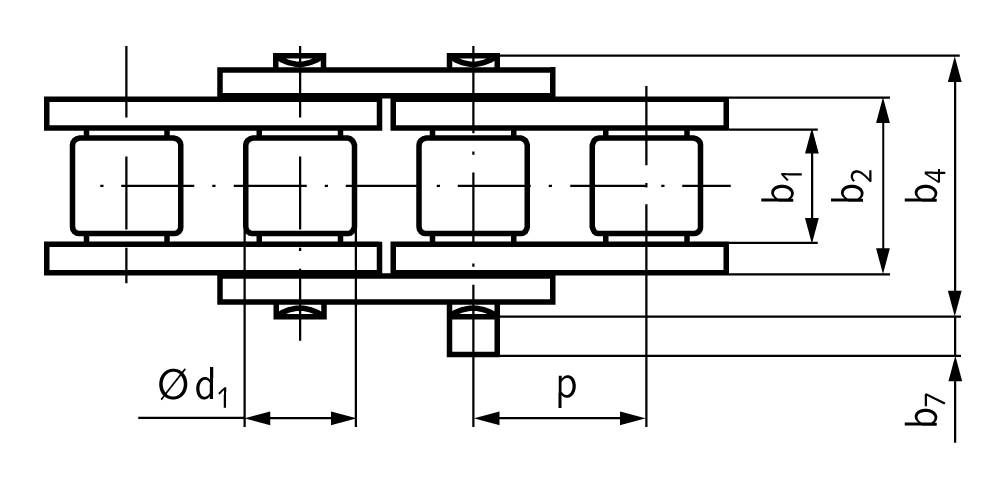

Part number (SKU) 10060000 Material Steel Surface Blank Number of strands 1 DIN ISO No. 04 Pitch x inner width [p x b1min] 6.0 x 2.8 [mm] Inner width [b2] 4.10 [mm] Rollerdiameter [d1] 4.00 [mm] Bolt diameter 1.85 [mm] Total width over pin [b4] 7.4 [mm] Projection over Link [b7] 2.9 [mm] Breaking Load min. 3000 [N] Weight 0.12 [kg/m] CATALOG PRODUCT PAGE CAD FILES (download) ADDITIONAL INFORMATION If you need a rework or a custom-made-product please contact us directly with your inquiry. The supplied 3D models, pictures and technical drawings are made with reasonable care. Nevertheless liability is excluded for the accuracy and correctness of this data.
