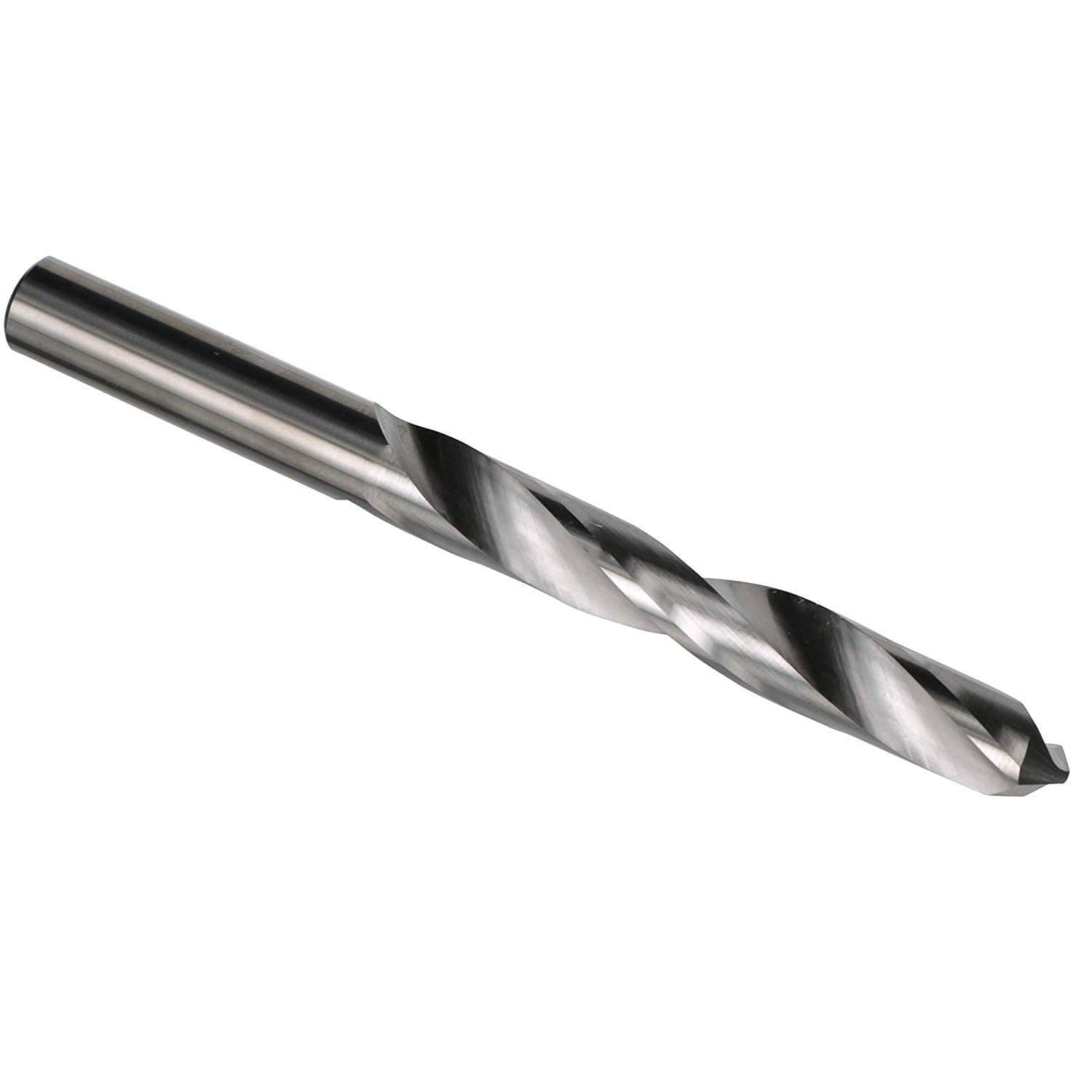

XNF Sub-Micron Solid Carbide Twist Drill Bits – Metric

Solid Carbide Sub-Micron Jobber Twist Drill Bits – Made in USA XNF Sub-Micron Solid Carbide Twist Drill Bits – Metric Metric Solid Carbide Drill Bits – Sizes 1.0mm through 12.5mm Precision Ground • 4-Facet 118° Split Point • Made in USA The XNF Metric Solid Carbide Twist Drill Bits are precision ground from premium sub-micron solid carbide for exceptional rigidity, wear resistance, dimensional accuracy, and tool life. Designed for professional machining and production drilling, these metric carbide drill bits feature a 4-facet 118° split point for fast, accurate starts with reduced walking. A 2-flute, 25° helix provides efficient chip evacuation and smooth cutting performance in rigid machine setups. With tight diameter control and precision-ground cutting geometry, these solid carbide drills are capable of producing reamer-type hole finishes in the proper application, making them an excellent choice where hole size, finish, accuracy, and repeatability matter. Cutting Geometry Sub-micron solid carbide 4-facet 118° split point 2-flute design 25° helix Right-hand cut Right-hand spiral Bright / uncoated finish Recommended Materials Excellent for drilling: Steel Cast iron Aluminum and aluminum alloys Brass Bronze Copper and copper alloys Non-ferrous alloys Plastics and composites Abrasive materials Also suitable in the proper machine setup and cutting conditions for: Stainless steel Nickel alloys Titanium Hardened steels Other difficult-to-machine materials Features Metric solid carbide drill bits from 1.0mm through 12.5mm Premium sub-micron carbide Precision-ground solid carbide construction 4-facet 118° split point 2-flute, 25° helix Fast, accurate starting with reduced walking Efficient chip evacuation Excellent rigidity and wear resistance Tight diameter control h7 metric tolerance Excellent hole size and dimensional accuracy Capable of reamer-type finishes Designed for CNC, toolroom, and production drilling Made in USA Solid carbide provides substantially greater rigidity and wear resistance than conventional HSS or cobalt drills. In rigid machining setups, XNF carbide drills provide excellent hole quality, cutting-edge stability, dimensional control, and extended tool life, especially in abrasive materials and production applications. For best tool life, hole quality, and cutting performance, use the proper speeds and feeds with coolant or cutting fluid directed at the point of cut. Need Help Choosing the Right Carbide Drill Bit? Call 800-350-TOOL — that’s what we’re here for. Made in USA Metric Size Decimal Inch LOC OAL SKU 1.0mm .0394″ 16mm 38mm DR-450-0.0394 1.5mm .0625″ 19mm 38mm DR-450-0.0625 2.0mm .0787″ 22mm 45mm DR-450-0.0787 2.5mm .0984″ 25mm 51mm DR-450-0.0984 3.0mm .1181″ 32mm 57mm DR-450-0.1181 3.5mm .1378″ 35mm 64mm DR-450-0.1378 4.0mm .1575″ 35mm 64mm DR-450-0.1575 4.5mm .1772″ 41mm 70mm DR-450-0.1772 5.0mm .1969″ 45mm 75mm DR-450-0.1969 5.5mm .2165″ 45mm 76mm DR-450-0.2165 6.0mm .2362″ 51mm 83mm DR-450-0.2362 6.5mm .2559″ 51mm 83mm DR-450-0.2559 7.0mm .2756″ 54mm 89mm DR-450-0.2756 7.5mm .2953″ 60mm 95mm DR-450-0.2953 8.0mm .3150″ 60mm 95mm DR-450-0.3150 8.5mm .3346″ 64mm 102mm DR-450-0.3346 9.0mm .3543″ 64mm 102mm DR-450-0.3543 9.5mm .3740″ 70mm 108mm DR-450-0.3740 10.0mm .3937″ 73mm 114mm DR-450-0.3937 10.5mm .4134″ 73mm 114mm DR-450-0.4134 11.0mm .4331″ 73mm 114mm DR-450-0.4331 11.5mm .4528″ 76mm 121mm DR-450-0.4528 12.0mm .4724″ 76mm 121mm DR-450-0.4724 12.5mm .4921″ 76mm 121mm DR-450-0.4921 Made in USA Looking for Fractional? Premium Solid Carbide Sub-Micron Jobber Drill Bit
