pico Talon

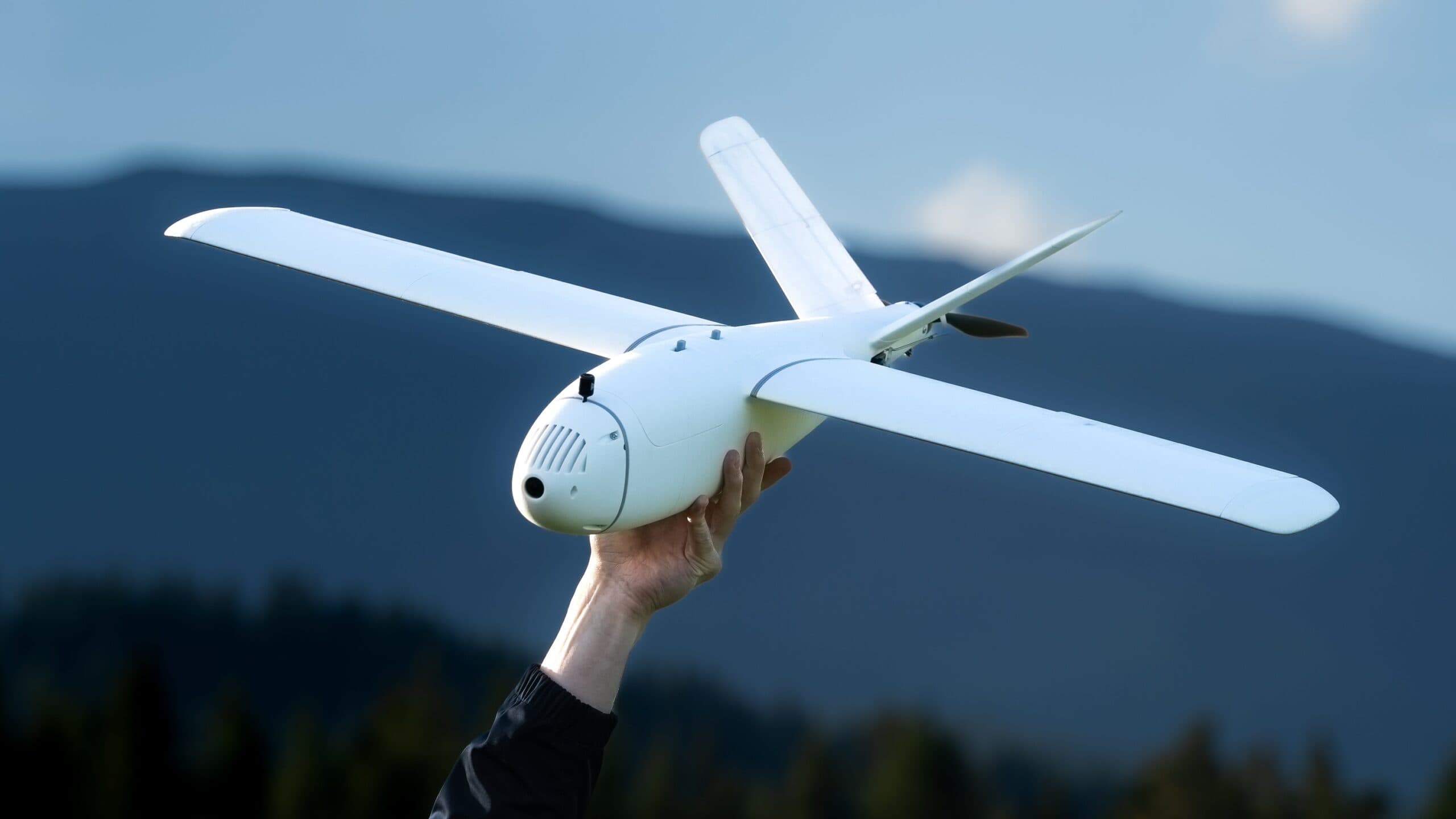

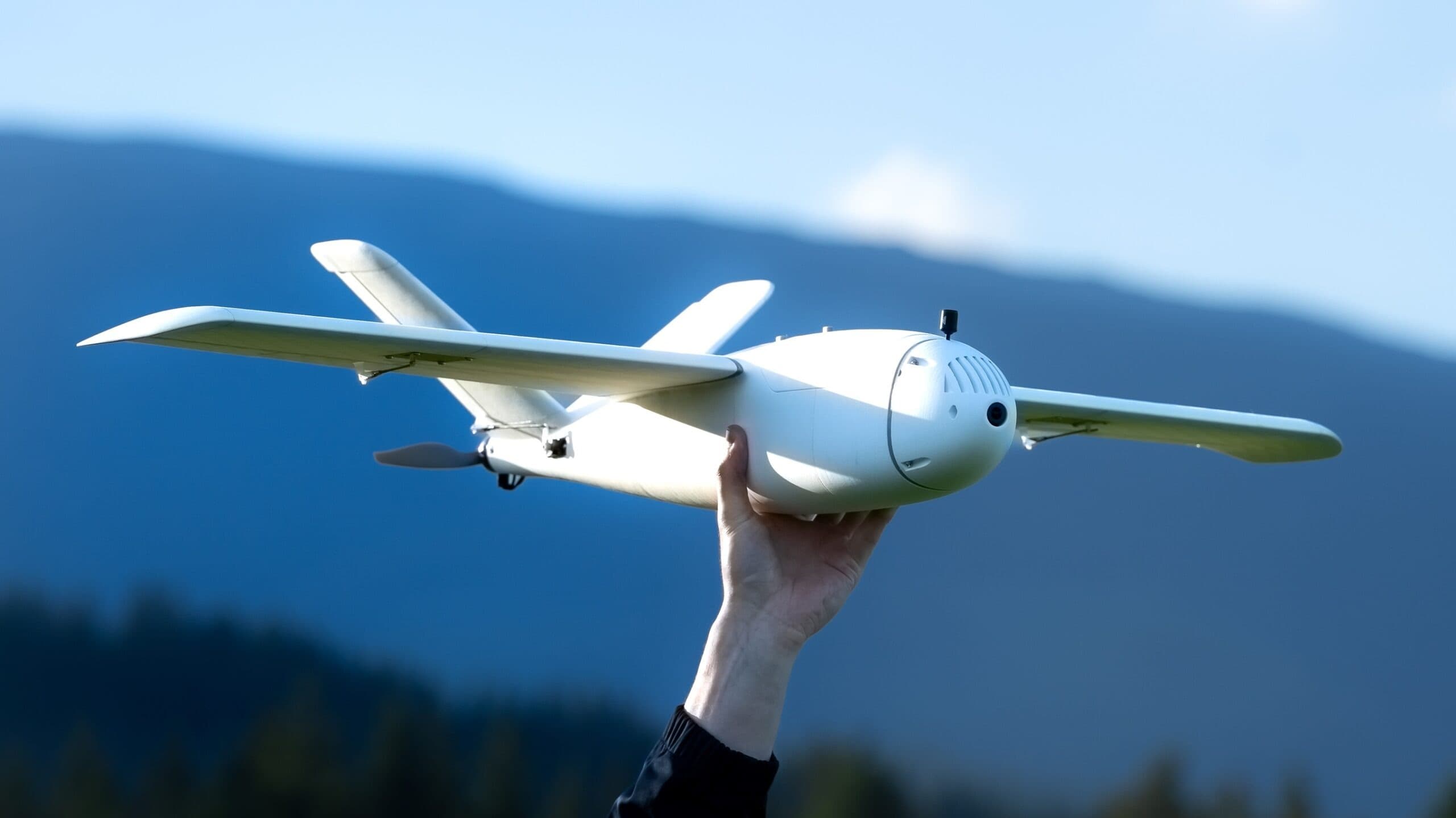

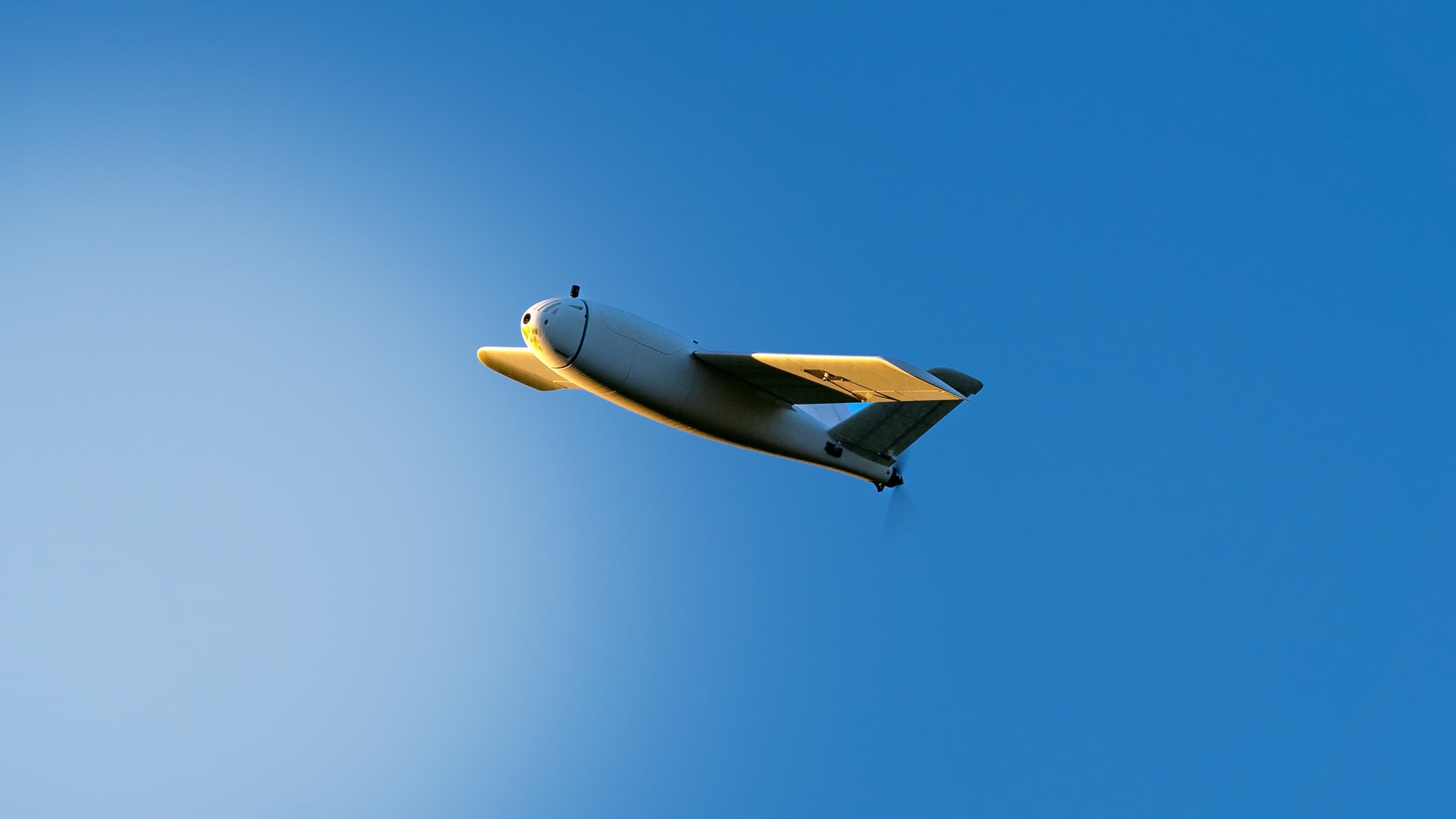

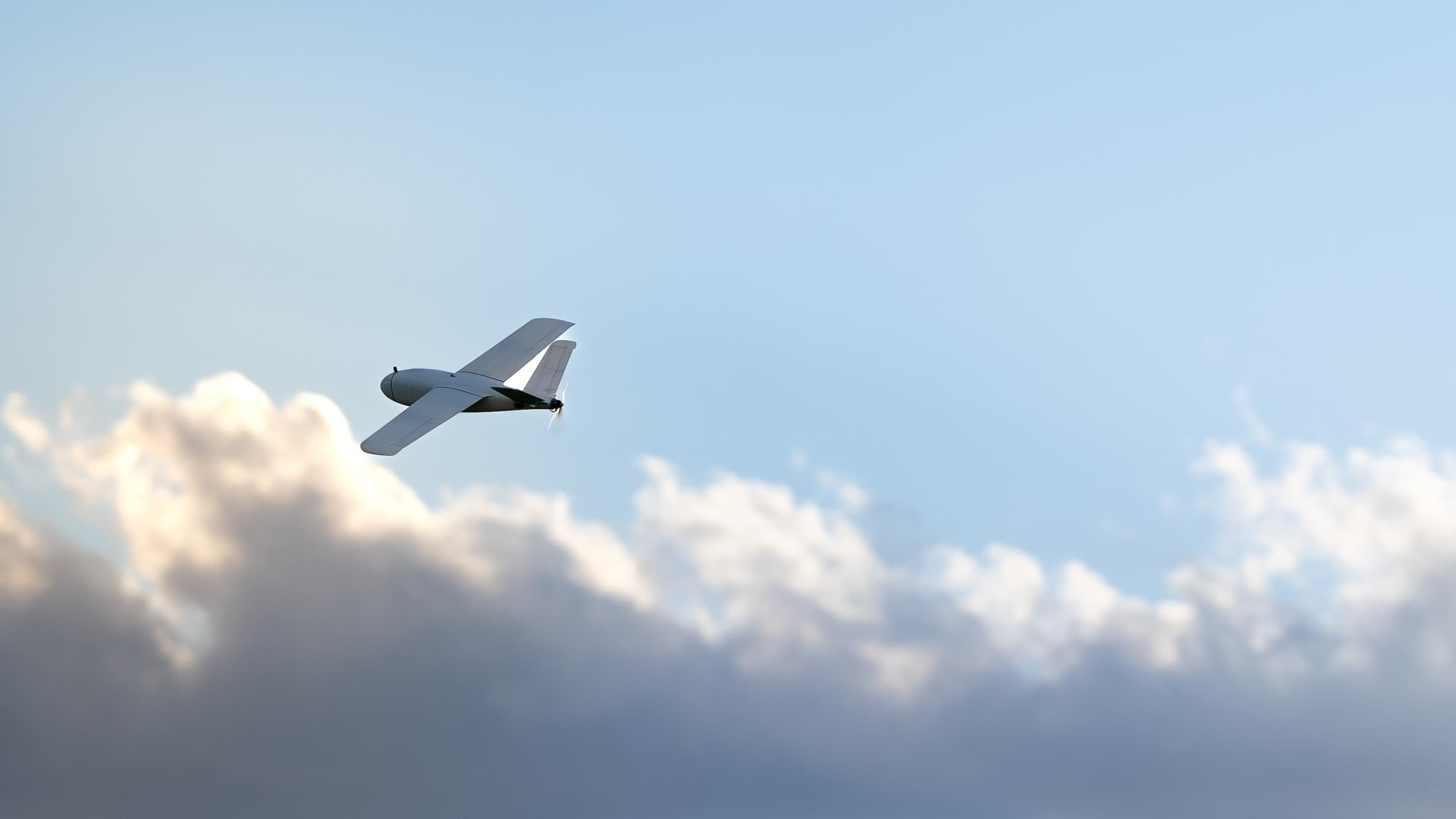

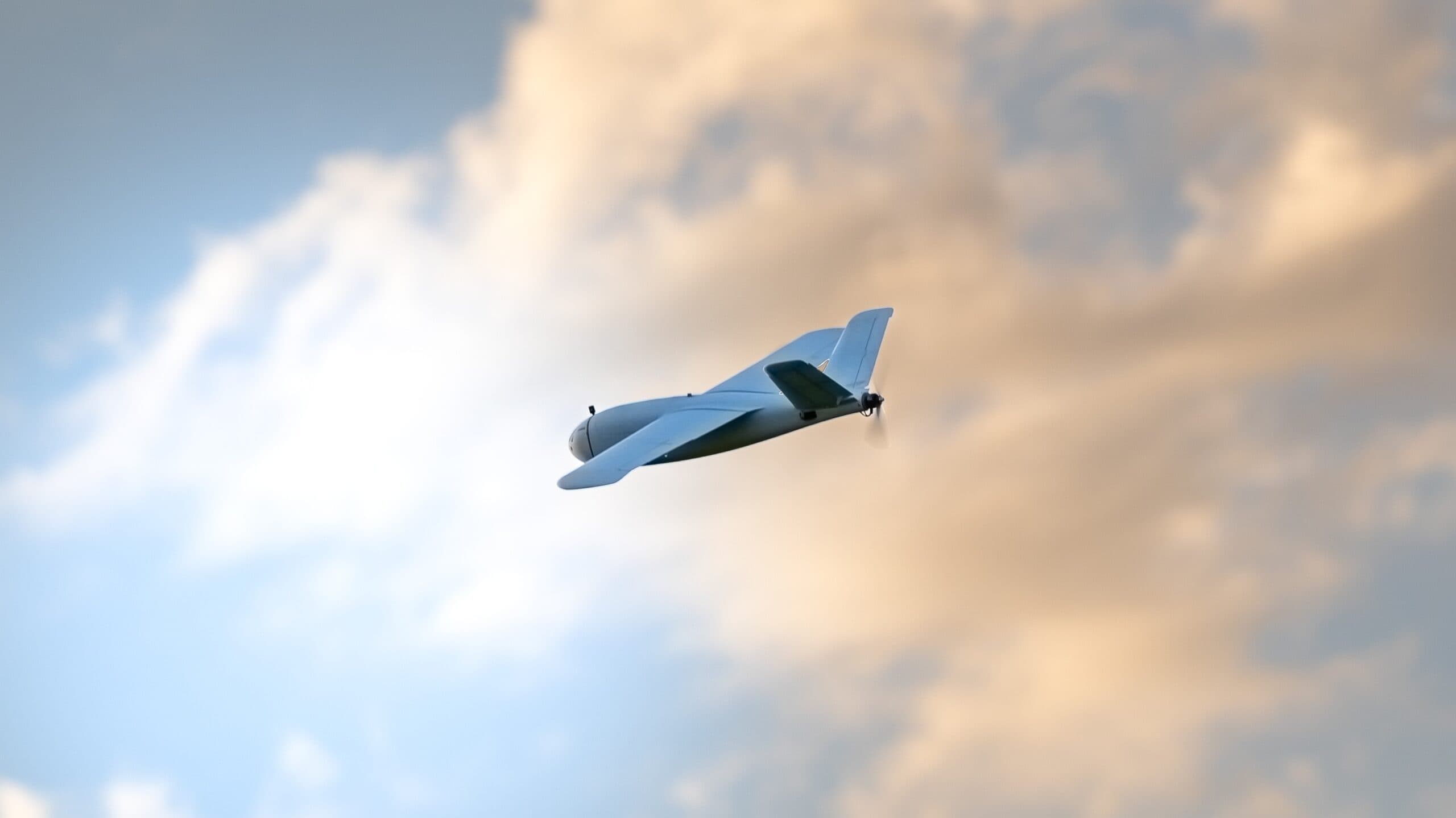

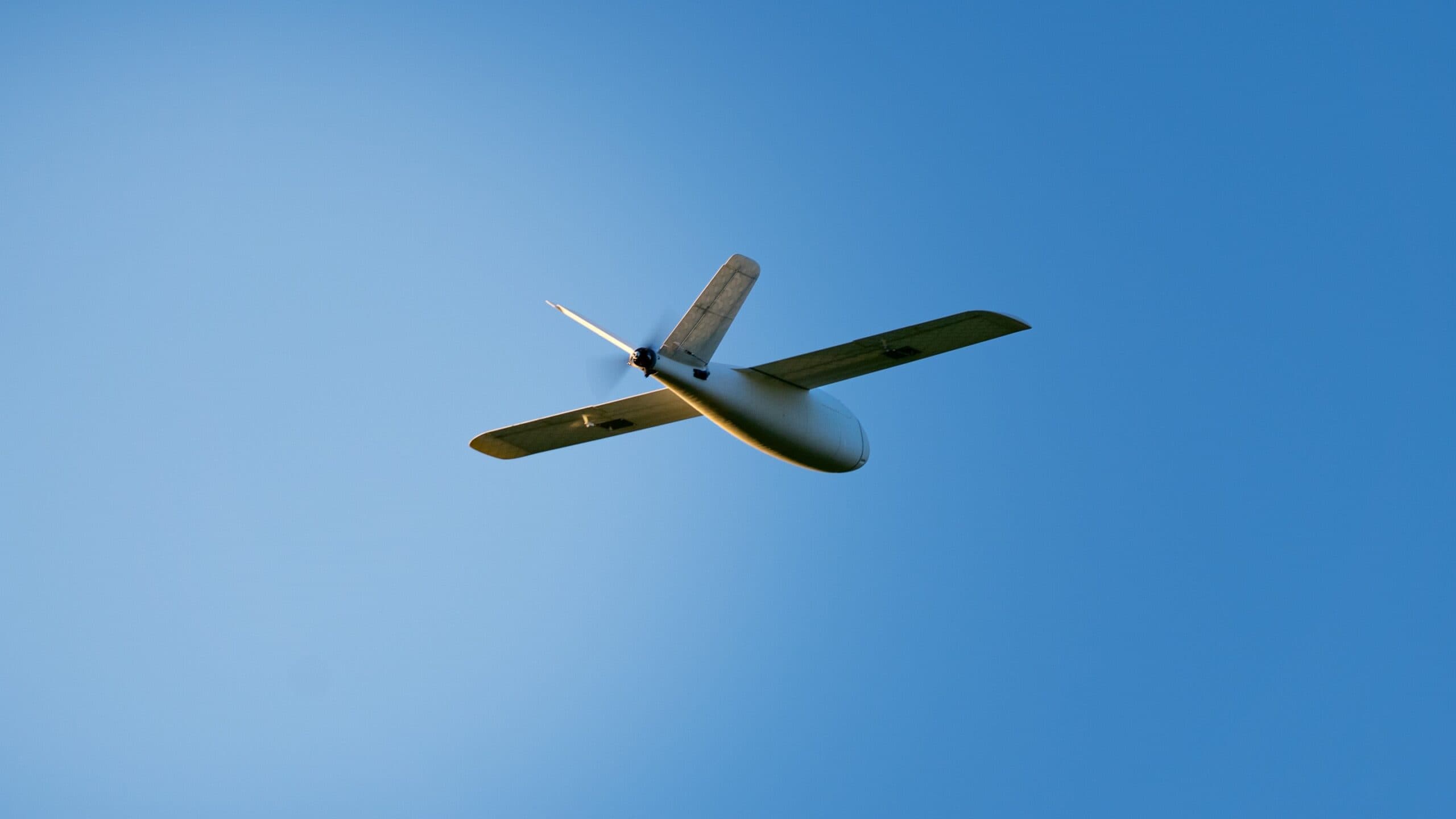

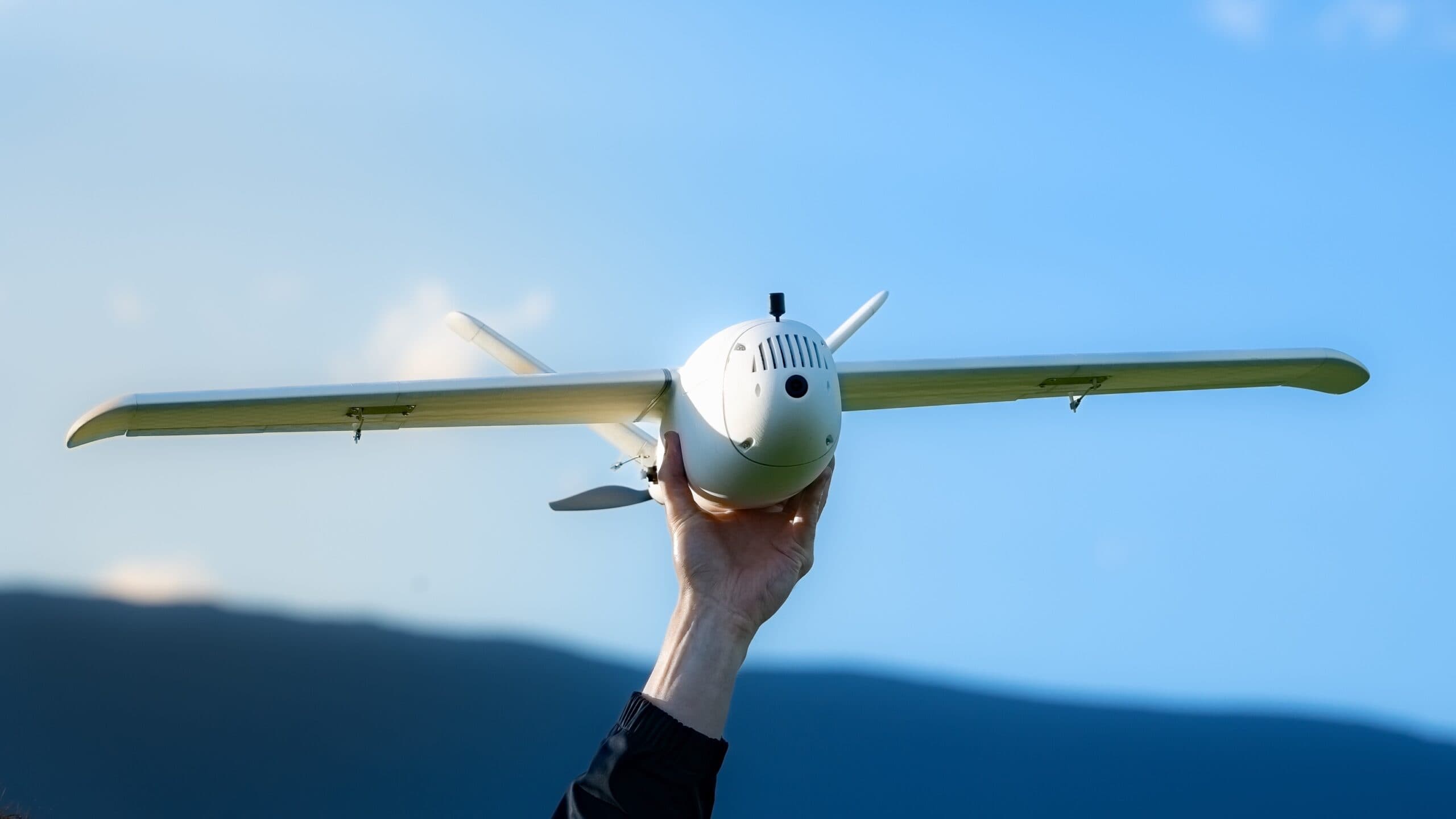

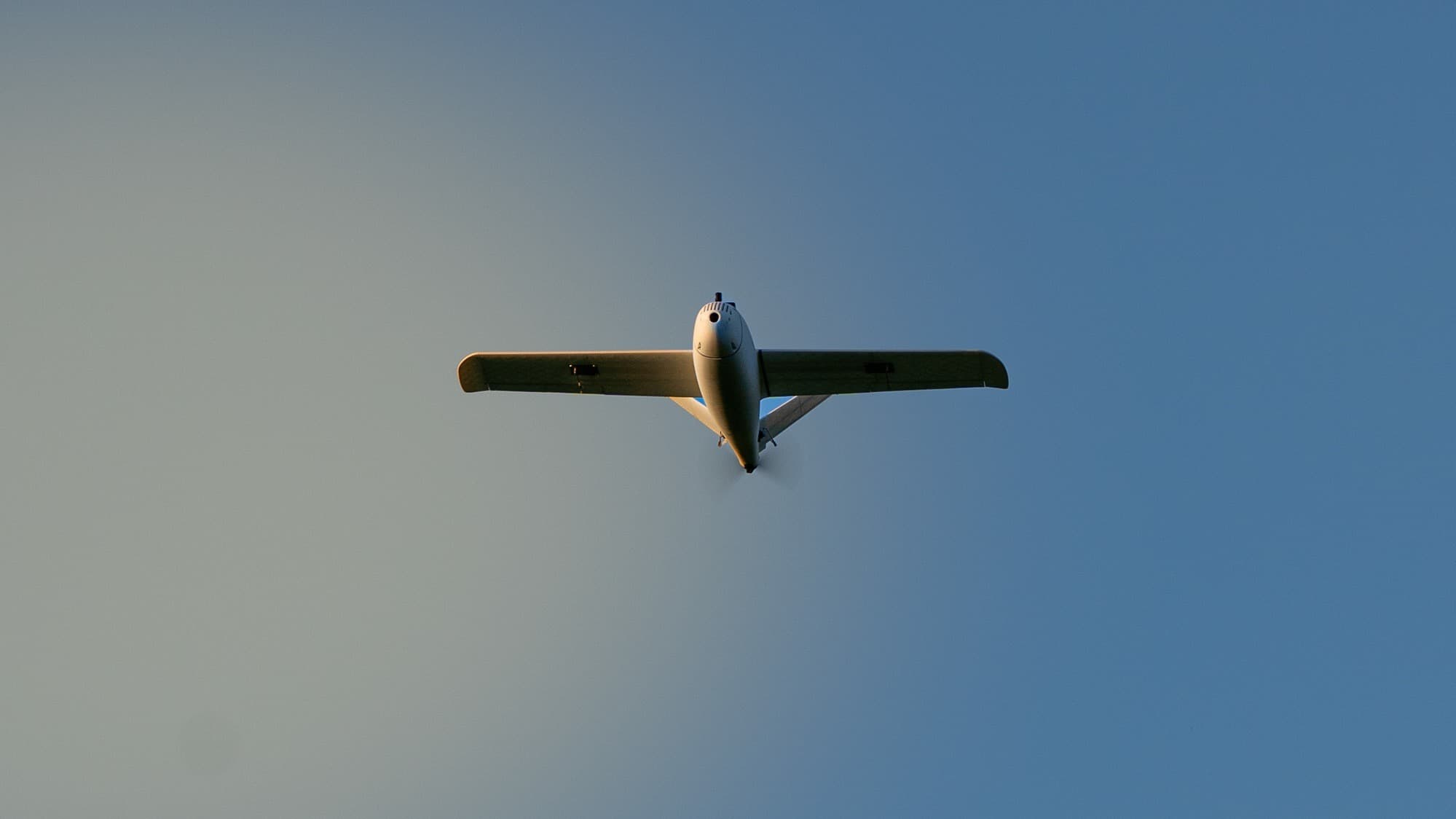

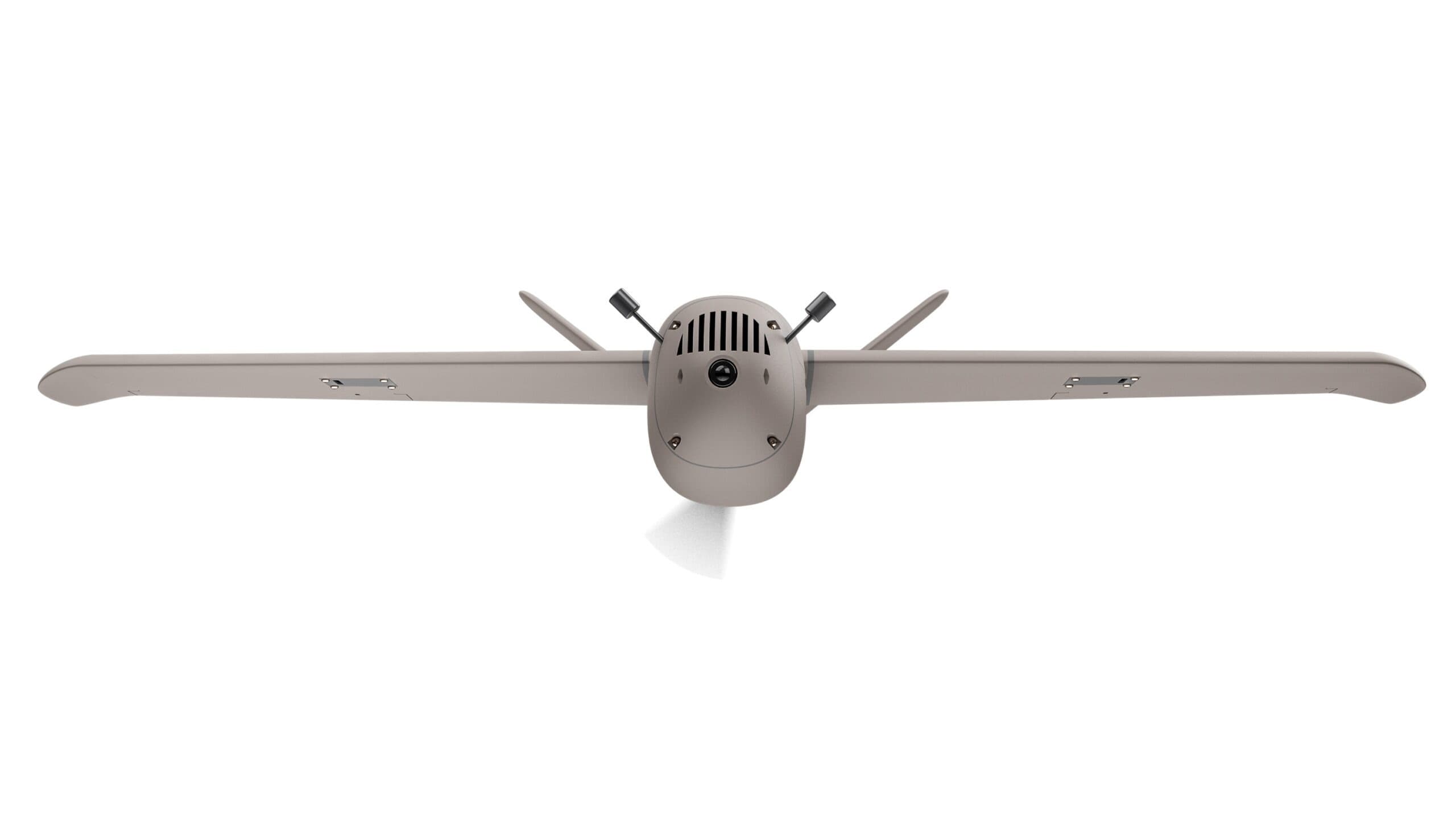

General Data The Pico Talon is a compact and practical UAV platform featuring a classic pusher layout and V-tail. Its lightweight hybrid airframe, optimized for 3D printing and reinforced with carbon tubes, provides stable flight performance while keeping the aircraft easy to transport, store, and deploy. A modular, replaceable nose section allows quick adaptation for different FPV setups, cameras and sensors, making the Pico Talon a versatile choice for everyday flying and compact mission profiles. Check assembly manual, full list of needed accessories and more tips here: STEP FILES STEP files of important parts provided for easy customization. Modify and adapt components effortlessly to suit your unique requirements. Check the full list of files in the user manual. WINGTIP OPTIONS Two wingtip variants are included: upward-curved and downward-curved, allowing you to choose the preferred look. GALLERY VIDEOS Powered by youtube embed video generator CFD RESULTS The aircraft’s geometry is optimized for high aerodynamic efficiency and stable flight. Its streamlined airframe provides balanced lift distribution while reducing drag. Based on the Selig S3021 airfoil, the aircraft remains longitudinally stable with a properly set center of gravity and produces almost no pitching moment at 0° angle of attack. Peak efficiency is achieved between 0° and 3°, matching typical cruise conditions. WIRING DIAGRAM A simplified sample wiring diagram for easier understanding of component layout and connections.  Also available in PDF within the file package. Required accessories: ITEM QUANTITY 8x500mm Carbon Tube (MAIN SPAR) link / link / link 1 6x500mm Carbon Tube (SECONDARY SPAR) link / link / link 1 3x250mm Carbon Tube (WING SPAR) link / link / link 2 3x250mm Carbon Tube (AILERON HINGE) link / link / link 2 6x170mm Carbon Tube (V TAIL SPAR) link / link / link 2 3x170mm Carbon Tube(RUDDER HINGE) link / link / link 2 Thick CA Glue link 1-2 Tubes CA Activator link 1 M3 Threaded Insert (Outer Ø5mm, height 5mm) link 19 M3x6mm Screw 12 M3x10mm Screw 13 M3x20mm Screw 2 M3x25mm Screw 2 Hot Glue (optional) link Small amount Epoxy Glue (optional) link Small amount LW-PLA / LW-ASA link / link 1 roll PC / PETG / other rigid material link / link Small amount Velcro Strap link 2 Servo Extension Cable link 2 Control Horn link 4 Pushrod link / link 4 Recommended electronics: Motor 2207 Motor e.g. T-Motor F60 1750KV link Propeller 5-7 inch Propeller link / link Flight Controller Speedybee F405 Wing or any other Mavlink FC link GPS Matek M10Q or similar GPS with compass link Servos 4x EMAX ES08 MAII Metal Gear or similar link ESC 20-40A link / link Battery 4S-6S Li-Ion / Li-Po link / link Receiver Matek R24-D ELRS or similar link FPV Camera + VTX Walksnail Avatar or any Digital or Analog VTX link / link FPV Goggles Walksnail Goggles X or any other matching the chosen VTX link Required Additional Equipment: 3D Printer Bambu Lab P2S or other with min. 220x220x200mm build volume link RC Transmitter Radiomaster TX16S or other modern RC Transmitter link Transmitter Module HappyModel ES24TX or other ELRS TX link Printing Settings: Check the specified print settings on the Print Settings Page Licensed for personal use only under: License Agreement
