MW Audio MW-5008-8: 8″ Woofer 8 ohm

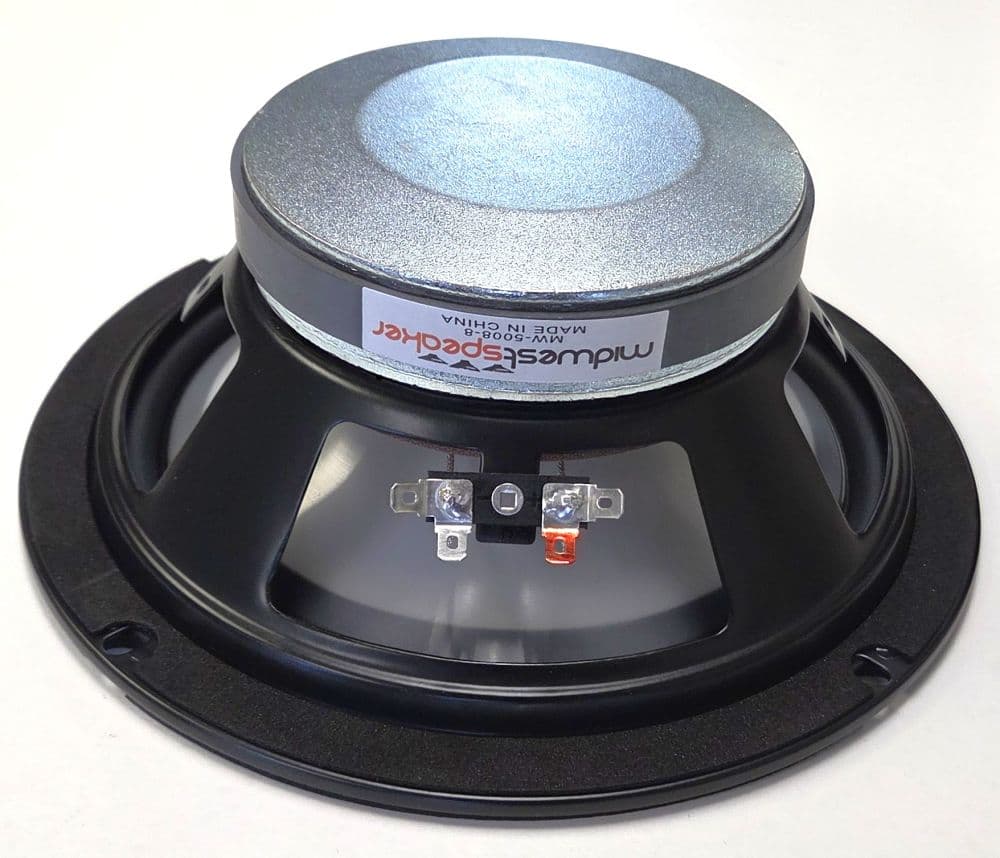

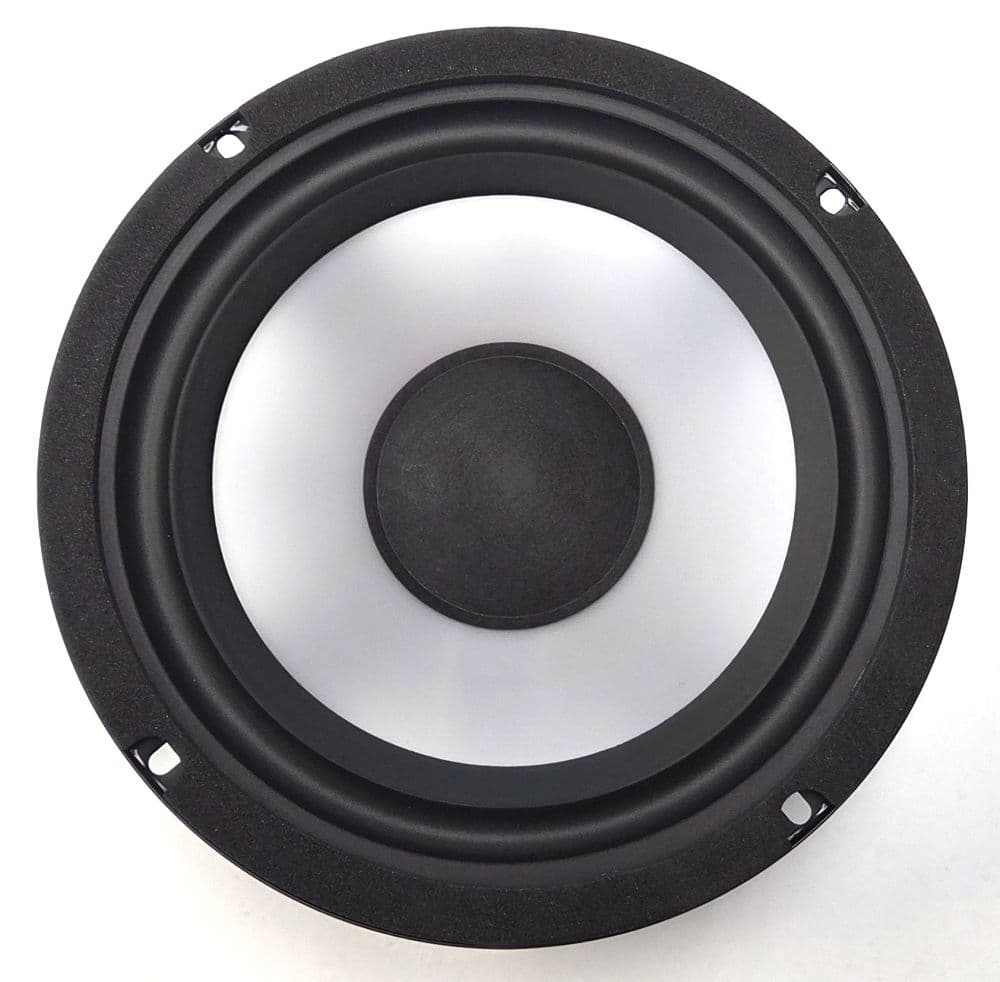

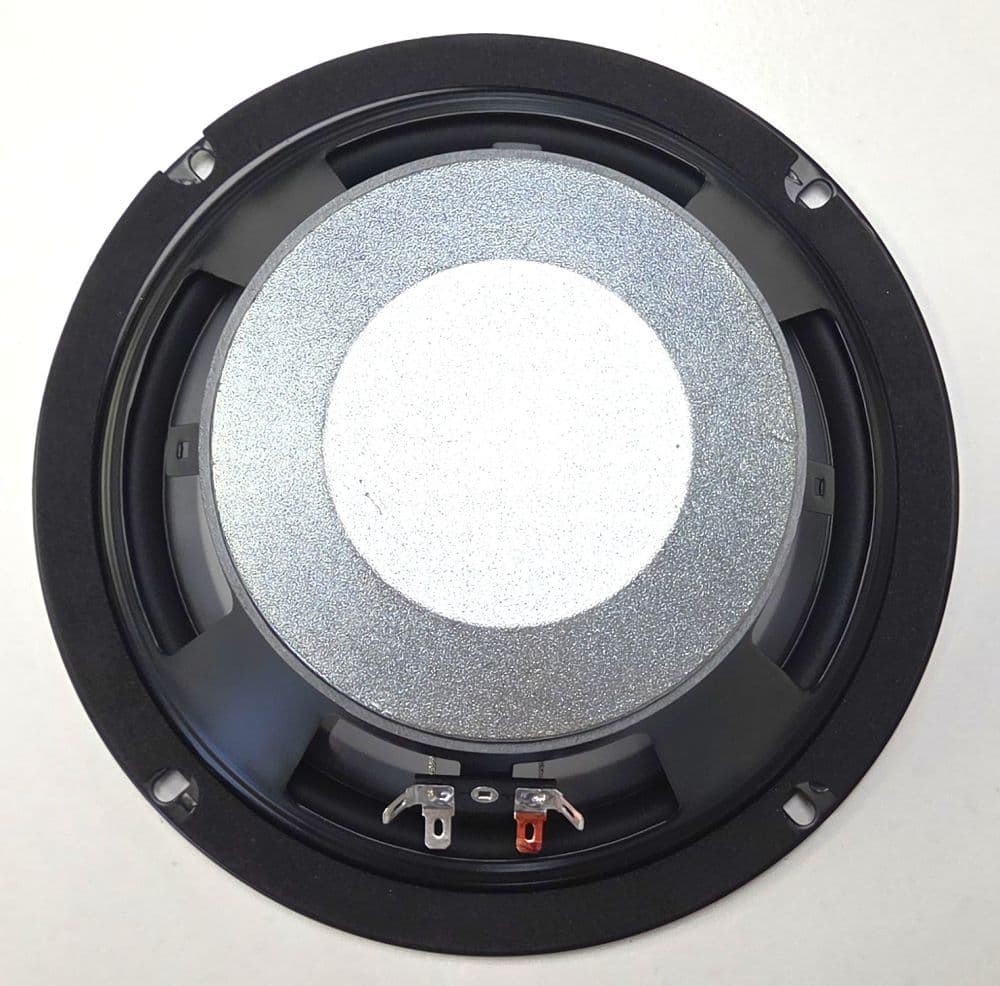

MW Audio MW-5008-8: 8″ Woofer 8 ohm This woofer is a great replacement for many Klipsch models. The screw holes match up perfect and has a stamped steel basket, clear poly cone, rubber surround and a large high power magnet. These are new current production stock. The original Klipsch woofers have been discontinued, so we had these custom made for us designed from the original Klipsch woofer. The specs were copied to ensure similar output level and sound. In comparison to the original, it is very close. Overall, it is a great reproduction of the original Klipsch woofer. Models include: – KG4 and more. Woofer Part #: – K-8-K Specifications and Small Signal Parameters: Voice Coil Impedance: 8 ohm Voice Coil Diameter: 1.52″ Rated Frequency Response: 28- 7000 Hz Sensitivity: 90.1 dB SPL (m) Rated Power: 75 watts Program Power: 150 watts Magnet Weight: 580 gr (20.46 oz) Fs: 28.2 Hz Re: 7.5 ohm Qts: 0.276 Qms: 7.887 Qes: .286 Vas: 68.5 liters Speaker Dimensions: Outside Diameter: 8.21″ Cutout Diameter: 7.11″ Internal Depth: 2.95″
