Moose

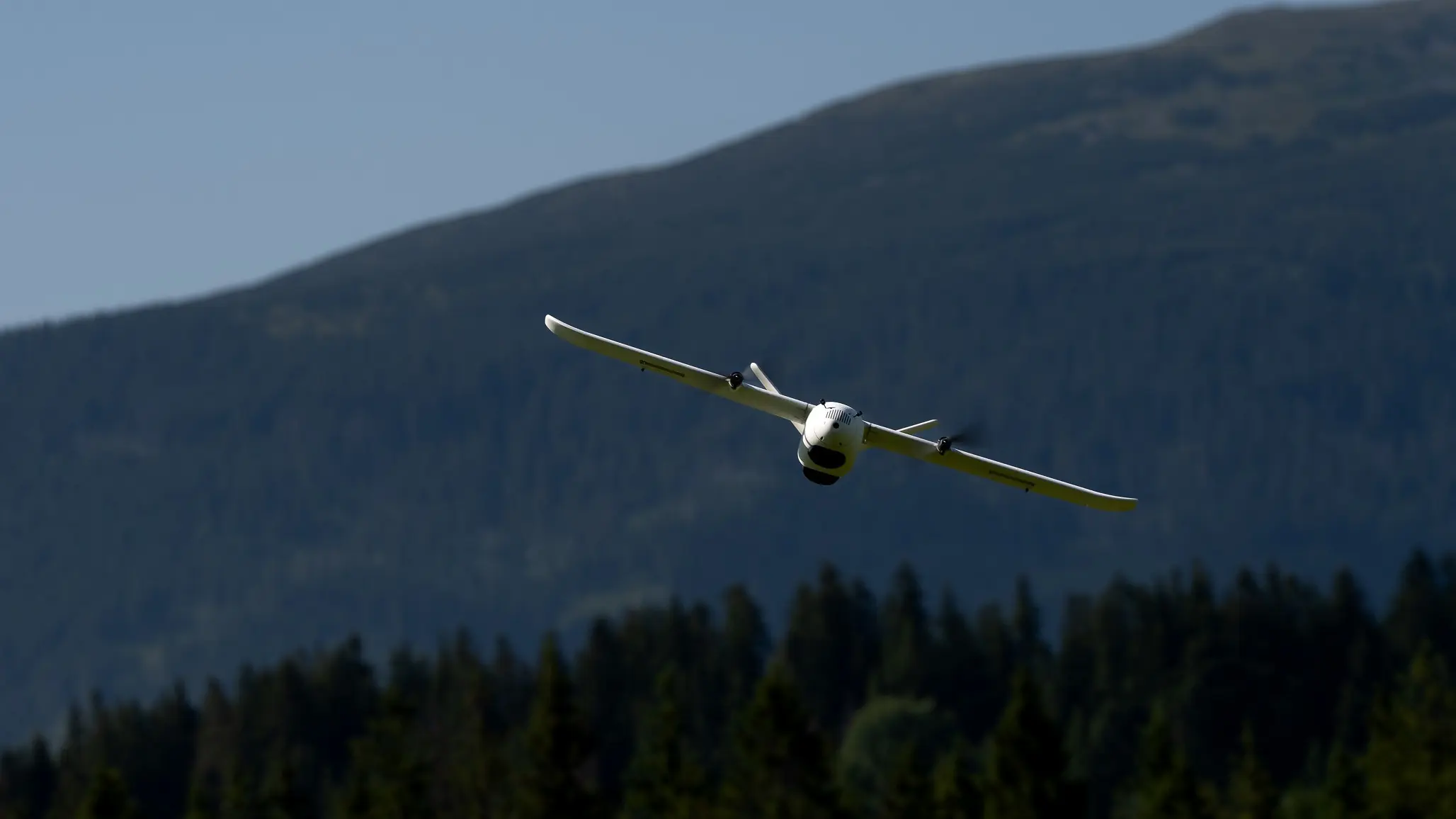

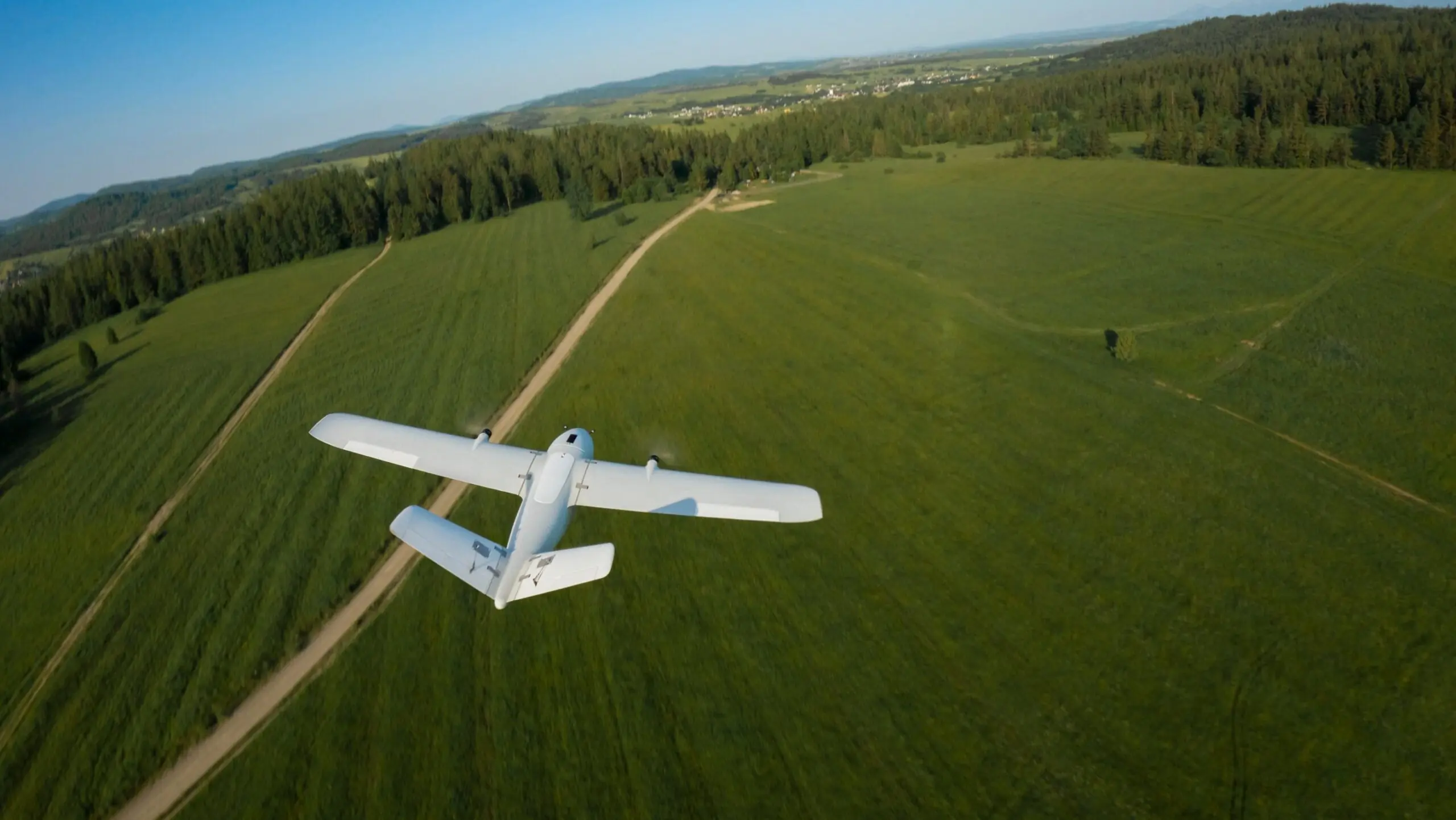

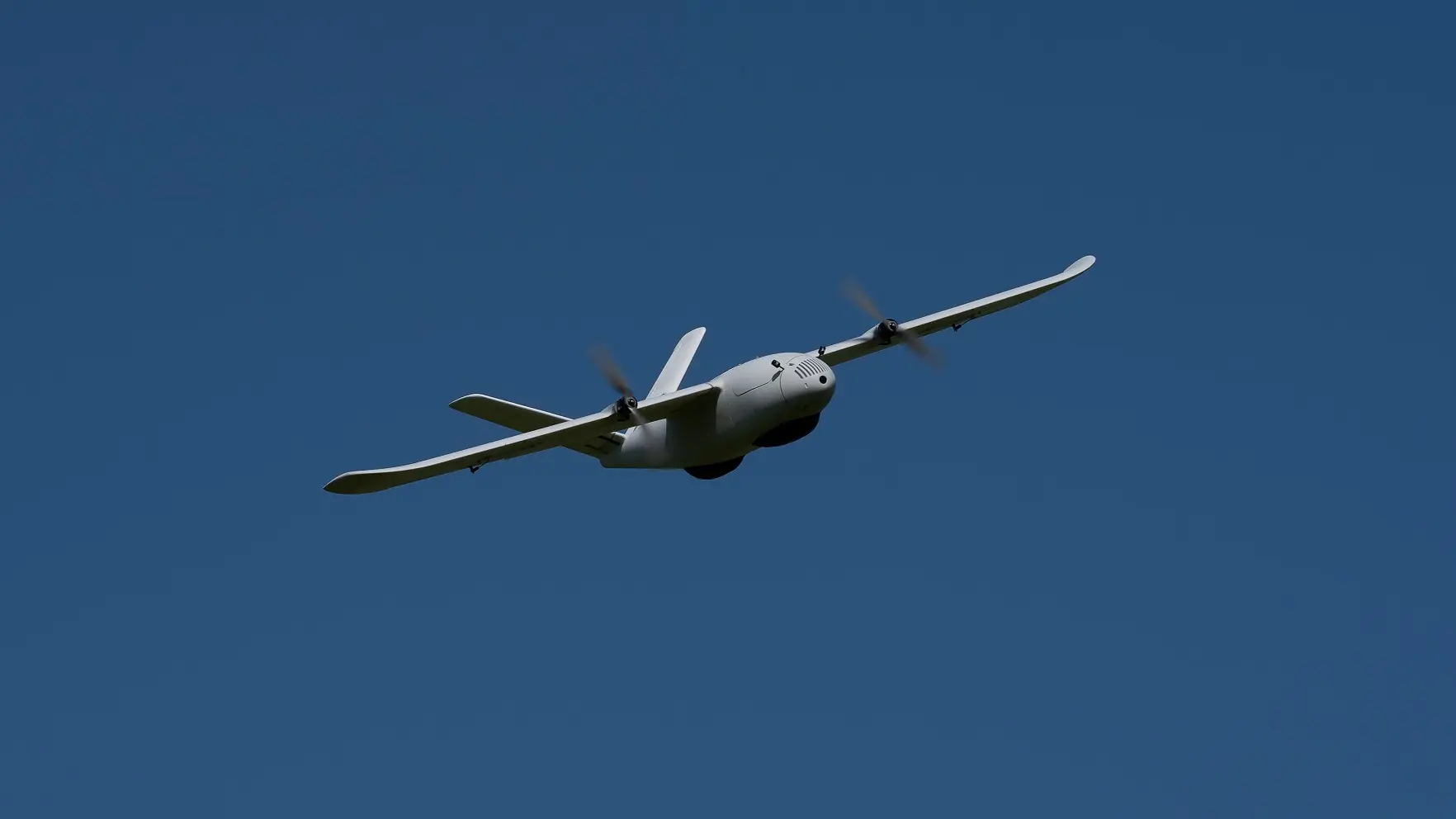

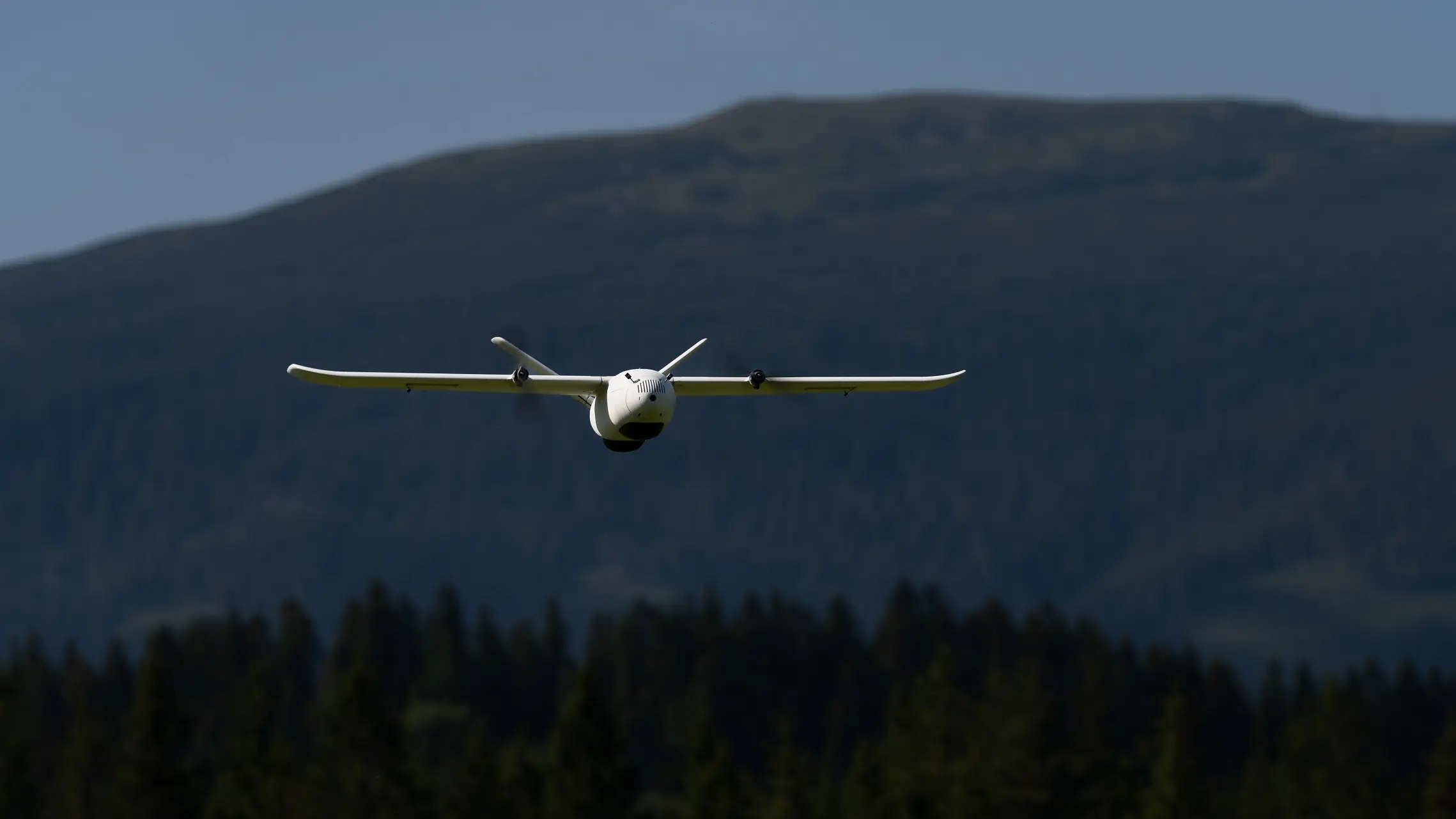

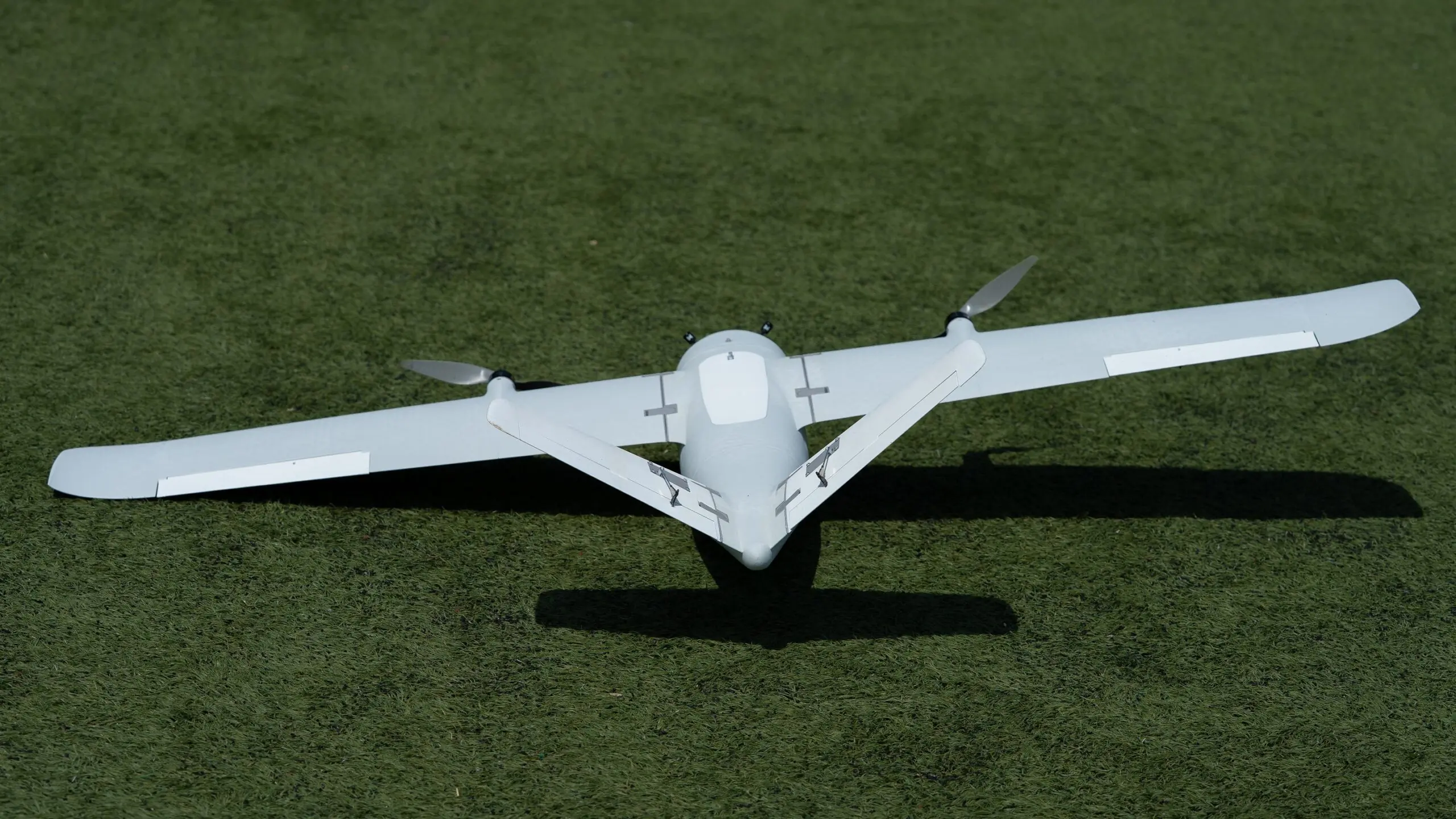

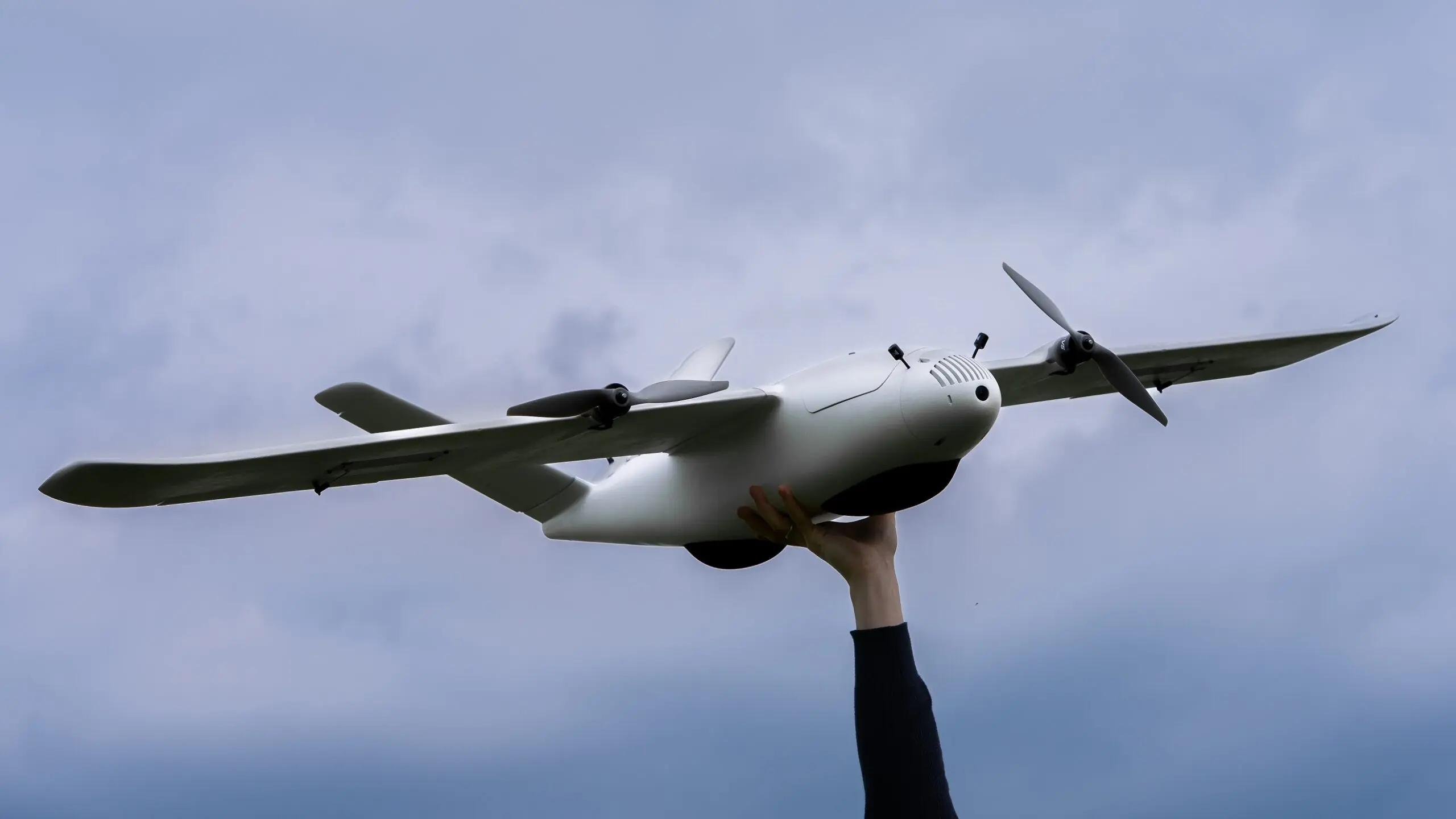

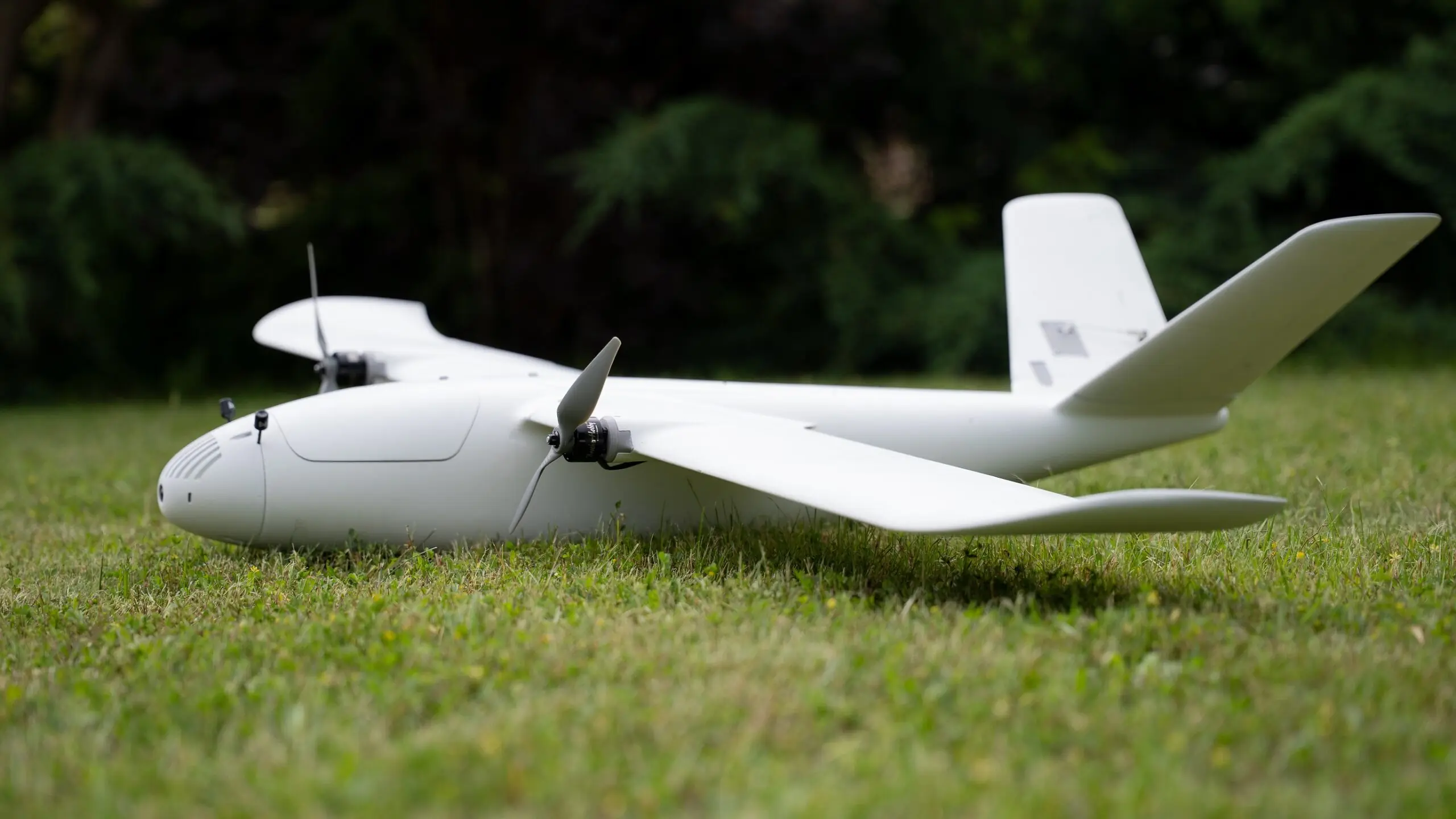

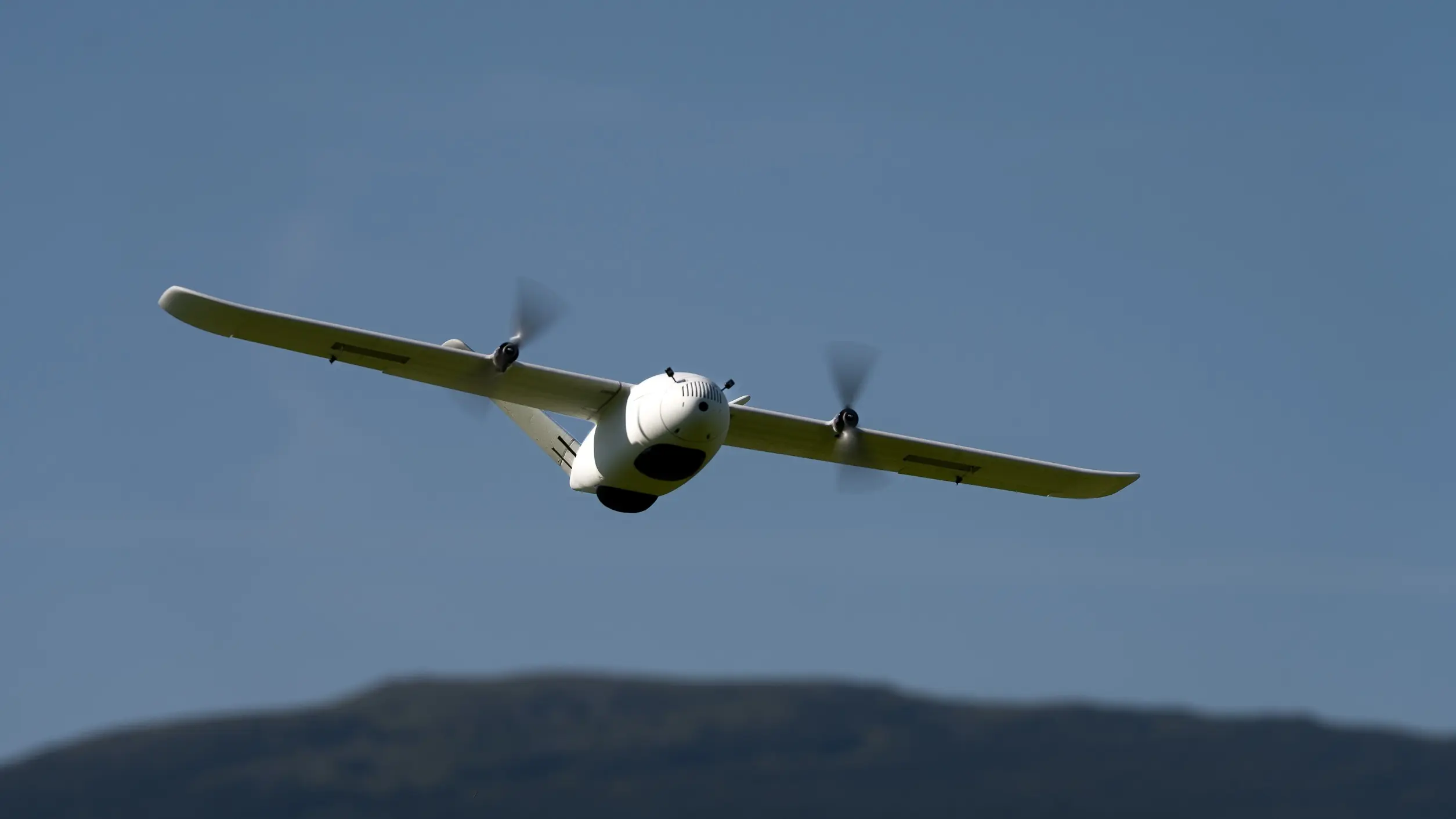

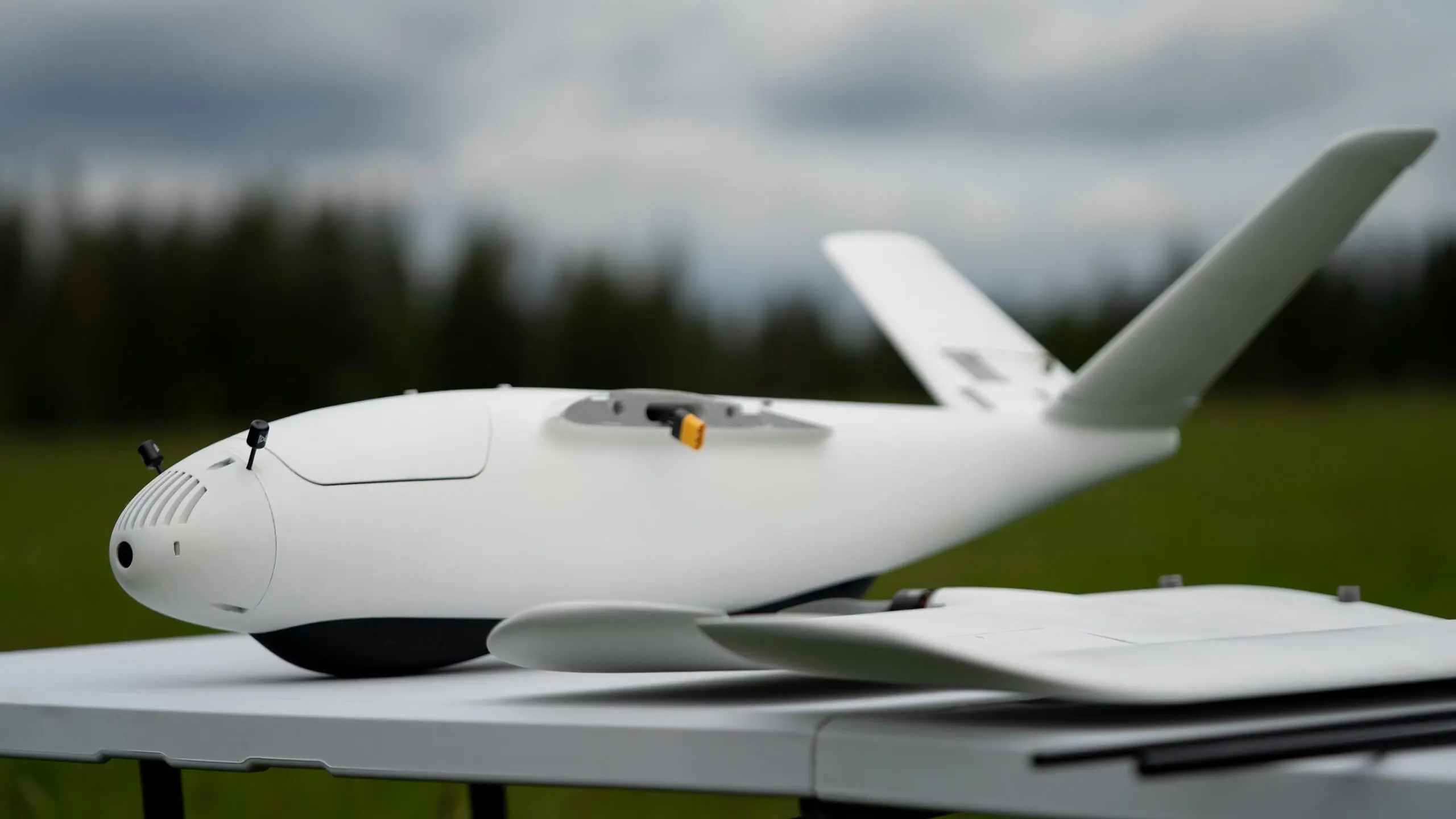

General Data The Moose is a versatile UAV featuring a classic layout with two tractor motors and a V-tail. Its hybrid 3D-printed construction combines lightweight filaments, high-strength materials, and carbon tubes reinforcement. A modular nose section allows easy customization for various missions. Designed for FPV flights with potential for aerial mapping. The spacious fuselage is arranged to accommodate a large battery, complete electronic equipment, and additional payload such as cameras and sensors. This fixed wing drone offers quick tool-free assembly of wings and tail surfaces using snap-lock fasteners. With a wingspan of 1600 mm, it combines compactness with ample usable space. Check assembly manual, full list of needed accessories and more tips here: STEP FILES STEP files of important parts provided for easy customization. Modify and adapt components effortlessly to suit your unique requirements. Check the full list of files in the user manual. PAYLOAD COMPARTMENT  Payload compartment with internal dimensions of 140 x 118 x 90 mm, located in the central fuselage near the aircraft’s center of gravity. designed to house mapping cameras, sensors, or other payload modules. Also provided in STEP format, enabling  modification and integration with custom equipment. GALLERY VIDEOS Powered by youtube embed video generator CFD RESULTS Optimized aircraft geometry ensures high aerodynamic efficiency and stability. The airframe features well-balanced lift distribution, along with a streamlined shape that minimizes aerodynamic drag. The wing uses the Selig S3021 airfoil. Proper center of gravity placement provides longitudinal stability and zero pitching moment at zero angle of attack. Maximum efficiency is achieved between 0° and 3° angle of attack, ideal for cruise flight. WIRING DIAGRAM A simplified sample wiring diagram for easier understanding of component layout and connections.  Also available in PDF within the file package. Required accessories: ITEM QUANTITY 10x1000mm Carbon Tube (MAIN SPAR) link / link / link 1 8x1000mm Carbon Tube (SECONDARY SPAR) link / link / link 1 6x500mm Carbon Tube (WING SPAR) link / link / link 2 3x500mm Carbon Tube (AILERON HINGE) link / link / link 2 8x285mm Carbon Tube (V TAIL SPAR) link / link / link 2 6x130mm Carbon Tube(V TAIL SPAR) link / link / link 2 3x270mm Carbon Tube (RUDDER HINGE) link / link / link 2 Thick CA Glue link 1-2 Tubes CA Activator link 1 M3 Threaded Insert (Outer Ø5mm, height 5mm) link 20 (+ 8 optional) M3x6mm Screw 20 (+ 8 optional) M3x10mm Screw 4 Hot Glue (optional) link Small amount Epoxy Glue (optional) link Small amount LW-PLA / LW-ASA link / link 1 roll PC / PETG / other rigid material link / link Small amount TPU (optional) link / link Small amount Small Torsion Spring with Pin 8 Velcro Strap link 2 Servo Extension Cable link 4 Control Horn link 4 Pushrod link / link 4 MR60 Connector (optional) link 2 MR30 Connector (optional) link 2 Recommended electronics: Motors 2x 28XX Motor e.g. BrotherHobby Avenger 2812 V5 910KV link / link Propellers 9-10 inch Propellers (one CW, one CCW) link / link Flight Controller Speedybee F405 Wing or any other Mavlink FC link GPS Matek M10Q or similar GPS with compass link Servos 4x EMAX ES08 MAII Metal Gear or similar link ESC 2x 35-60A link / link Battery 4S-6S Li-Ion / Li-Po link / link Receiver Matek R24-D ELRS or similar link FPV Camera + VTX Walksnail Avatar or any Digital or Analog VTX link / link FPV Goggles Walksnail Goggles X or any other matching the chosen VTX link Required Additional Equipment: 3D Printer Bambu Lab P2S or other with min. 220x220x200mm build volume link RC Transmitter Radiomaster TX16S or other modern RC Transmitter link Transmitter Module HappyModel ES24TX or other ELRS TX link Printing Settings: Check the specified print settings on the Print Settings Page Licensed for personal use only under: License Agreement
