(LM-010-A-ASSY-1.0) 10 Series Roller Wheel Bracket Assemblies & hardware – 1.0″

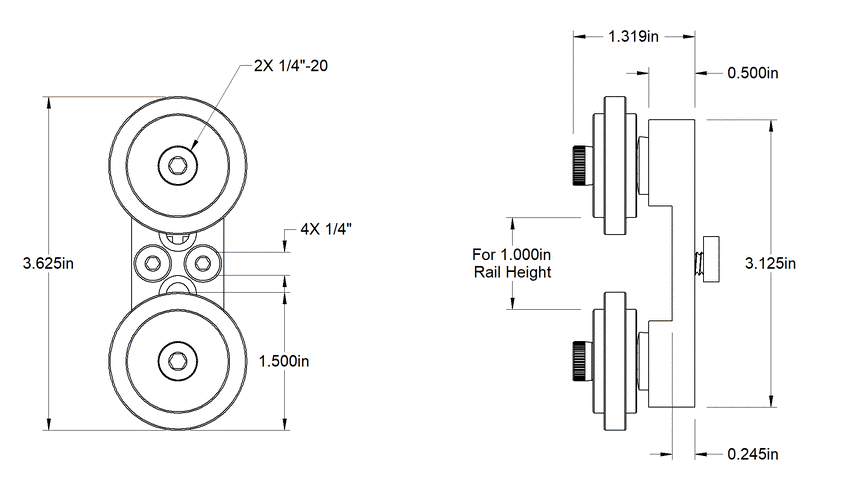

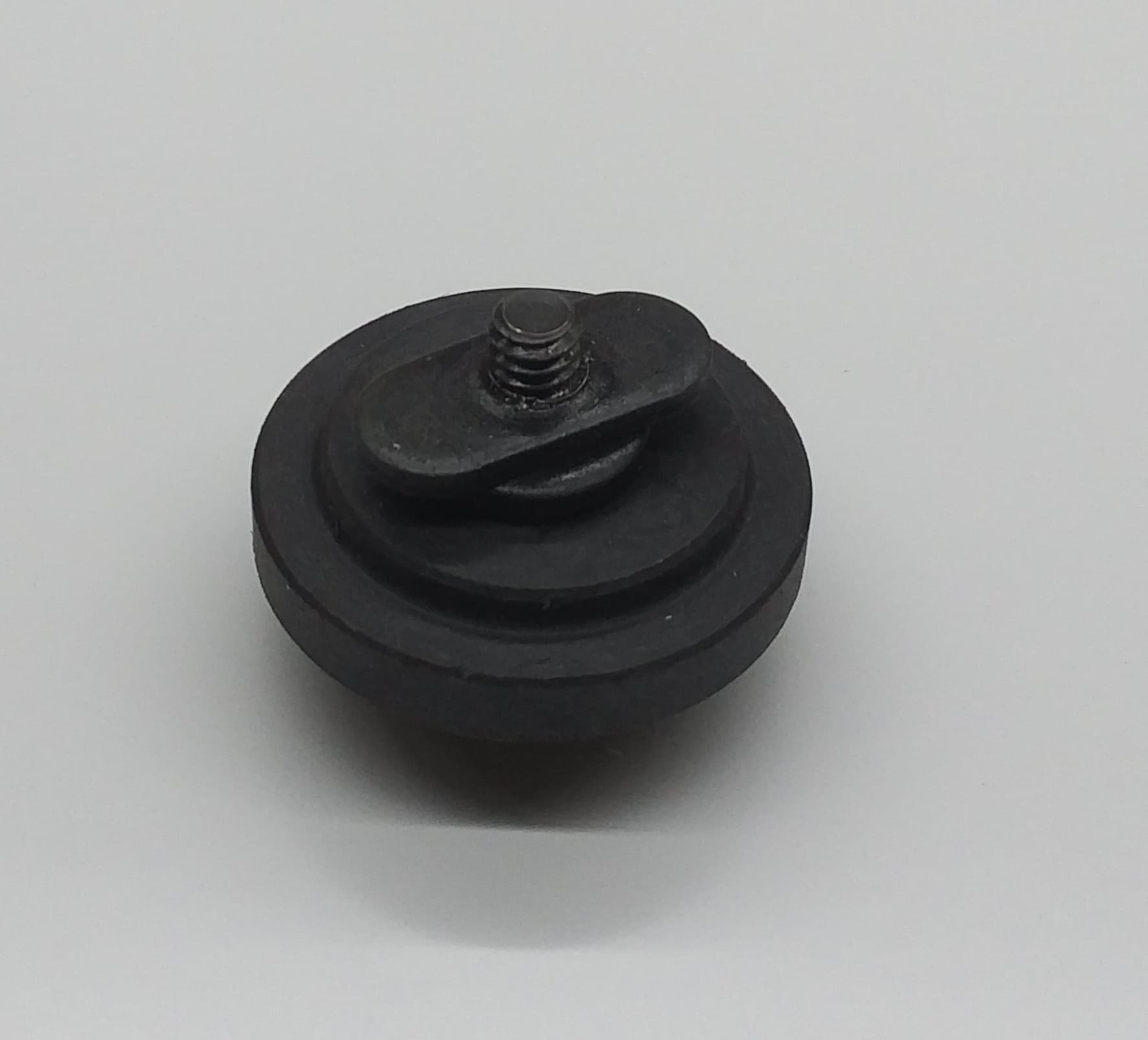

10 Series Roller Wheel Bracket Assemblies & hardware – 1.0″ – #LM-010-A-ASSY-1.0 These roller wheel assemblies are 100% equivalent to the following manufacturers: 80/20 #2751 T-SLOTS #655473 McMaster #47065T973 The roller wheel is made with very high strength Nylatron and come with a permanent lubricated bushing. They fit in all the 10 Series (1.0″), 25 Series (25mm) and 6mm slot wide extrusions. The large diameter is Ø1.5″, and the smaller diameter is Ø1.125″.  The total width of the wheel is 0.480″. The shoulder screw as well as washer (spacer) and standard 1/4-20 Standard T-Nut are also included. The assemblies are designed to attach to 1″ wide t-slotted extrusions. These parts are BRAND NEW, and are deeply discounted from the list price.
