Insulon® Vacuum Jacketed Hose, High Pressure, Standard, 1/2″ ID

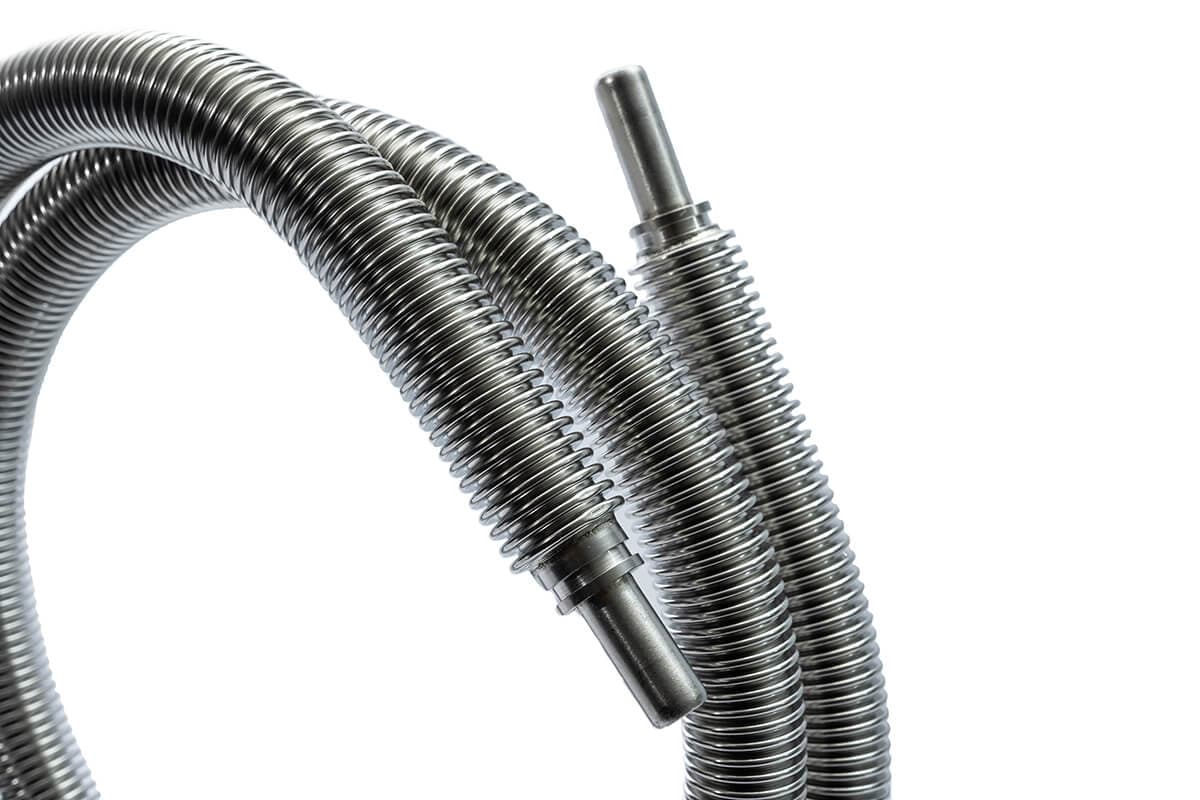

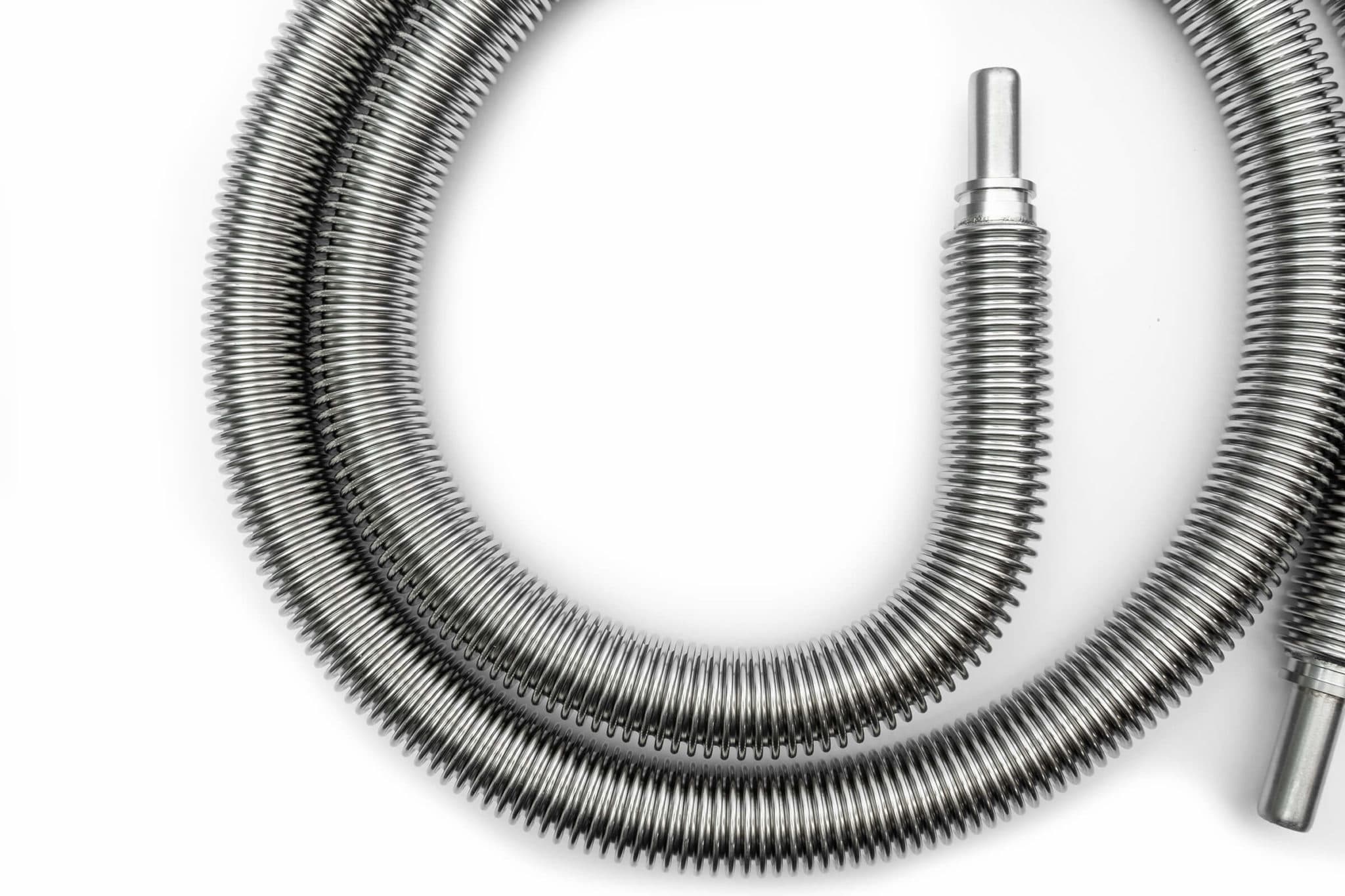

Insulon® Vacuum Jacketed Hose, High Pressure, Standard, 1/2″ ID. Standard vacuum insulation maintains a high-vacuum annulus between the inner corrugated bore tube and the outer jacket, eliminating convection and conduction heat transfer. Delivers exceptional thermal performance in the most compact, low-profile form factor in the Insulon® hose product line. Recommended for: most cryogenic transfer applications, chiller fluids to -80°C, transient cryogenic flow (seconds/minutes), liquid CO2, and applications where minimal outer diameter is required. High Pressure Insulon® hose rated to 750 psi at RT (≤100°F / 38°C). MAWP decreases as fluid temperature increases above 100°F; see derating table below. Typical applications: high-pressure cryogenic transfer, propulsion test stands, industrial process lines, hydrogen service at elevated pressures, liquid hydrogen aerospace propellant lines. Compatible Fluids for Insulon® Vacuum Jacketed Hose Cryogenic liquids: liquid nitrogen (LN2), liquid helium (LHe), liquid argon (LAr), liquid oxygen (LOX), liquid natural gas / liquid methane (LNG / LCH4), liquid CO2 Hydrogen: liquid hydrogen (LH2) and gaseous hydrogen (GH2). Fully annealed materials resist hydrogen embrittlement. Thermal fluids and coolants: glycol/water mixtures, Syltherm 800, Syltherm XLT, Dowtherm Q, Dowtherm J, other synthetic heat transfer fluids, cryo-chiller fluids High-temperature fluids: steam, hot air, exhaust gases, process heating oils Specialty and process gases: GN2, GHe, GAr; semiconductor precursor, carrier, and deposition gases Corrosive media: add a fluoropolymer liner (PTFE, PFA, FEP) for broad compatibility with corrosive process fluids If system pressure at operating temperature exceeds MAWP, contact Concept Group engineering. Insulon® Hose MAWP by Fluid Temperature, 1/2″ ID, High Pressure MAWP is constant from cryogenic temperatures through room temperature (≤100°F / 38°C). For fluid temperatures above 100°F, use the derating table below. Round UP to the next 100°F row for conservatism (e.g., a 320°F system uses the 400°F row). Max Fluid Temp (°C) Max Fluid Temp (°F) MAWP (psi), 1/2″ ID 38 100 750 93 200 682 149 300 637 204 400 585 260 500 577 316 600 570 371 700 555 427 800 547 482 900 510 538 1000 350 593 1100 228 649 1200 143 704 1300 93 760 1400 48 816 1500 39 Optional Add-Ons End fittings: Options include but are not limited to Compression Adapters (BSPT, NPT); Compression Reducers; Compression Unions (Straight, Elbow 45-deg, Elbow 90-deg, Tees); Flanges (ANSI, CF, KF, QF); Flared Swivel Nuts (CGA-295 Brass, CGA-295 Stainless Steel, JIC 37-deg, Precision AN 37-deg, SAE 45-deg); Metric (M16x1, M24x1.5, M30x1.5, M38x1.5); Tri-Clamp; VCR; and more. Add fluoropolymer liner (PTFE, PFA, FEP) for applications that require a smooth internal bore and/or non-metallic wetted surfaces Add outer braid for rugged applications that require additional protection against abrasion Pressure test certificates available as add-on Oxygen cleanliness certificates available as add-on
