Imatest Stray Light LED Source

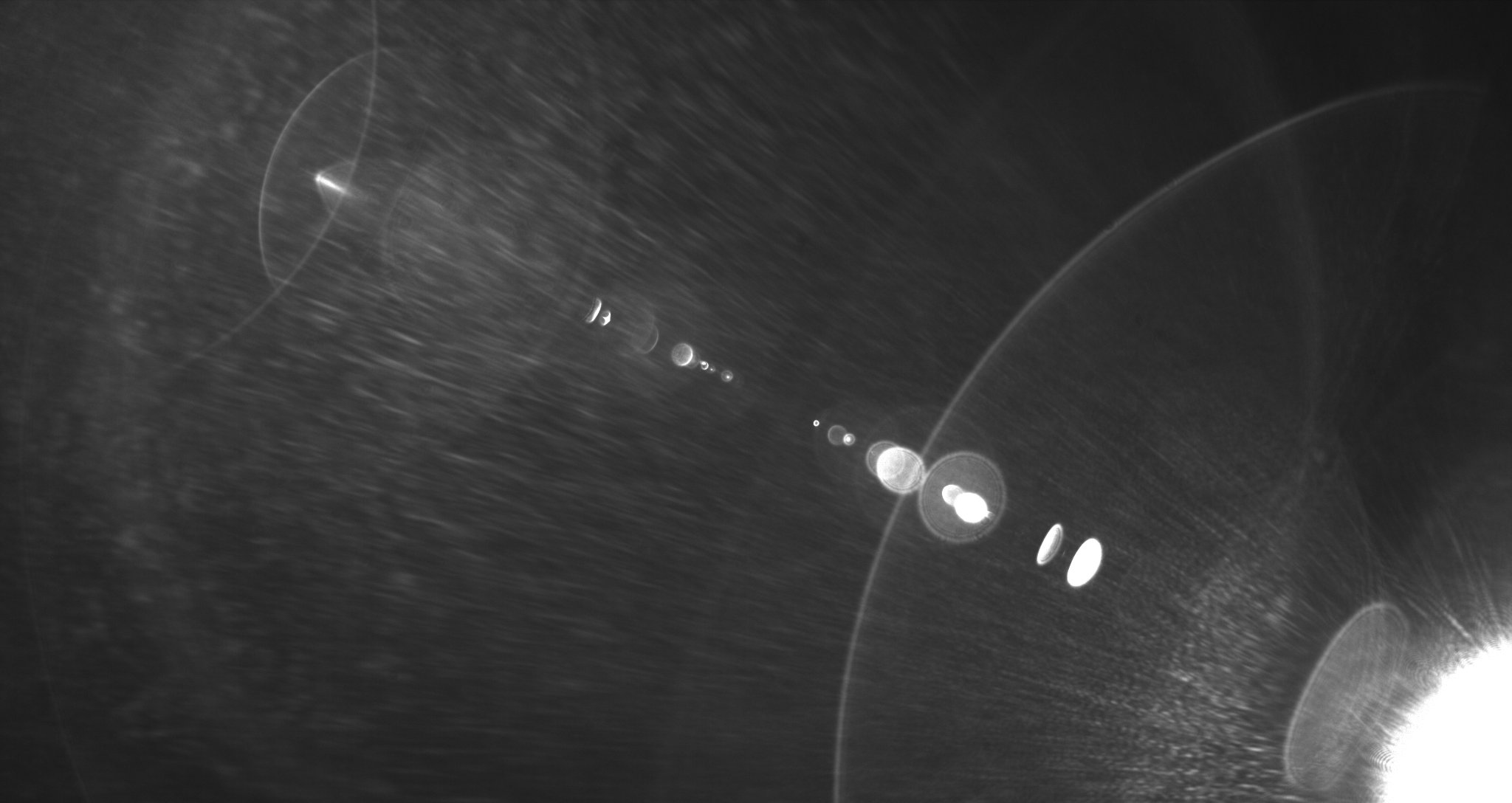

Imatest Stray Light LED Source Features Small source angular size for high resolution stray light measurements and detailed characterization of stray light, including diffraction spikes, ghosting, and veiling glare Spatially uniform collimated beam benefits repeatability of measurements Designed for low internal reflections (e.g., no halo) by intentionally underfilling the collimating lens with light Adjustable intensity/brightness Adjustable lens focus, allowing for both collimated or diverging beams Includes constant current LED driver for powering LED; TEC & fan powered by AC adapters Notable Improvements Over Previous Generation We’ve redesigned out Stray Light LED Source to bring significant improvements in technical performance and capability: Smaller source size reveals higher frequency stray light artifacts, providing higher resolution images of stray light in the camera Improved collimation and significantly improved spatial uniformity of the output beam, providing better test repeatability and control Introduced brighter white LED and new options for NIR LEDs (850nm and 940nm)     Mounting Info The Imatest Stray Light LED Source offers three versatile mounting options to suit different setups.  Click the variation link to see the mounting plate drawing. BTS: Includes a base plate designed for direct attachment to the Benchtop Test Stand.  MTS: Features a base plate for secure mounting to the Lightbox Shelf of the Modular Test Stand.  Tripod: Equipped with a 1/4-inch connecting plate and a 1/4-20 tapped hole, compatible with most standard tripods.   ISL-LED-V2 Info Sheet upLED Constant Current LED Driver Manual Specifications Details Angular Diameter The projected point image has an angular diameter of 0.11° Beam Diameter The uniform area of the beam has a diameter of 20-25 mm within 1 meter when collimated, with the ability to achieve larger beam diameter by adjusting the lens focus to output a diverging beam. At max divergence, the uniform area has a diameter of 50 mm at 1 meter away.   Beam Divergence Adjustable collimation/focus with theoretical minimum half divergence angle of 0.055° Beam Intensity & Spectrum White LED, 5700K: Measured spectral irradiance Measured illuminance: ~300lux (max) Measured irradiance (380-780nm): ~1.3 W/m2 (max) Measured CCT: ~6500K NIR LED, 850nm: Measured spectral irradiance Measured irradiance (750-950nm): ~1.4 W/m2 (max) NIR LED, 940nm: Measured spectral irradiance Measured irradiance (800-1000nm): ~1.4 W/m2 (max) Design Testing Distance Up to 1 meter Light Source Dimensions 204mm x 94 mm x 75 mm (8.03” x 3.7” x 2.95”) Programmable Power Supply Dimensions 93.2mm x 52.5mm x 27 mm (3.67” x 2.07” x 1.06”)  Weight Light source: 2.3 Kg (5 lbs) | Programmable Power Supply: 70 g (0.15 lbs)
