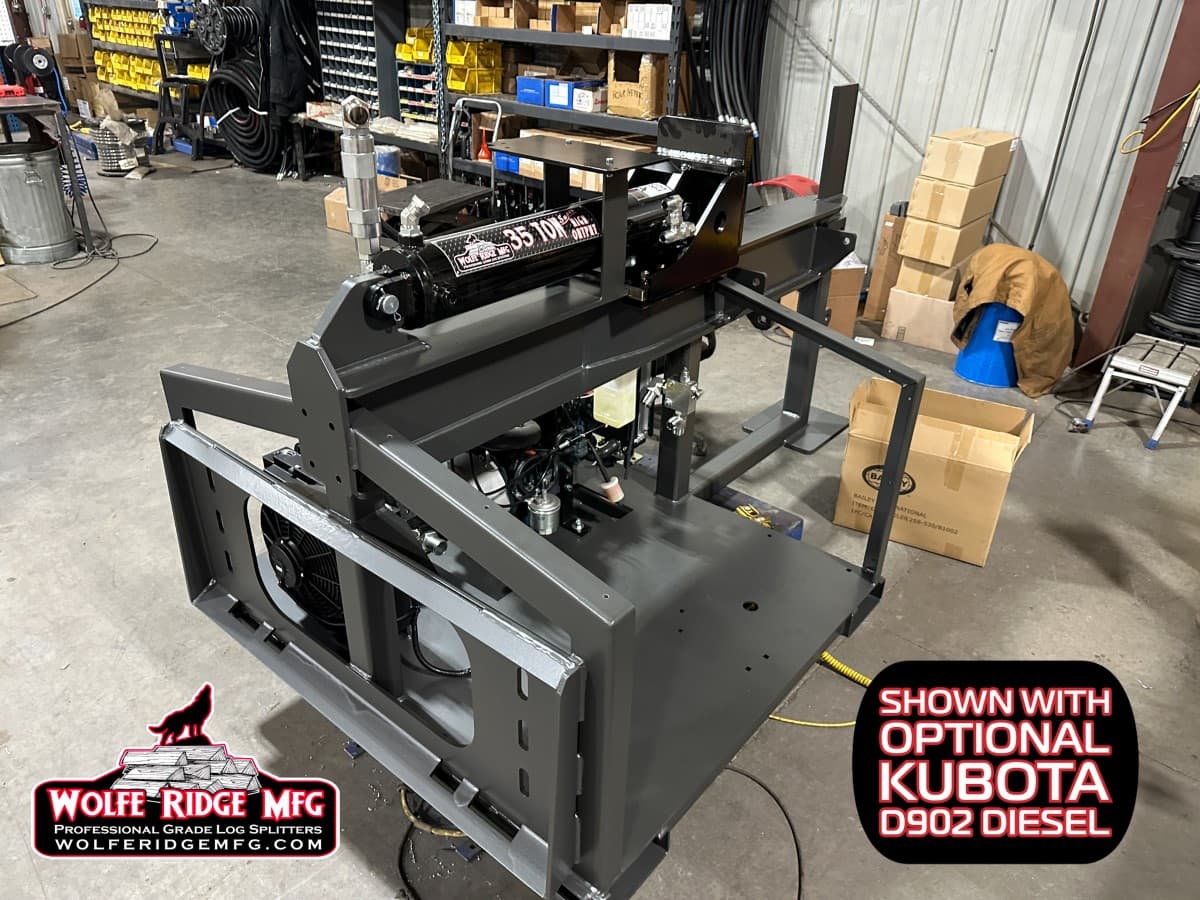

28 HDI & 35 HDI – Heavy Duty Industrial Log Splitter

The Wolfe Ridge Heavy Duty Industrial log splitter is designed for industrial firewood production.  Built on a skid frame, it can be moved with a standard SSQA (skid steer quick attach) or by using the built-in pallet fork pockets.  The HDI is built with a Honda GX630 v-twin engine and 28 gallon per minute pump with 28-ton splitting force for the 28 HDI, or 35-ton splitting force for the 35 HDI.   The HDI frame features a full “roll cage” to protect the engine and pump package from damage.  Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out. The Heavy Duty Industrial log splitter features the “Magnum Big Bore” package as standard equipment.  This includes the 12 inch tall push block and big bore cylinder for consistent performance and fast cycle times.  That means less time and effort spent on splitting wood, and more time for everything else.  This log splitter from Wolfe Ridge is loaded with features that make it user-friendly and jobsite tough. 28-ton or 35-ton splitting force Magnum Big Bore package with super fast cycle time 28 HDI = 5.5 seconds 35 HDI = 7.5 seconds Heavy duty welded frame with SSQA mount and pallet fork pockets Powerful Honda or Kubota engine for consistent performance Easy-to-use controls – Made in USA Prince hydraulic valves Hydraulic log lift as standard equipment Hydraulic wedge height adjustment as standard equipment Hydraulic oil cooler with fan as standard equipment Electric start as standard equipment Sandblasted and powder coated for a tough, long lasting appearance Red, Orange, Gray, or Blue as standard color options Custom colors with any RAL color code for added fee 1 year warranty on machine – 3 year on engine NEW! Optional Power Beyond package ***NOT AVAIL FOR 38 GPM YET*** The Heavy Duty Industrial log splitter from Wolfe Ridge is built for the most demanding firewood producers.  Split any hardwood with ease while enjoying fast cycle times!  Invest in a high-quality, made in USA log splitter that delivers exceptional results every time. Tech Specs Honda GX630 20HP v-twin engine – Optional Honda iGX800 25HP v-twin with 38GPM pump (35 HDI only) – Optional Kubota D902 diesel engine with 38 GPM pump (35 HDI only) 12 volt electric start with Interstate battery 28 GPM hydraulic pump NEW high capacity 30 gallon steel hydraulic oil tank with cartridge return filter Prince auto cycle valve Magnum big bore package with 12 inch tall push block Bronze self lube slides on push block In-house welded & fabricated splitter beam 24 inch stroke length (30 or 36 inch optional) Hydraulic log lift included – 600lb lift capacity  Hydraulic wedge height adjustment Hydraulic oil cooler with 12 volt fan and thermostat Removable 4 way AND 6 way wedges included (12 way optional) NEW! Optional Power Beyond package ***NOT AVAIL FOR 38 GPM YET*** Includes 2 section hydraulic pump Control valve with forward / neutral / momentary reverse 20 foot hydraulic hoses with flat face connectors included SSQA mount plate welded to frame Pallet fork pockets 4’ x 8’ overall size Weight: 1900 lb Shipping Our horizontal splitters can ship on a pallet, or via partial flatbed / hotshot trucking.  If you have a freight terminal near you we can arrange freight to that location.  Or, if a semi truck can get to your address, we can arrange a shipment with liftgate service.  You could also pick up your new machine from the closest Wolfe Ridge dealer. Check out our dealer locator. Please note:  If you have a machine shipped via partial flatbed or hotshot, you will need a piece of equipment for unloading.  Such as a forklift, tractor or skid steer with pallet forks and sufficient lifting capacity. If you have your machine shipped LTL on a pallet, we can also offer optional liftgate service.  Your new machine would get unloaded at the end of your driveway closest to the road – provided a semi truck can get to your address. Video   Questions? Please enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form.Name *FirstLastPhoneEmail *Message *View our Privacy PolicySend
