CH-5-6 Gang Charger

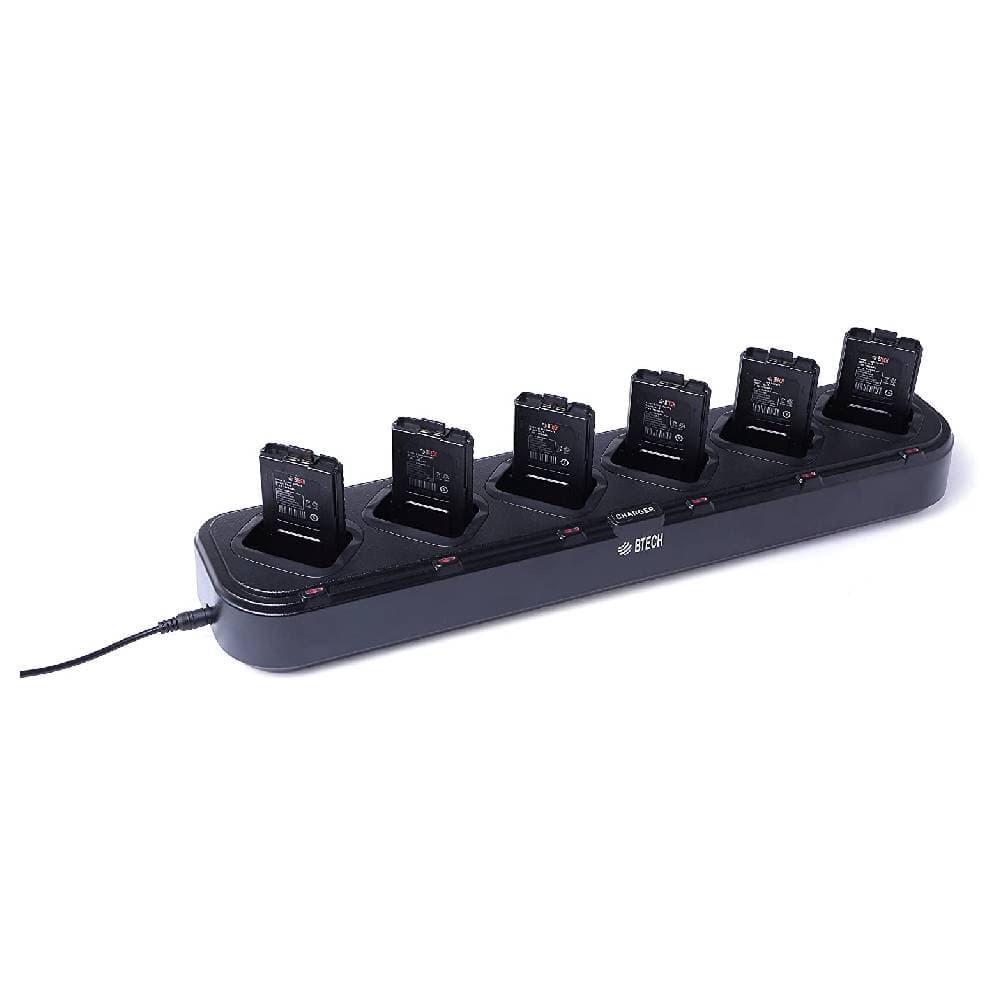

The CH-5-6 is an intelligent, multi-position battery chargers for the the UV-5R Series of hand-held radios (UV-5R, BF-F8HP, UV-5X3, UV-5RA, and others using the BL-5 (or BL-5L) battery). They are capable of charging up to six, single-cell lithium-ion (Li-ion) batteries; six, dual-cell lithium-ion batteries; or six, six-cell, nickel metal hydride (Ni-MH) batteries simultaneously. The CH-5-6 have features that effectively protect the batteries and prolong the battery life. The CH-5-6 has six, independent intelligent charge-management circuits, one for each battery-charging position. They detect a battery’s charge state, provide the appropriate voltage and current while charging, and turn off when the battery is fully charged. In addition, both chargers include reverse-polarization protection circuitry to prevent damage to the battery or the charger should a battery be inserted incorrectly. A charge status indicator for each position allows a user to quickly determine if a battery is fully charged and ready to use. Instructions 1.Plug the DC output plug the AC adapter into the CH-5-6 desktop multi-charger. 2.Plug the AC adapter into an AC outlet. 3.Insert a radio, with the battery attached, or the battery alone, into one of the charging positions, making sure that the battery makes good contact with the charging terminals. Specifications AC/DC Adapter: 1.Input Voltage: 100-240 VAC, 50/60Hz 2.Output Voltage: 12 VDC @ 5A Charging tray 1.Input: 12 VDC 2.Output: 4.2 VDC, 8.4 VDC, or 9.4 V DC
