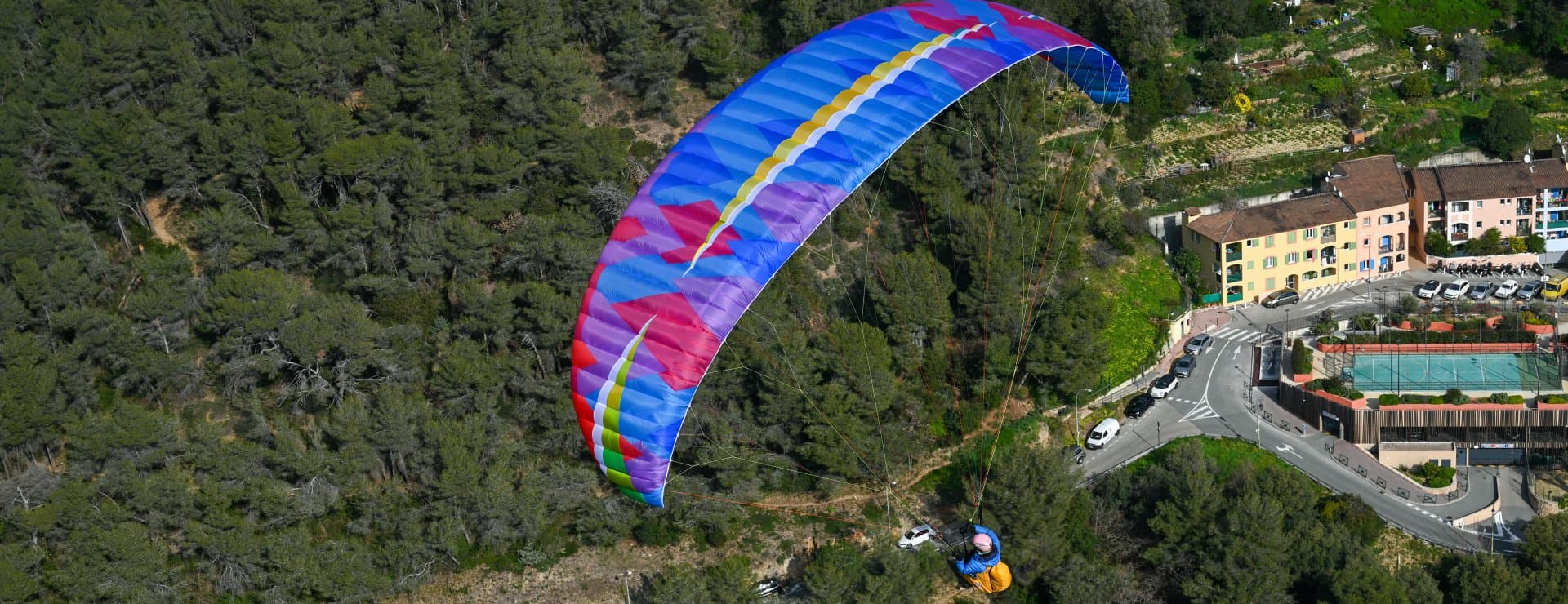

BGD Magic 2 Paraglider

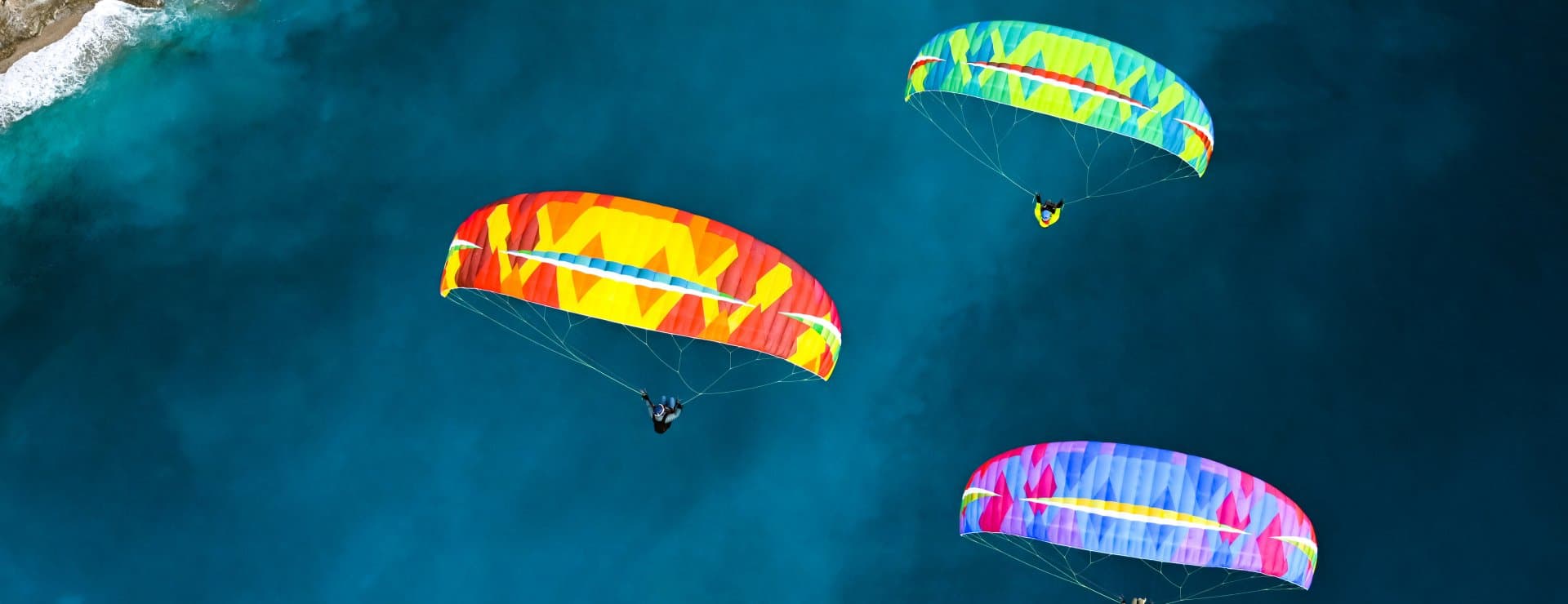

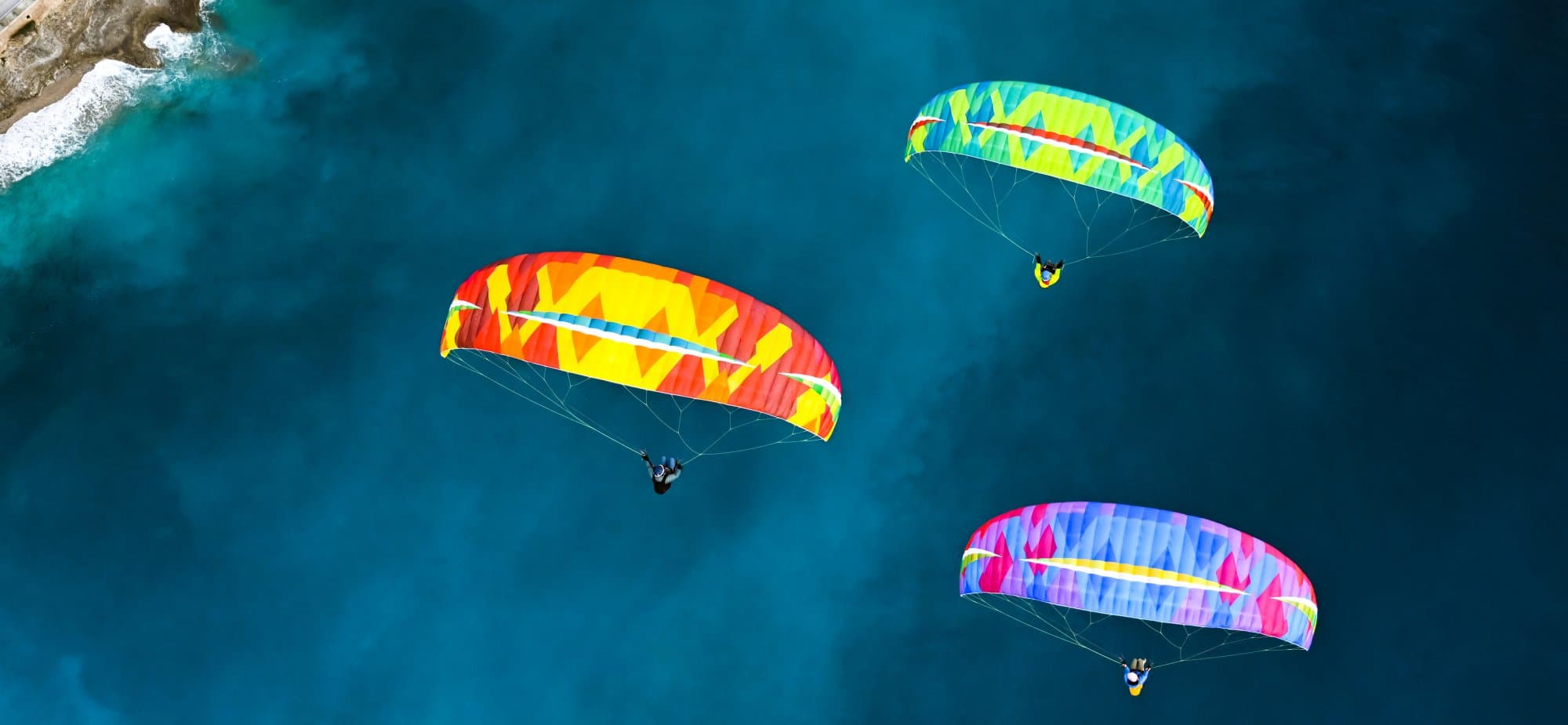

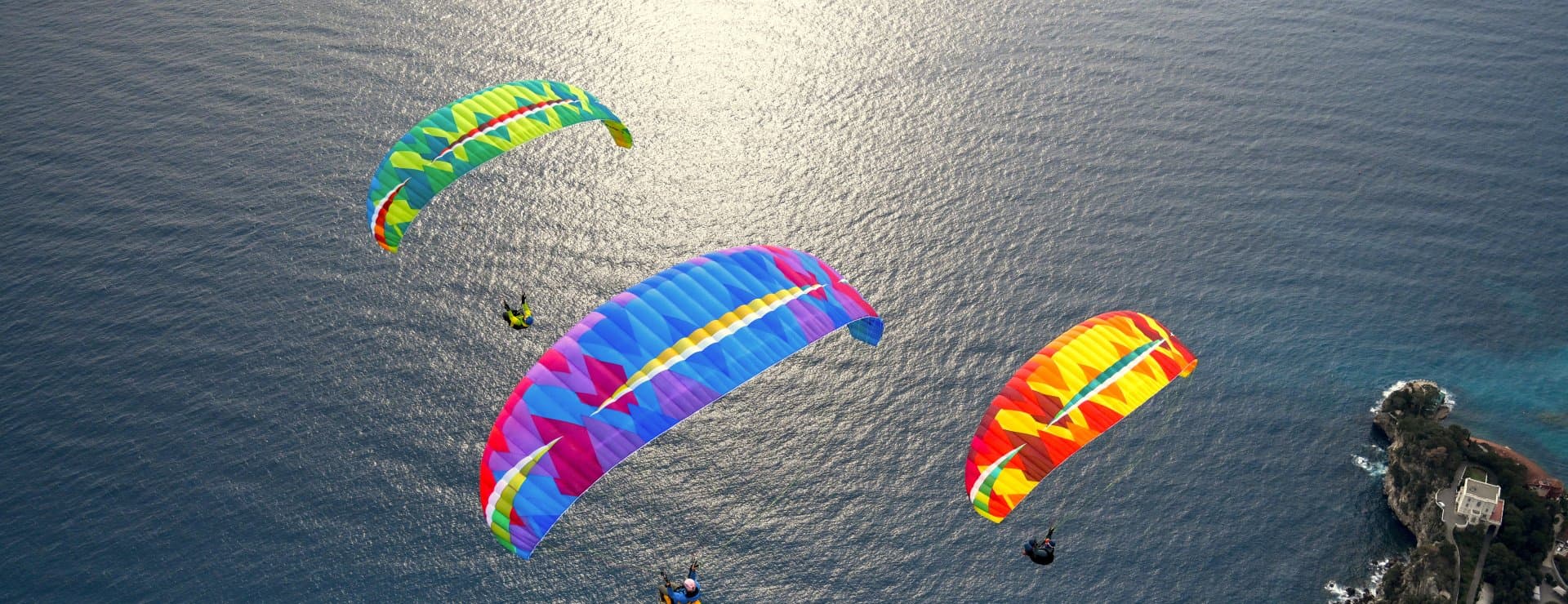

BGD Magic 2 Paraglider EN/LTF-A A safe and fun wing that will keep new pilots in love with this amazing sport as they explore what it has to offer. BGD Performance Project Chord Cut Billow (CCB) High taper planform Internal seams Progressive Stability Specs XS S M ML L Linear scaling factor 0.96 1 1.04 1.08 1.12 Projected area (m²) 18.2 19.7 21.3 23 24.7 Flat area (m²) 21 23 25 27 29 Glider weight (kg) 4.2 4.5 4.8 5.1 5.4 Total line length (m) 228 247 267 288 310 Height (m) 6.2 6.4 6.7 6.9 7.2 Number of main lines (A/B/C) 3/4/3 Cells 38 Flat aspect ratio 4.9 Projected aspect ratio 3.5 Root chord (m) 2.7 2.8 2.9 3 3.1 Flat span (m) 10.2 10.6 11 11.5 12 Projected span (m) 7.9 8.3 8.6 9 9.3 Trim speed (km/h) 37 Top speed (km/h) 50 Min sink (m/s) 0.9 0.9 0.9 1 1 Best glide 9.1 9.2 9.3 9.4 9.5 Ideal weight range (kg) 55-70 68-80 80-95 95-108 108-125 Certified weight range (kg) 50-70 60-80 75-95 88-108 100-125 Certification (EN/LTF) A Colors AQUARIUS PISCES TAURUS Info One dream, one soul One prize, one goal – Queen, A kind of Magic The MAGIC 2 is our high-performance EN-A paraglider. Full of sparkle and magic it has maximum fun-factor and excellent passive safety. It’s super easy to launch and an absolute joy to thermal, with beautiful handling and the right amount of feedback. The choice of materials and the structural design ensures the glider is robust and durable, and can withstand the abuse of training, but without adding weight – the M size is just 4.8kg. There’s a well-known saying in the paragliding world: “The best pilot is the one having the most fun”. Fly the MAGIC 2 – be the best pilot!     Tech BGD Parasim Simulation Software BGD’s in-house simulation program: high-fidelity aerodynamic simulations (CFD) predict flow characteristics around the wing, allowing us to optimise the shape to maximise performance. Baby A-riser We have added a ‘big ears’ A riser which is also on a ½ ratio with the rest of the A lines. This facilitates easy use of big ears while helping speed and stability while on bar. The speed system is light and simple without reflex really helping glide at speed. BGD Performance Project The BGD Performance Project applies advanced aerodynamic shape optimisation techniques for conventional aircraft to paragliders, and has resulted in new shapes, profiles, and innovation. Chord Cut Billow (CCB) Chord Cut Billow technology has been developed to improve the form friction, glider stability and overall performance of our paragliders. Two seams run chord-wise across the top panels of the leading edge. They accommodate the panel ballooning that happens when the wing is inflated. Without CCB, up to five centimetres of excess material is created on the sides of an inflated flat panel when it bends over a wing profile. This results in wrinkles. Chord Cut Billow technology removes this excess material and the 3D panel has fewer ripples and improved rib profile shape and stability. Elliptical Cell Openings We have found that elliptical cell openings give better lower surface tension making for smoother inflation, and re-inflation after collapses. High taper planform The High Taper Planform is the result of the BGD Performance Project research. The wing’s distinctive highly tapered planform (smaller tips) increases glide performance. Integrated Line Layout The line layout of our gliders is fully integrated into the wing design. Sail and lines are designed together, holistically. The cell widths and the internal straps that transfer the load though the sail are all designed according to the line layout. Even the panel shaping is matched with the line layout through detailed CAD simulation. The result is simple: fewer lines and stronger, faster, safer gliders. Impeccable Spiral Behaviour The spiral behaviour is astounding – spiral stability can be a problem with low aspect-ratio beginner wings, but we have tested the paraglider extensively, with different inclinations and sink rates, and never, ever has it stayed in a spiral, once! This is very unusual for a school glider and is a big safety bonus. Internal seams The seams on the top-surface mini ribs are on the inside, where they are protected. Progressive Stability Using our Parasim simulation program, BGD gliders are designed to have a stable and solid centre with progressively softer tips. This teaches pilots to predict and avoid deflations and stay aware of the air. Safety and performance Beginner-friendly safety, and the performance to progress your soaring, thermalling and XC flying Triple finger diagonals Triple Finger Diagonals create a more solid and durable wing. Across the whole chord of the profile, three-piece diagonal supports pass through holes in the ribs. They ensure structural integrity by avoiding the cloth being loaded in the bias direction. This is particularly important near the trailing edge where the profile is thin and shallower diagonal ribs supporting high loads. Weight-optimised ribs We have maintained the strength and rigidity of the ribs while removing unnecessary material. This means less weight for no increase in cost or reduction in strength of the wing. The hole positioning and size depends on the loads taken locally by the sail, and it is thanks to recent developments in our software that it is now possible to accurately calculate this. Target The MAGIC 2 is designed as a pilot’s first wing; an easy, safe and forgiving glider for pilots progressing in their flying careers. It‘s positioned above the ADAM 2 school wing. It has EN-A safety and easy handling, with plenty of fun-factor and excellent performance. It will take pilots from their first soaring flights, learning to thermal, first XCs and onto more ambitious projects. Pilots will learn to love their MAGIC 2 as they appreciate its thermalling and XC potential, and won’t grow out of it too fast.   Designer’s notes The brief for the R&D team was to produce a wing that is very safe, easy to fly and forgiving of errors. It must be fun and have performance for flying XC: a true ‘progression’ wing. We’re really happy that we’ve achieved this. The MAGIC 2 is a roll-stable glider with smooth, refined handling, and is an absolute joy to thermal. It is super easy to launch, with no tendency to slow in the rise phase and forgiving of over-enthusiastic pulling of the A-risers. The long brake travel combined with progressively increasing pressure as you near the stall point, means you won’t stall it unintentionally. It also has no tendency to get locked into a spiral and is generally very forgiving in roll. Package includes Paraglider / Compression strap / Riser bag / Inner bag / Rucksack / Repair cloth / BGD stickers / BGD gift / Manual card Material Top surface Porcher Skytex 38g/m² Bottom surface Porcher Eazyfly 40g/m² Internal structure Porcher Skytex hard finish 40g/m² Nose reinforcing 2mm high modulus PA6.6 wire Risers 20mm Kevlar / nylon webbing Pulleys Riley / Sprenger Top lines Liros PPSL / DSL, Liros DC Middle lines Liros PPSL / DSL Lower lines Liros PPSL / TSL Brakes Liros DSL Download Line layout Brochure (3.3Mb) Manual V3 XS XS Certificate XS Flight test S S Certificate S Flight test M M Certificate M Flight test ML ML Certificate ML Flight test L L Certificate L Flight test
