IP/UVC to HDMI 2.0 POE Decoder Supports H.264/H.265/AVC

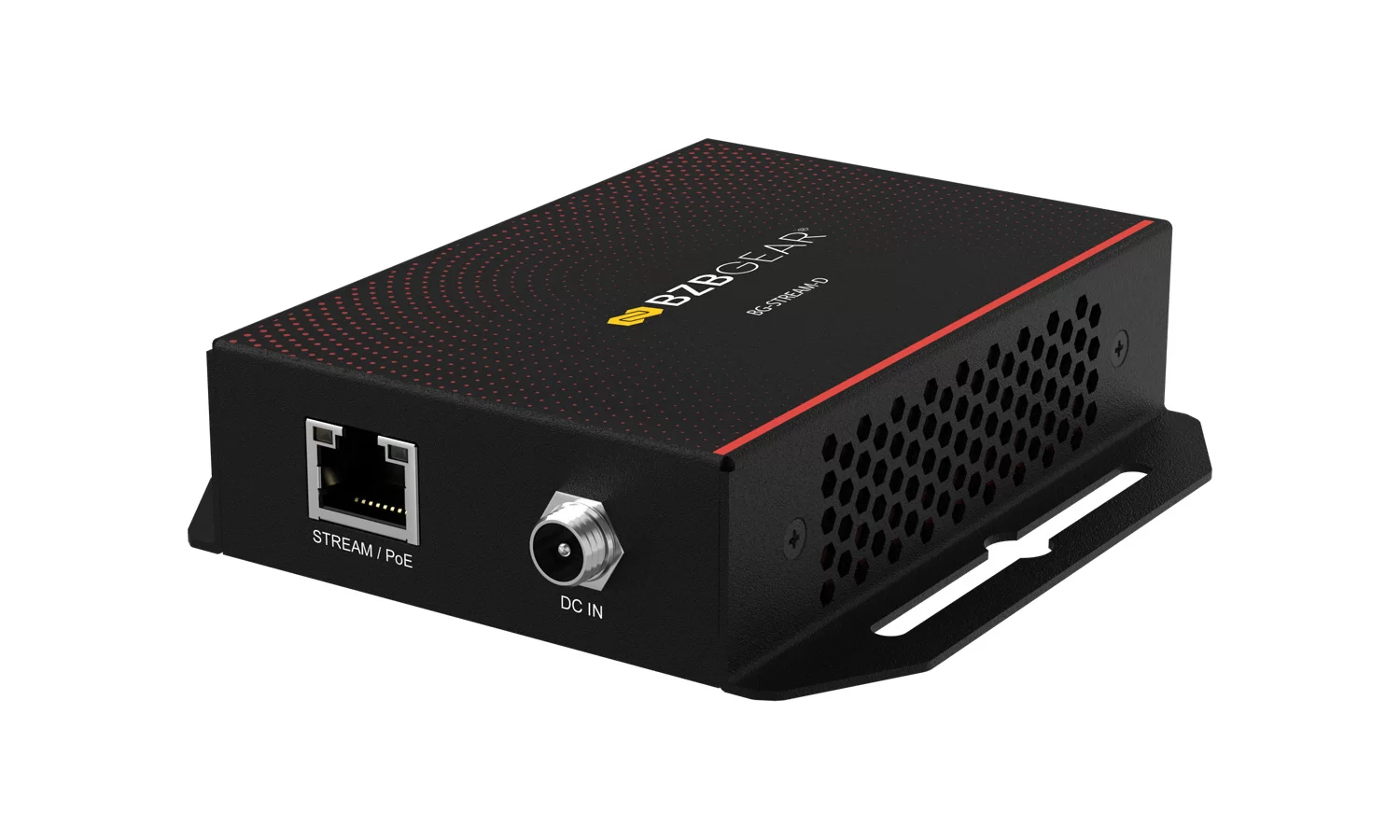

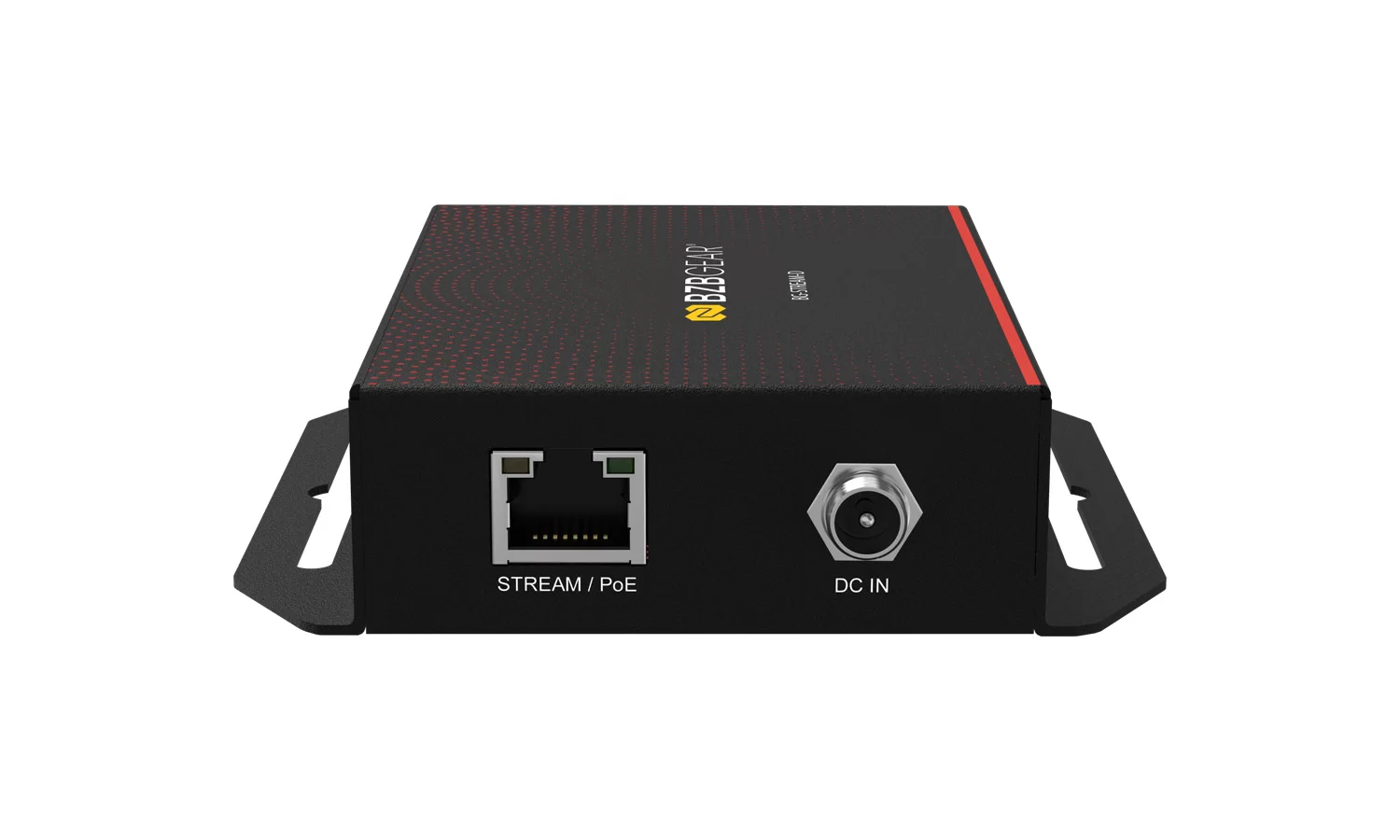

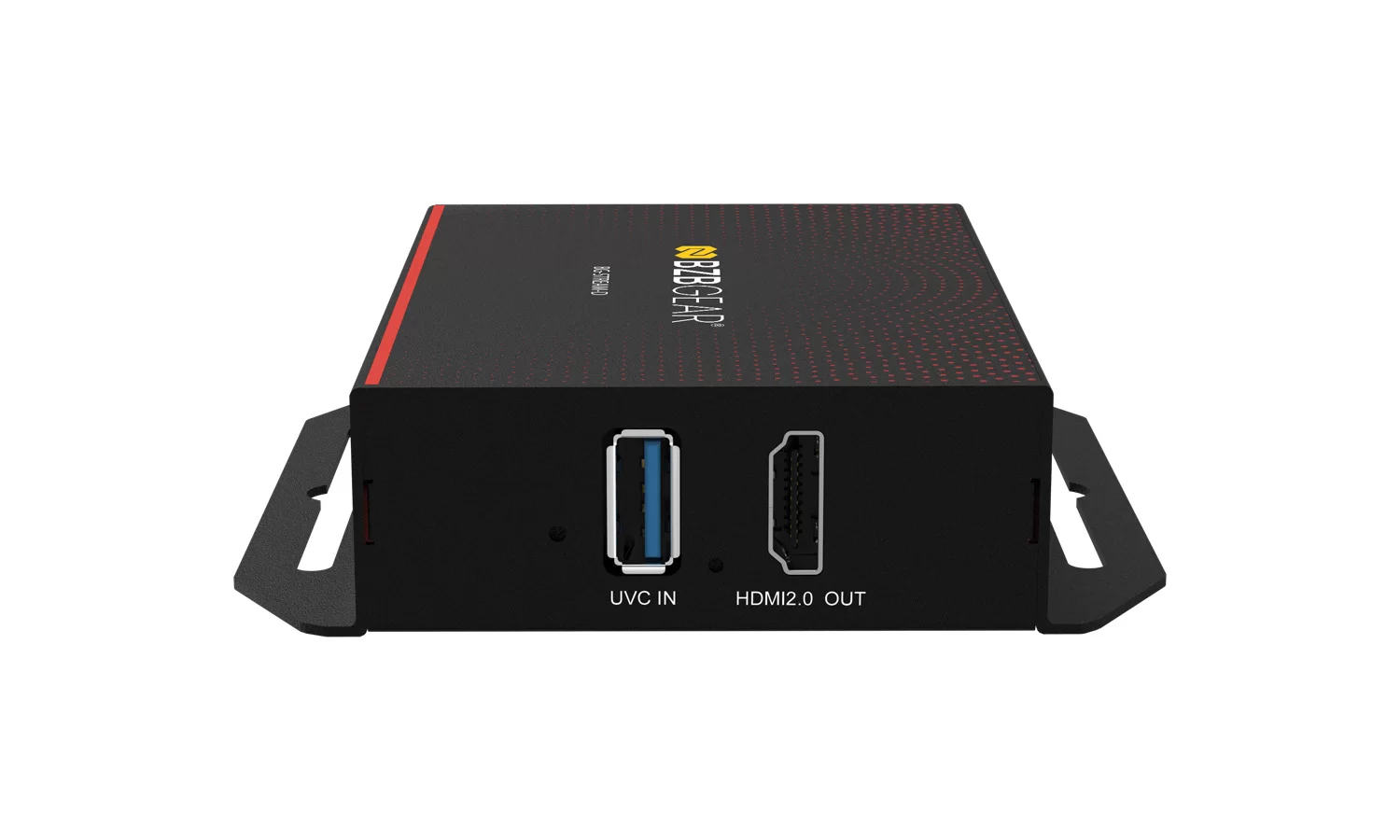

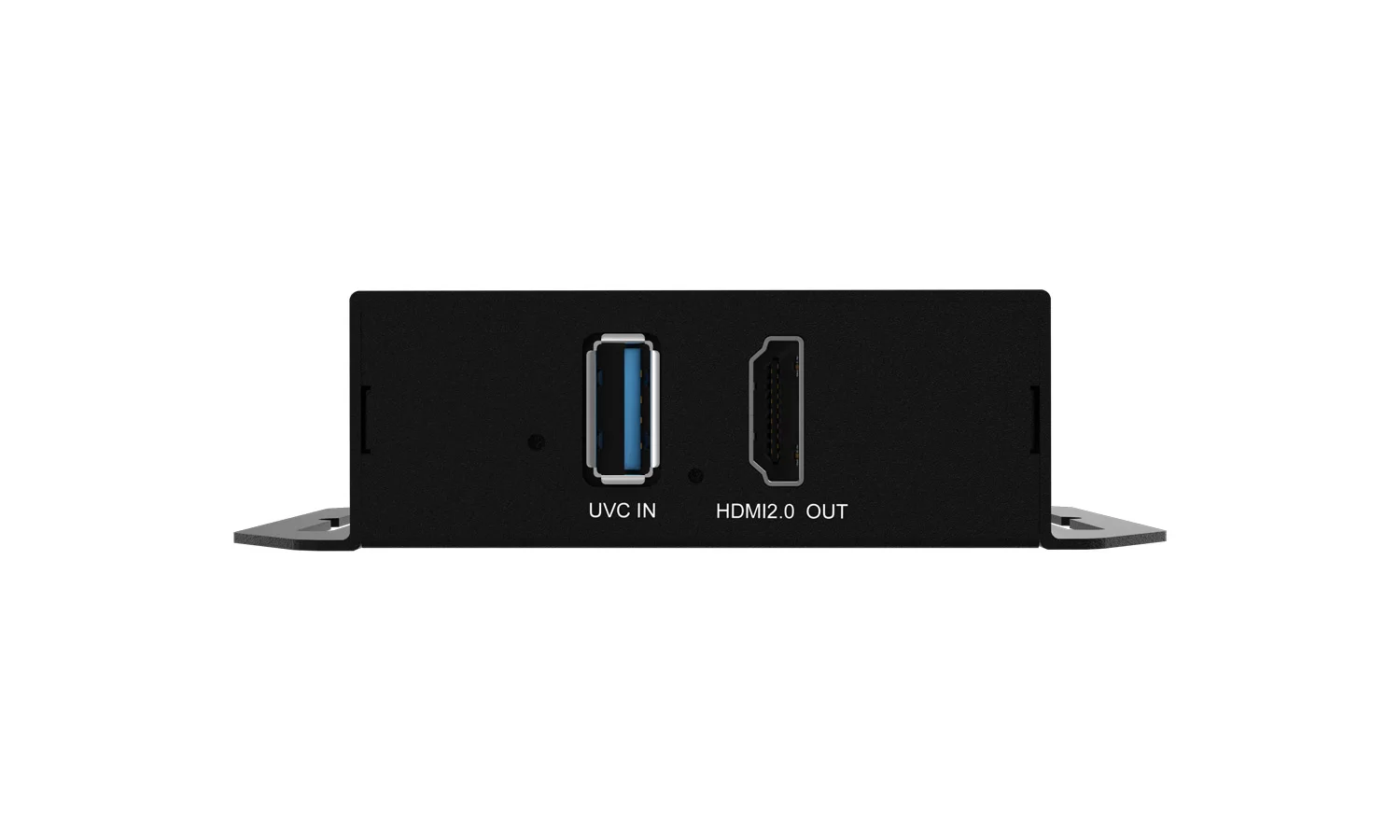

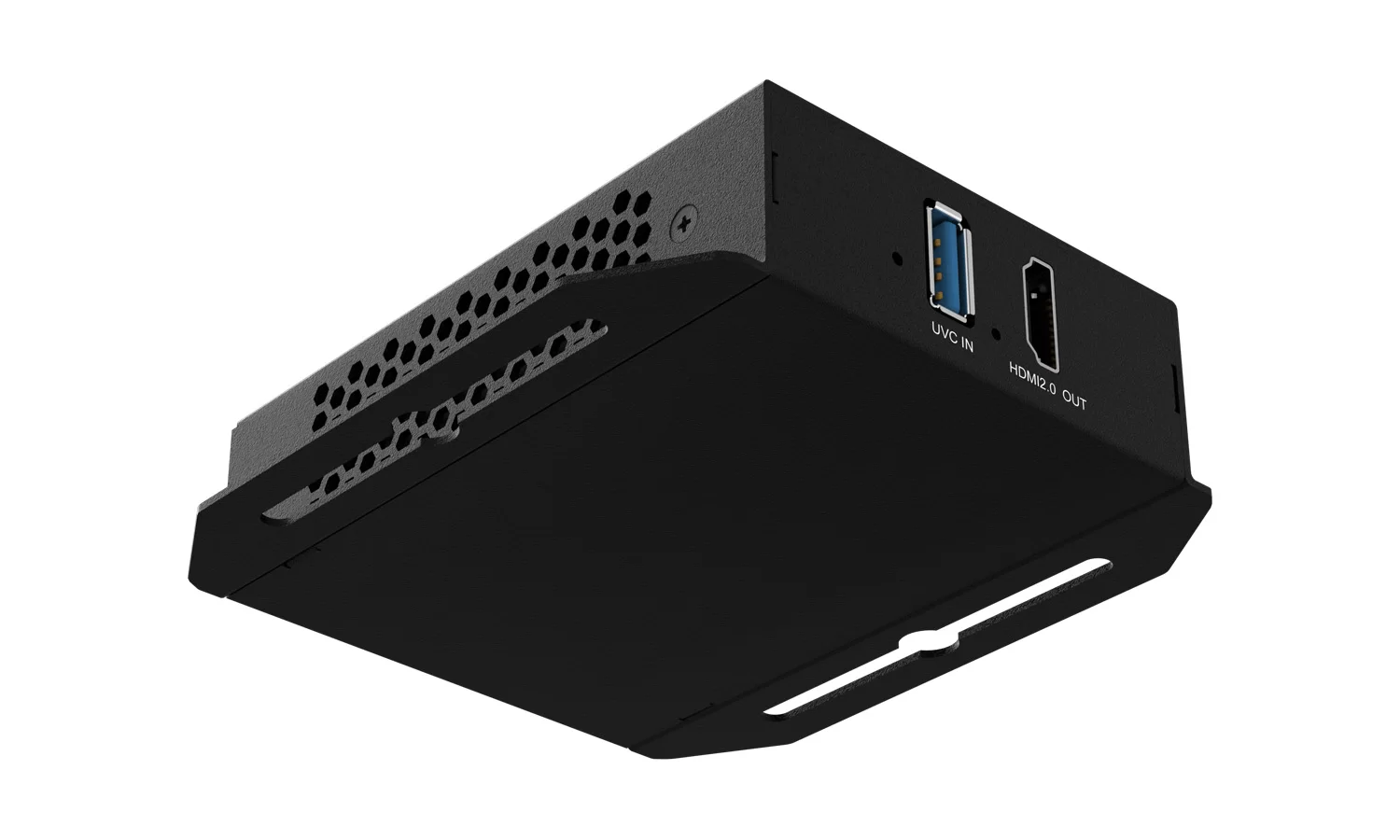

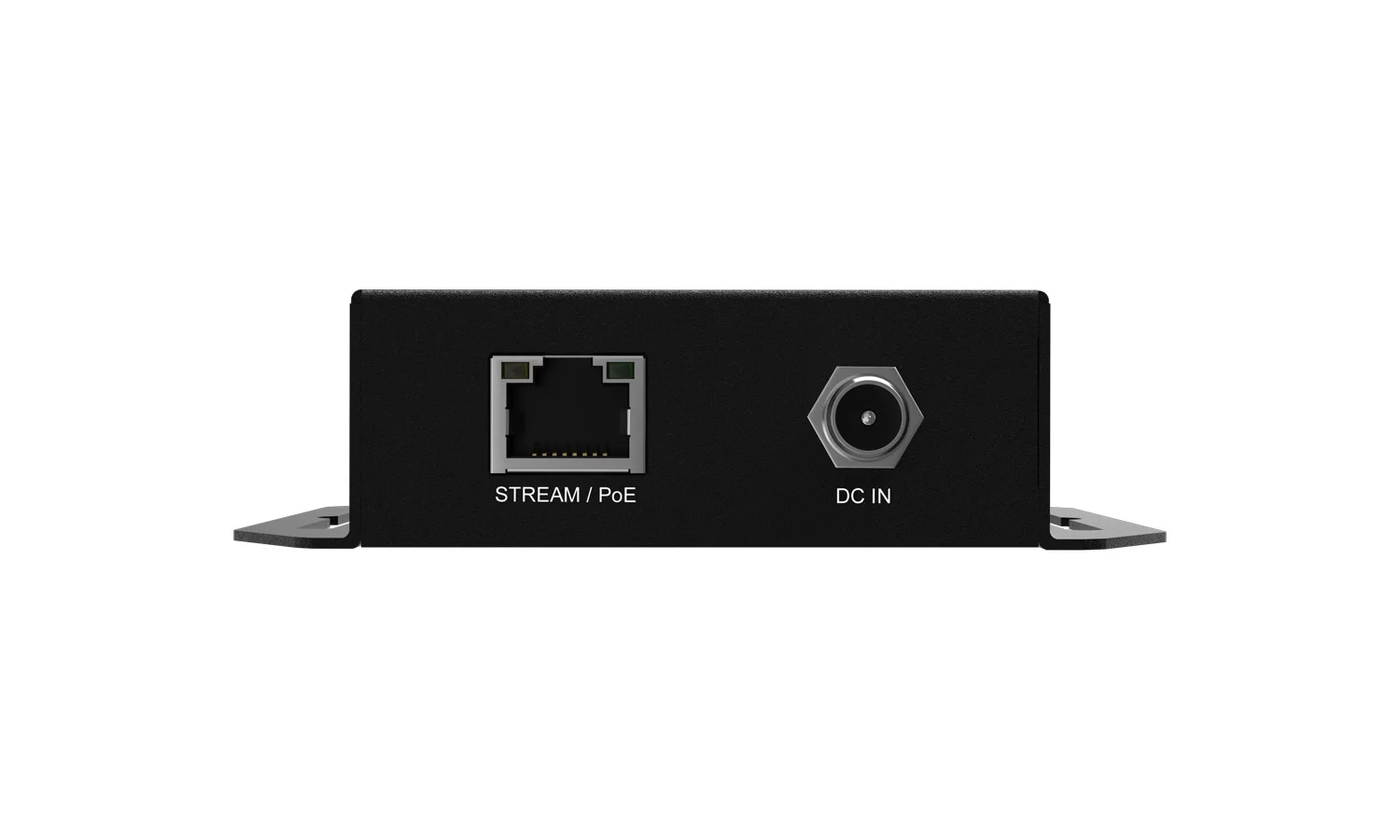

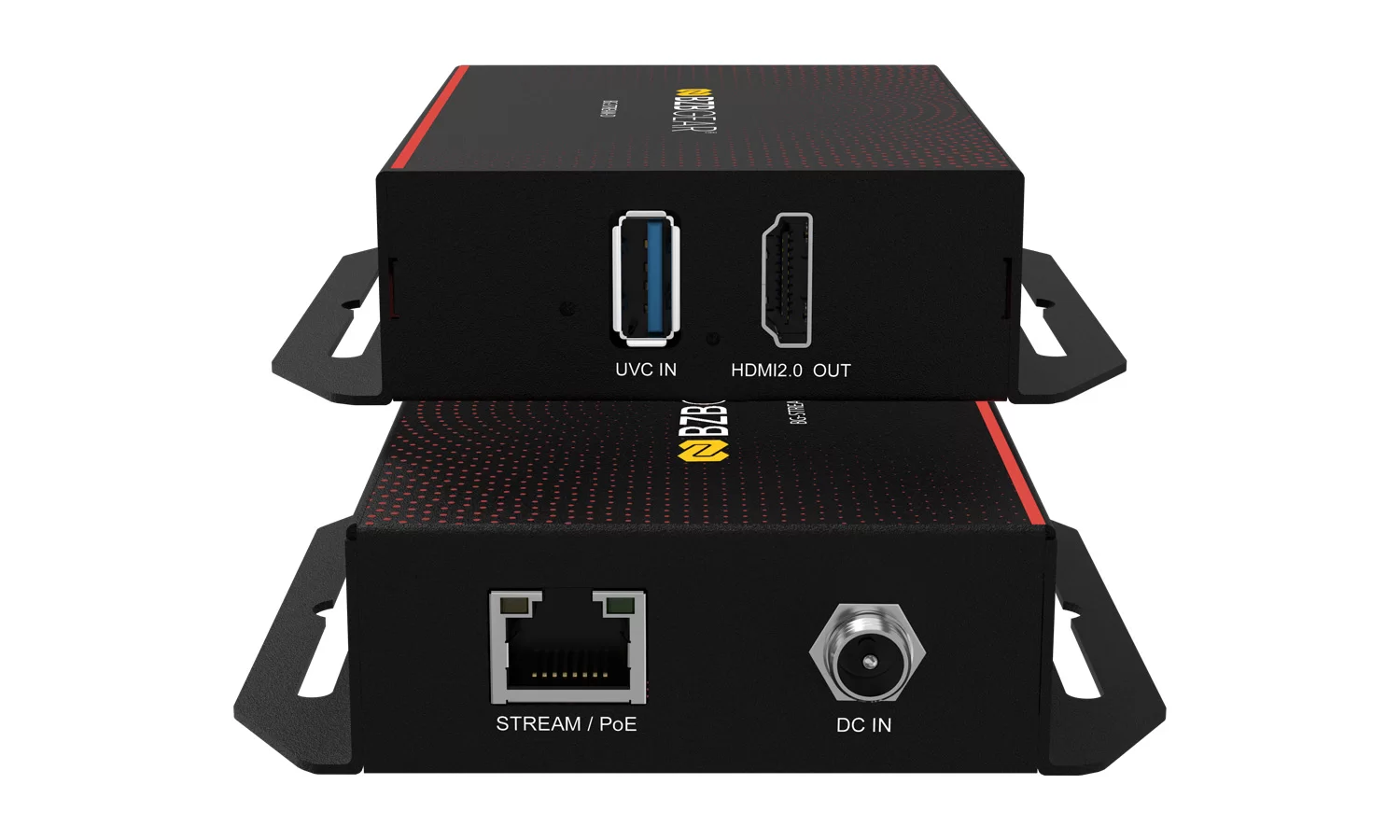

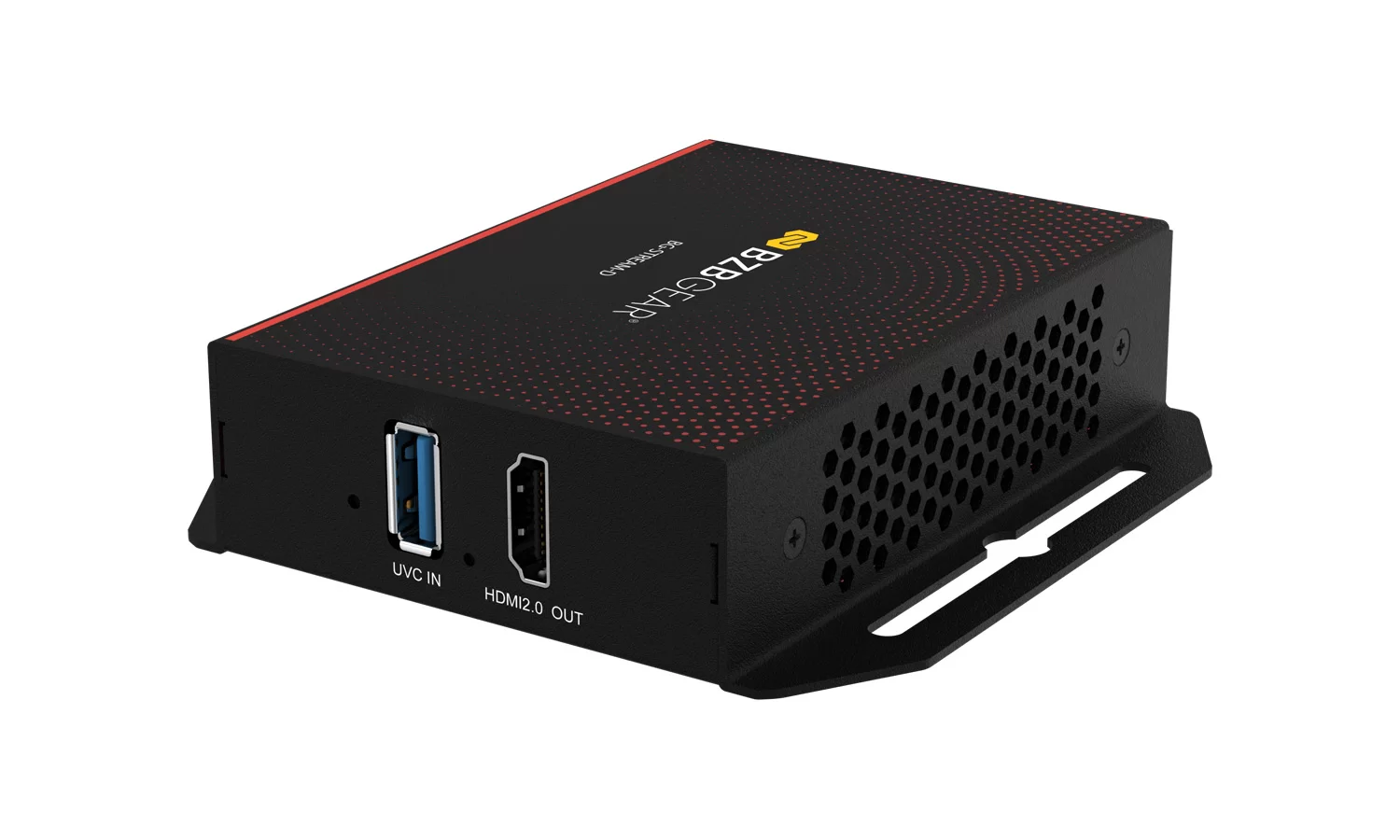

Overview Features In-Depth Overview The BG-STREAM-D IP/UVC to HDMI 2.0 is a versatile and compact video decoder that bridges the gap between various video input sources and HDMI output. Featuring a single RJ45 input, USB 3.0 Type A (UVC) input, and HDMI 2.0 output, this device is ideal for high-definition video processing and streaming. It is powered through a secure locking DC jack, ensuring stable and reliable operation. Features In-Depth The BG-STREAM-D IP/UVC to HDMI 2.0 is an advanced video processing unit that supports multiple video and audio formats. It provides seamless connectivity options through its RJ45 and USB 3.0 inputs, delivering output via HDMI 2.0. This device is designed to handle high-resolution video up to 4096×2160p at 60/50fps, making it suitable for professional AV setups, live streaming, and broadcasting applications. The device supports a wide range of streaming protocols, including RTSP, RTMP, HLS, TS, SRT, NDI HX, and Dante AV-H, providing flexibility and compatibility with various streaming platforms. The integrated web UI offers an intuitive interface for system configuration, ensuring user-friendly operation and easy setup. With advanced features like hardware compression, real-time recording, and firmware upgradability, the BG-STREAM-D IP/UVC to HDMI2.0 decoder is designed to meet the demanding requirements of modern video production environments. Its compact design, measuring 103.8mm x 71.2mm x 26mm, allows for easy integration into existing AV infrastructures. Features Versatile Connection Options Supports IP, USB-A 3.0, and HDMI 2.0 connections High-Quality Video Processing Capable of resolutions up to 4K@60Hz with downscaling ability Comprehensive Audio Support Utilizes AAC-LC codec with a configurable bit rate range from 32Kbps to 384Kbps Advanced Network Capabilities Includes DHCP support and Power over Ethernet (PoE) functionality Extensive Protocol Support Covers RTSP over UDP/TCP/Multicast/HTTP, RTMP, TS over IP, HLS, NDI, and Dante AV-H User-Friendly Interface Features an accessible web UI for easy system configuration UVC Device Support: Ensures compatibility with a wide range of devices Real-Time Mode Recording: Enables immediate recording functionality Compact and Durable Design: Includes a secure locking DC jack power input Efficient Hardware Compression: Supports H.265/H.264/AVC encoding Firmware Upgradeable: Allows for easy updates to enhance functionality Professional IP/UVC to HDMI 2.0 processing User-Friendly Interface The BG-STREAM-D IP/UVC to HDMI 2.0 decoder features an intuitive web user interface that makes it simple to configure and operate. Users can easily manage video input sources, adjust settings, and monitor performance in real time, ensuring a seamless and efficient workflow. Stream & Output Configuration This device offers flexible stream and output configuration options. It supports various streaming protocols, including RTSP, RTMP, HLS, TS, SRT, NDI HX, and Dante AV-H. Users can effortlessly switch between IP and USB inputs, delivering high-quality HDMI 2.0 output for professional AV setups and live streaming applications. Advanced Audio Configuration The interface provides intuitive settings for adjusting embedded audio and audio output levels, simplifying the audio management process. You don't need to be an audiophile to achieve the perfect sound! Videos Dante AV-H to HDMI Decoder Demo Using the BZBGEAR BG-STREAM-D How to Convert NDI to HDMI with the BZBGEAR BG-STREAM-D Display RTSP Streams on HDMI Monitors Using The BZBGEAR BG-STREAM-D 4K60 Stream Decoder - Seamless Video Playback BG-STREAM-D #ISE2025
