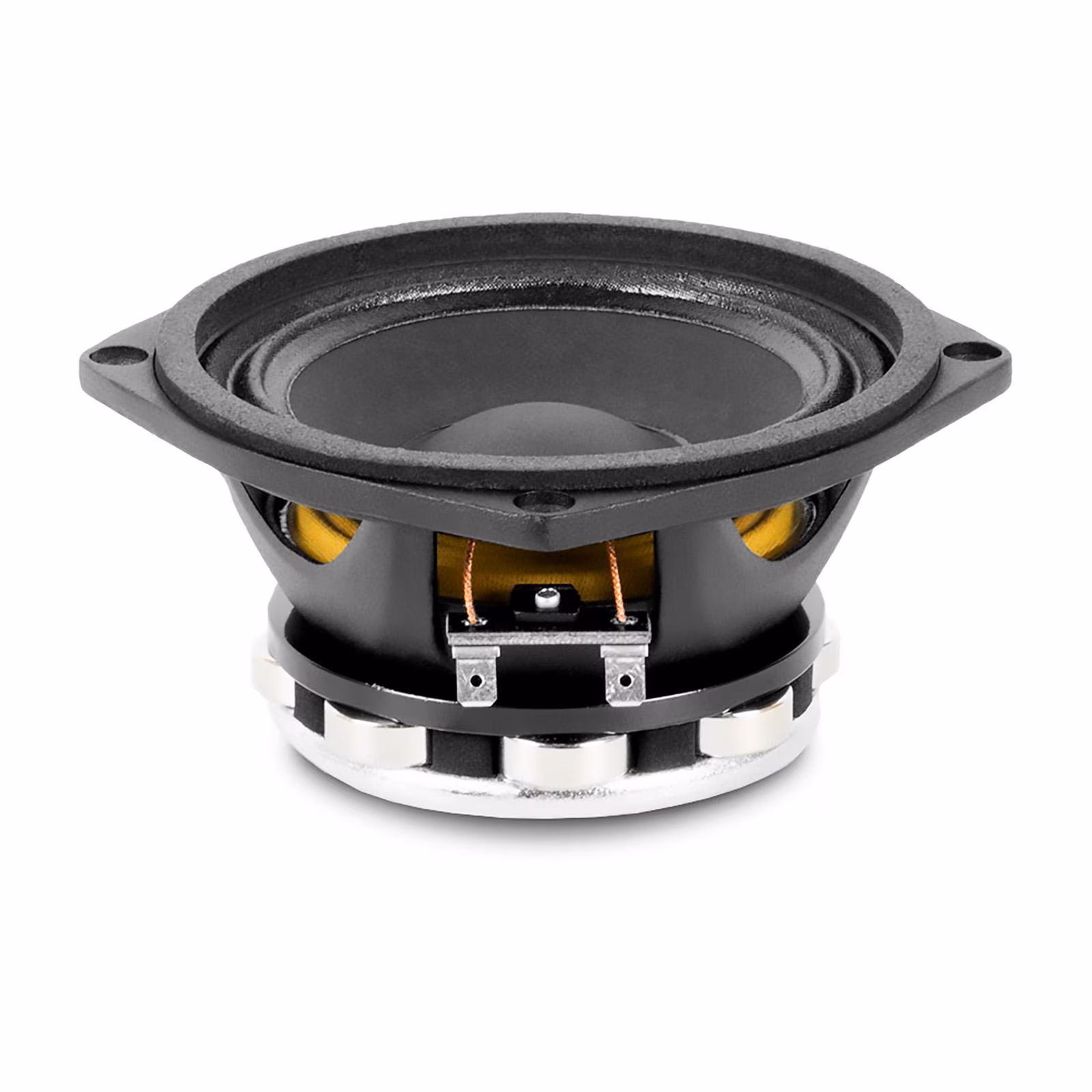

Beyma 5G40Nd/N 5″ Full Range Speaker

Genuine Beyma 5G40Nd/N Professional 5″ Speaker The Beyma 5G40Nd/N is a high-performance 5-inch neodymium loudspeaker engineered for professional low-mid and full-range applications. Featuring a lightweight neodymium motor structure, 1.5-inch aluminum voice coil, and extended frequency response up to 17 kHz, the 5G40Nd/N delivers excellent clarity, high sensitivity, and low distortion in compact speaker systems, line arrays, portable PA systems, and custom loudspeaker designs. Designed for professional audio applications where weight, efficiency, and sound quality are critical, the 5G40Nd/N provides 100 watts AES power handling, 200 watts program power, and a sensitivity of 92 dB while maintaining an exceptionally lightweight 1.2 kg neodymium design. Features Genuine Beyma 5G40Nd/N loudspeaker 5-inch (125 mm) low-mid / full-range transducer Lightweight neodymium magnet structure 100W AES power handling 200W program power 92 dB sensitivity 1.5-inch (38.1 mm) aluminum voice coil Shorting cap for reduced distortion Extended frequency response to 17 kHz Optimized for line array systems Compact, lightweight design Suitable for professional audio and OEM speaker builds Excellent speech and vocal reproduction   Nominal Basket Diameter 5” / 155mm Impedance 8 ohms AES Power Rating 100 Watts Program Power  200 Watts   Frequency Response 150Hz – 17.0KHz Sensitivity (1W/1m) 92dB Voice Coil Diameter 1.5″ / 38.5mm Voice Coil Length 9mm Air Gap Height 7mm X Damage (peak to peak) 20mm BL Factor 10 N/A Recommended Enclosure Volume .35-.7 cu. ft. / 10-20 Liters Mounting Information Overall Diameter 6.1” / 155mm Bolt Circle Diameter 5.57” / 141.5mm Baffle Cutout Diameter- – Front Mount 4.72” / 120mm – Rear Mount 4.72 / 120mm No. Of Mounting Holes 4 Volume Displaced By Driver 0.019 ft3  /  .5 Liters Overall Depth 2.89″ / 73.5mm Net Weight 2.86 lb. / 1.3 kg. Shipping Weight 3.96 lb. / 1.8 kg. Materials Basket Die Cast Aluminum Cone Light & Stiff Paper Surround Treated Cloth Voice Coil Aluminum Wire Former Fiberglass Metal Parts Anti-Corrosion Magnet High Energy Neodymium Thiele-Small Parameters Resonant Frequency (fs) 140 Hz Impedance (Re) 6.6 ohms Coil Inductance (Le) .2 mH Mechanical Q (Qms) 2.8 Electrical Factor (Qes) .53 Total Q (Qts) .45 Comp. Equivalent Vol. (Vas) .049 ft3 / 1.4 Liters Voice Coil Overhang (Xmax) 3.0 mm Surface Area of Cone (Sd) .0085m2 Diaphragm Mass (Mms) 9 Grams Reference Efficiency .7% Displacement Volume 26 cm3
