Baofeng HT Digirig Cables Set

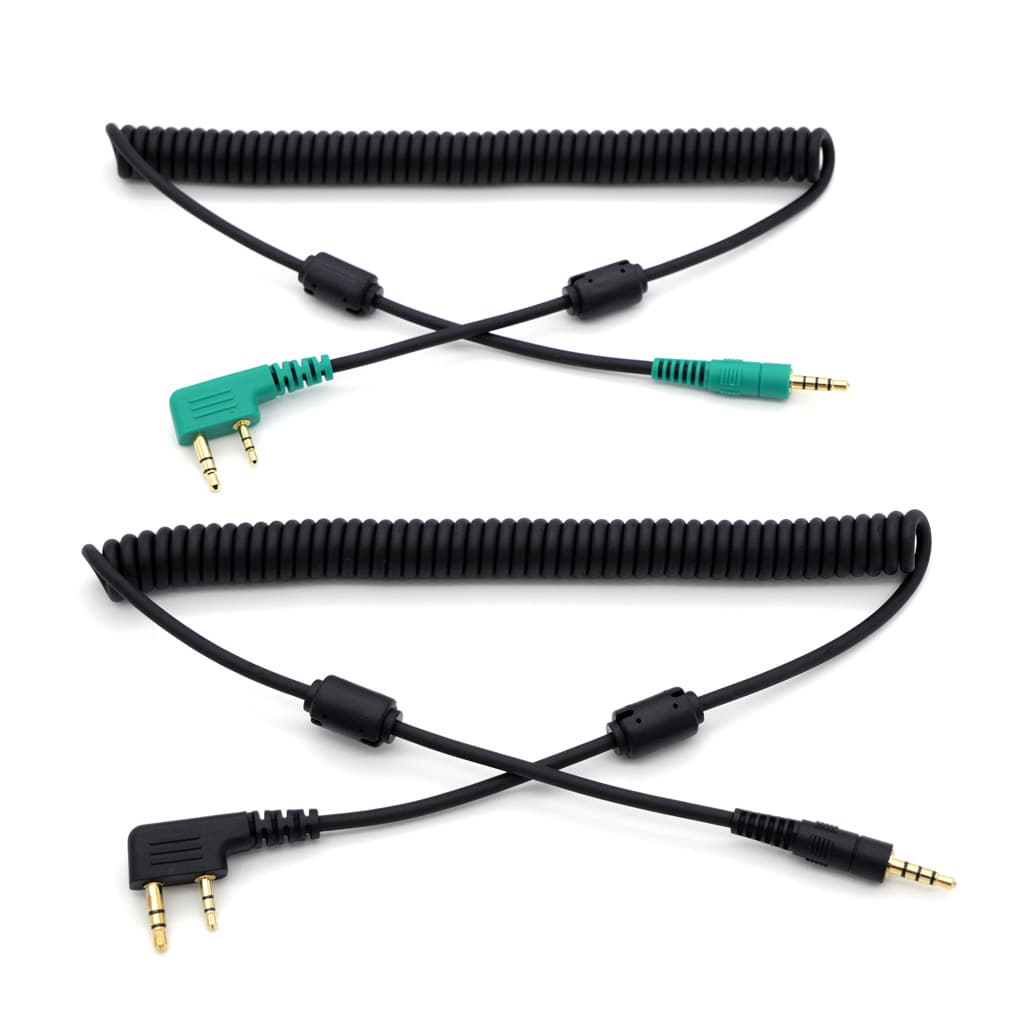

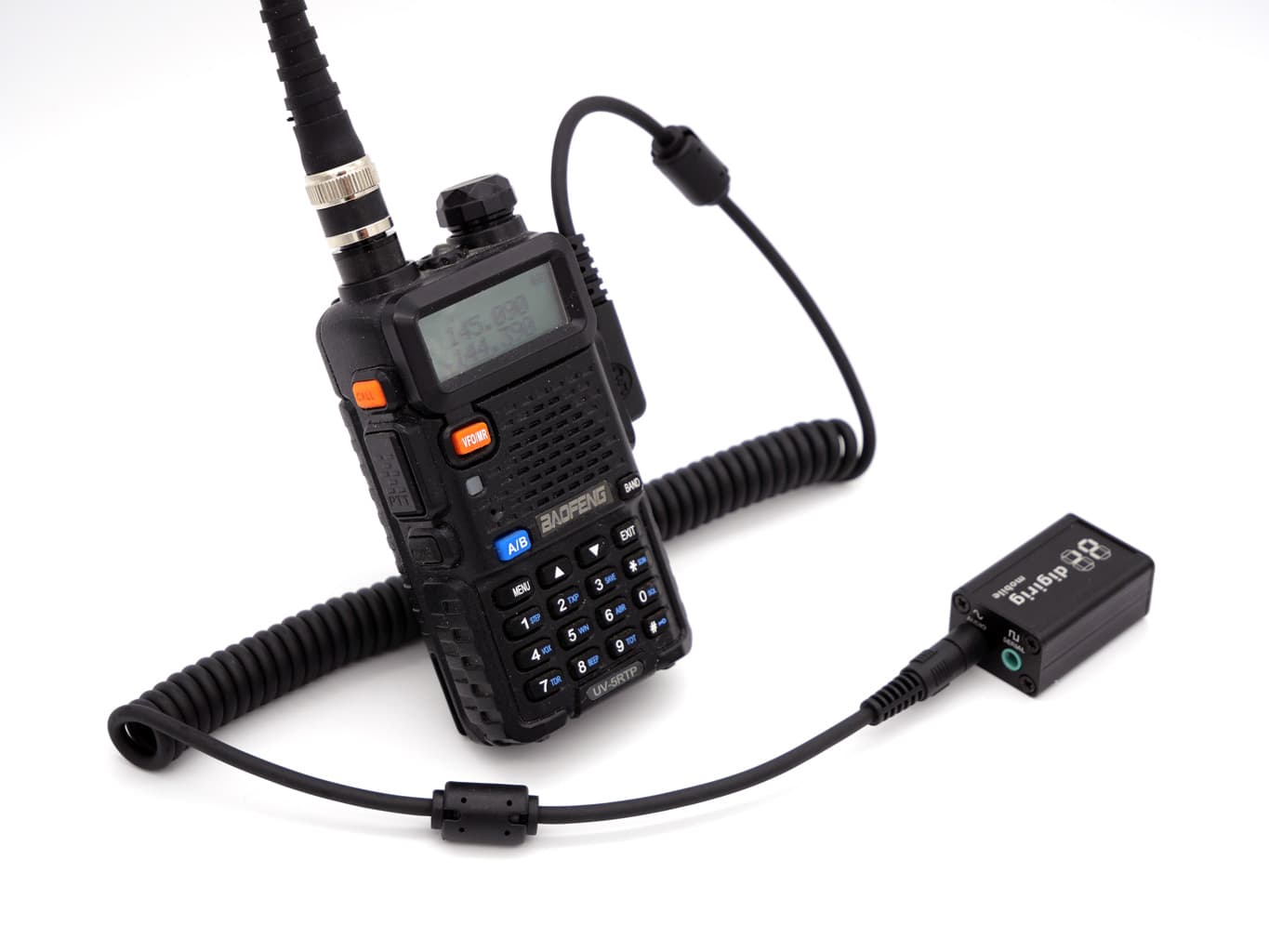

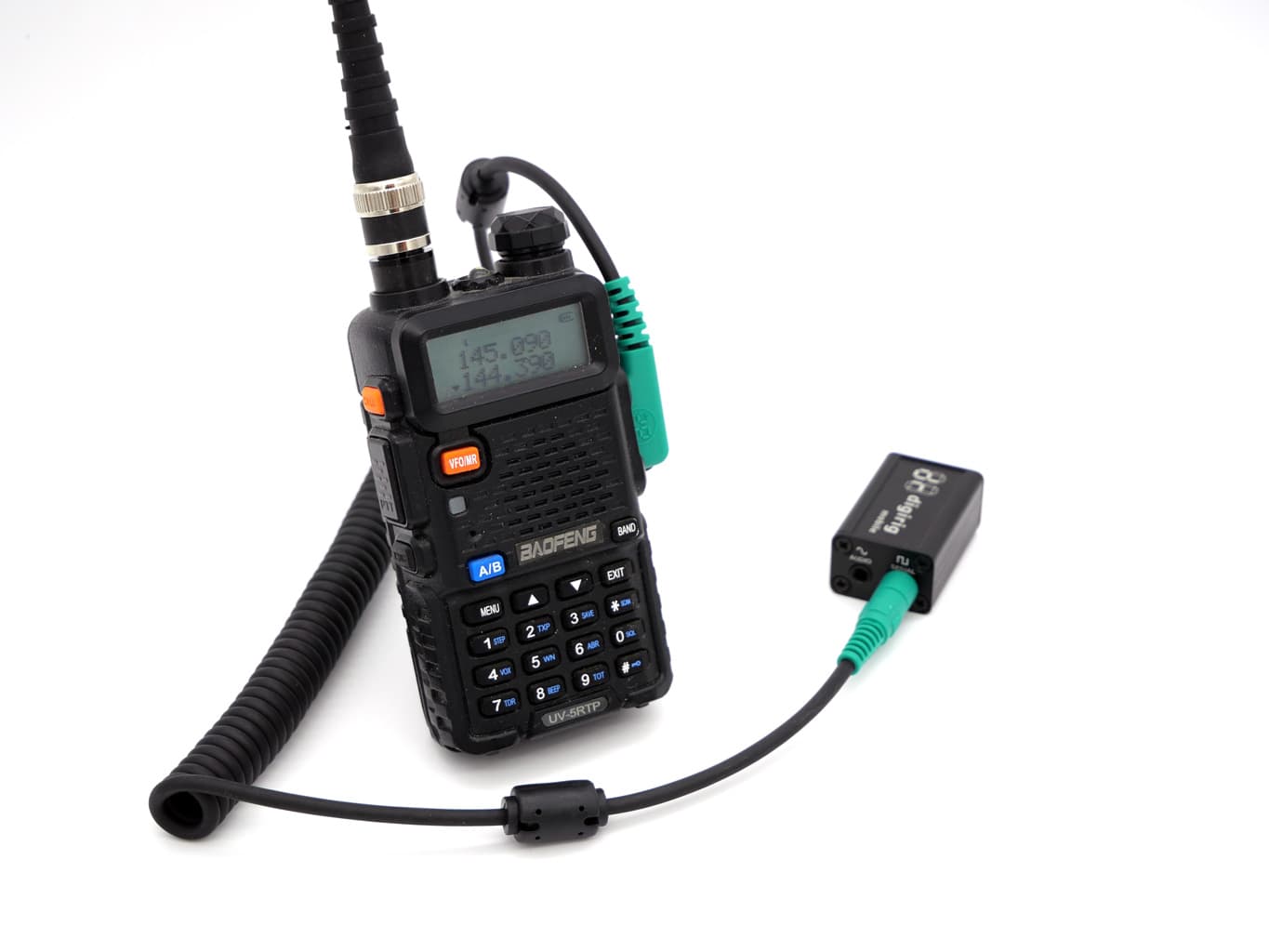

cables work with popular handy talkie (HT) models featuring K1 connector (3.5mm and 2.5mm TRS connectors) data cable allows digital modes and packet radio protocols as FT8, FT4, SSTV, APRS, Echolink, Allstar etc great for working satellites (e.g. APRS and SSTV) data cable (black K1 connector) combines audio and PTT control, plugs into Digirig’s audio socket Chirp programming cable (green K1 connector) plugs into serial (green) socket of Digirig Mobile coiled cable keeps things nice and tidy by preventing knots and kinks about 24″ relaxed, 72″ fully stretched shielded and RF choked with ferrite beads on both ends to prevent RFI premium quality materials and craftsmanship Interface Compatibility Notes The audio cable is compatible with Digirig Mobile 1.6 or later in any configuration and all other models of Digirig interface. Programming cable requires Digirig Mobile in logic levels or TX-500 configuration [more info]. Programming via the serial port is not available in some radios using K1 connector. Notable examples are Anytone DMR HTs and Kenwood HTs requiring direct USB connection to the computer for memory uploads. Other HTs that can be interfaced with the data cable (programming results may vary) AnyTone Handheld Radio: AT-D868UV, AT-D878UV, AT-878UVII Plus WOUXUN handheld Radio: KG-UVD1P, KG-679 Kenwood handheld Radio: TK-3207, TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160, TH-K20, D74 BridgeCom handheld Radio: BCH-220, BCH-270, D-500, D-30 PUXING handheld Radio: PX-888, PX-888K, PX-777, PX-333, PX-666, PX-328 QUANSHENG handheld Radio: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT Linton handheld Radio: LT-6288, LT-5288, LT-2288, LT-3288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268 , LT6188, LT3288 WEIERWEI handheld Radio: VEV-3288S,VEV-V1000,VEV-6288, VEV-3288 TIDRADIO TD-V2, TD-H8, TD-H3 KST V6 handheld Radio KS-8R handheld Radio
