$111.64
See if it's really the one
Search with this product to compare it, find similar styles, or turn up something better before deciding.

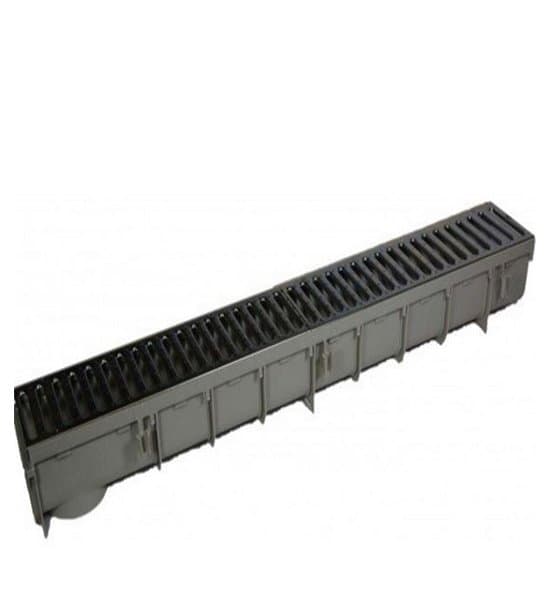

Description 5” Pro Series Channel Drain Kit with Metal Grate 5″ wide x 1 Meter Channel Grate and Channel Drain with mechanical interlocking joints and UV inhibitors. Open surface area 19.32 square inches per foot. Class B: Loads 61-175 psi. Recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph. Includes 1 channel drain, 1 grate (galvanized steel), 1 end outlet, 1 end cap. Light Gray/Galvanized Steel. Dimension(s): 39-3/8″ L x 4-1/2″ W x 4-3/4″ H. Grate opening: 0.45″ x 4″. Head pressure/Flow rate: 1″ = 83.58 GPM per foot, 0.5″ = 59.10 GPM per foot. Use with 3″ (Hub) and 4″ (Spigot) Sewer & Drain Pipe. Rebar tie clips for easier installation: #4 Rebar. Specifications Technical Specifications
Have a question about this?
We currently ship within the US, with more countries coming soon.
Final cost and dates are confirmed at checkout.
🇺🇸 Ship from USA · On Agora since 2026
$111.64
