40×42 Timber Frame Horse Barn Plan

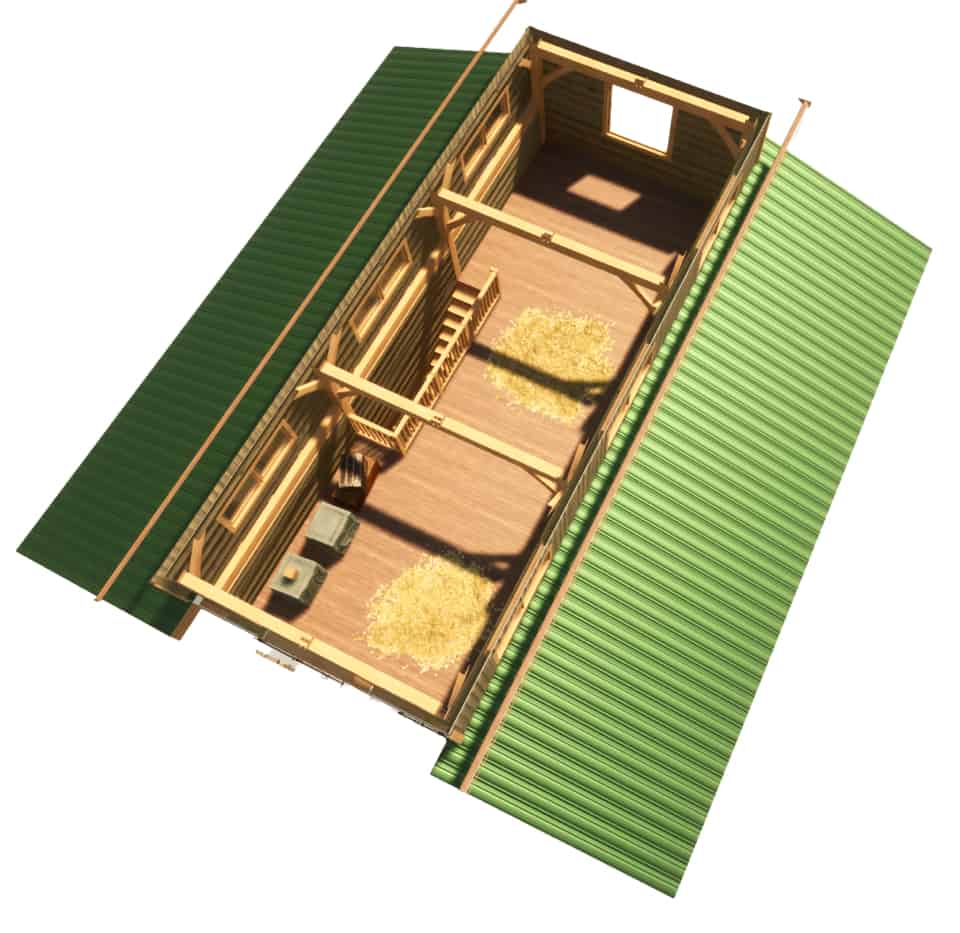

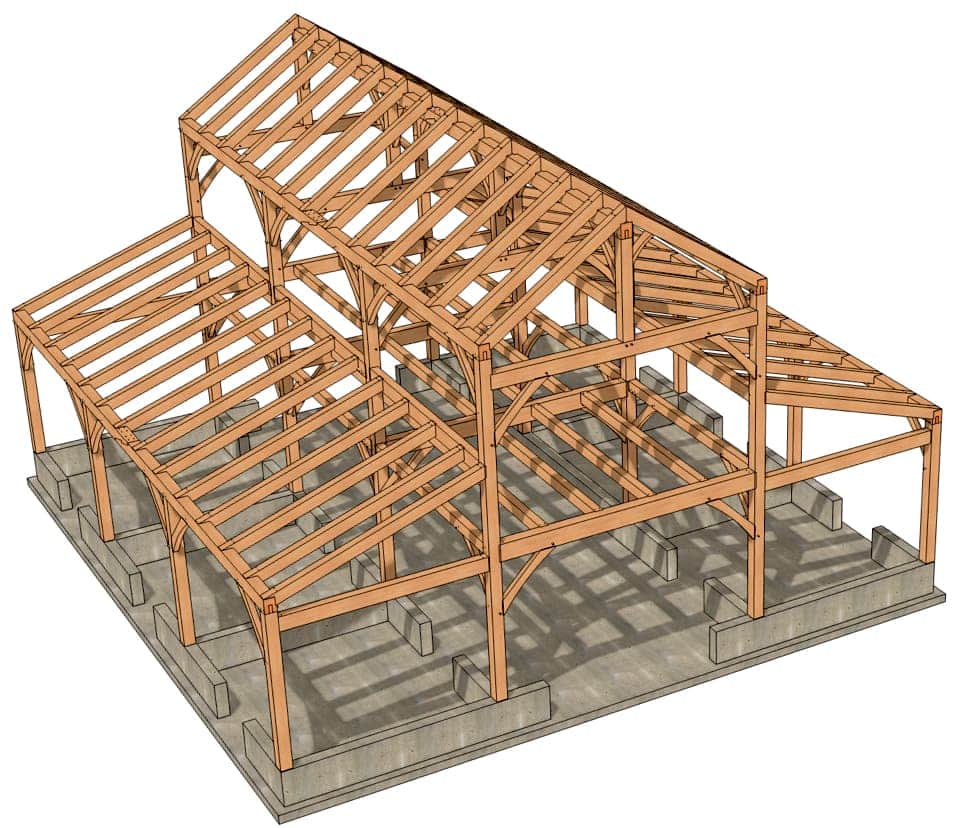

Introducing our 40×42 Timber Frame Horse Barn—a perfect blend of old-world craftsmanship and modern functionality. Crafted in the classic Monitor Barn style, the barn features traditional mortise and tenon joinery that is both visually stunning and structurally sound. This barn is specifically designed to fit a true 40×42 foundation and is optimized to accommodate 6″ walls, ensuring durability and insulation. The first level of the barn, detailed in our comprehensive architectural drawings, boasts five spacious horse stalls and a well-appointed tack room. These designs provide an efficient, secure environment for both your horses and your equipment. Ascend to the second level, and you’ll find a generous storage loft that can also function as an office space or a rustic cabin. This upper floor allows for unparalleled versatility, tailoring the barn to your individual needs. Structural Dimensions: Plates stand at heights of 9′-6″ and 19′-7 1/16″, with the top of the frame at the center aisle reaching 24′-10 5/16″. This offers abundant vertical space, serving diverse functions from stabling to lofted amenities. Roofing Details: The barn features a 4:12 roof pitch on the shed wings and an 8:12 pitch on the center aisle, marrying aesthetics with functional drainage and snow shedding capabilities. Tailored for SIP Roofing: Notably, the barn is designed without overhangs, making it ideal for construction with Structural Insulated Panel (SIP) roofing for superior insulation and energy-efficiency. Our 40×42 Timber Frame Horse Barn stands as a testament to the harmonious union of style and practicality, setting a new standard for barn construction that will elevate any property. For more information about this plan please visit its page at 40×42 Timber Frame Horse Barn.  This plan is included in our Plan Bundle. __CONFIG_colors_palette__{“active_palette”:0,”config”:{“colors”:{“240ab”:{“name”:”Main Accent”,”parent”:-1},”73e66″:{“name”:”Second Accent”,”parent”:-1}},”gradients”:[]},”palettes”:[{“name”:”Default”,”value”:{“colors”:{“240ab”:{“val”:”rgb(36, 110, 169)”,”hsl”:{“h”:206,”s”:0.64,”l”:0.4}},”73e66″:{“val”:”rgb(254, 179, 43)”,”hsl”:{“h”:38,”s”:0.99,”l”:0.58}}},”gradients”:[]},”original”:{“colors”:{“240ab”:{“val”:”rgb(36, 110, 169)”,”hsl”:{“h”:206,”s”:0.64,”l”:0.4}},”73e66″:{“val”:”rgb(254, 179, 43)”,”hsl”:{“h”:38,”s”:0.99,”l”:0.58}}},”gradients”:[]}}]}__CONFIG_colors_palette__ 100% Money Back Guarantee for 30-Days Purchase With Confidence…It’s Risk Free! If, for any reason, you don’t like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they’ll either help you out until you get the results you need or give you a swift refund. Important Information and Plan Licensing Agreement: Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction. Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website. This License is personal to you only. You may not use the License for any other purpose except for personal purposes. When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above. All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement. You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF’s you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own. *Please note:  You or someone else can print the plans for planning and construction use. Your License does not allow others to represent our design work as their own. Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise. Any commercial use of the plans is strictly prohibited. __CONFIG_colors_palette__{“active_palette”:0,”config”:{“colors”:{“617ae”:{“name”:”Main Accent”,”parent”:-1},”a740a”:{“name”:”Main Accent Transparent”,”parent”:”617ae”},”d4f6a”:{“name”:”Main Accent Dark”,”parent”:”617ae”}},”gradients”:[]},”palettes”:[{“name”:”Default Palette”,”value”:{“colors”:{“617ae”:{“val”:”var(–tcb-color-1)”},”a740a”:{“val”:”rgba(10, 108, 194, 0.04)”,”hsl_parent_dependency”:{“h”:208,”l”:0.4,”s”:0.9}},”d4f6a”:{“val”:”rgb(0, 44, 82)”,”hsl_parent_dependency”:{“h”:208,”l”:0.16,”s”:1.03}}},”gradients”:[]},”original”:{“colors”:{“617ae”:{“val”:”rgb(19, 114, 211)”,”hsl”:{“h”:210,”s”:0.83,”l”:0.45,”a”:1}},”a740a”:{“val”:”rgba(19, 114, 211, 0.04)”,”hsl_parent_dependency”:{“h”:210,”s”:0.83,”l”:0.45,”a”:0.04}},”d4f6a”:{“val”:”rgb(2, 54, 108)”,”hsl_parent_dependency”:{“h”:210,”s”:0.96,”l”:0.21,”a”:1}}},”gradients”:[]}}]}__CONFIG_colors_palette__ Click HERE *** Read The Complete “Important Information And Plan Licensing Agreement” Before Purchase***
