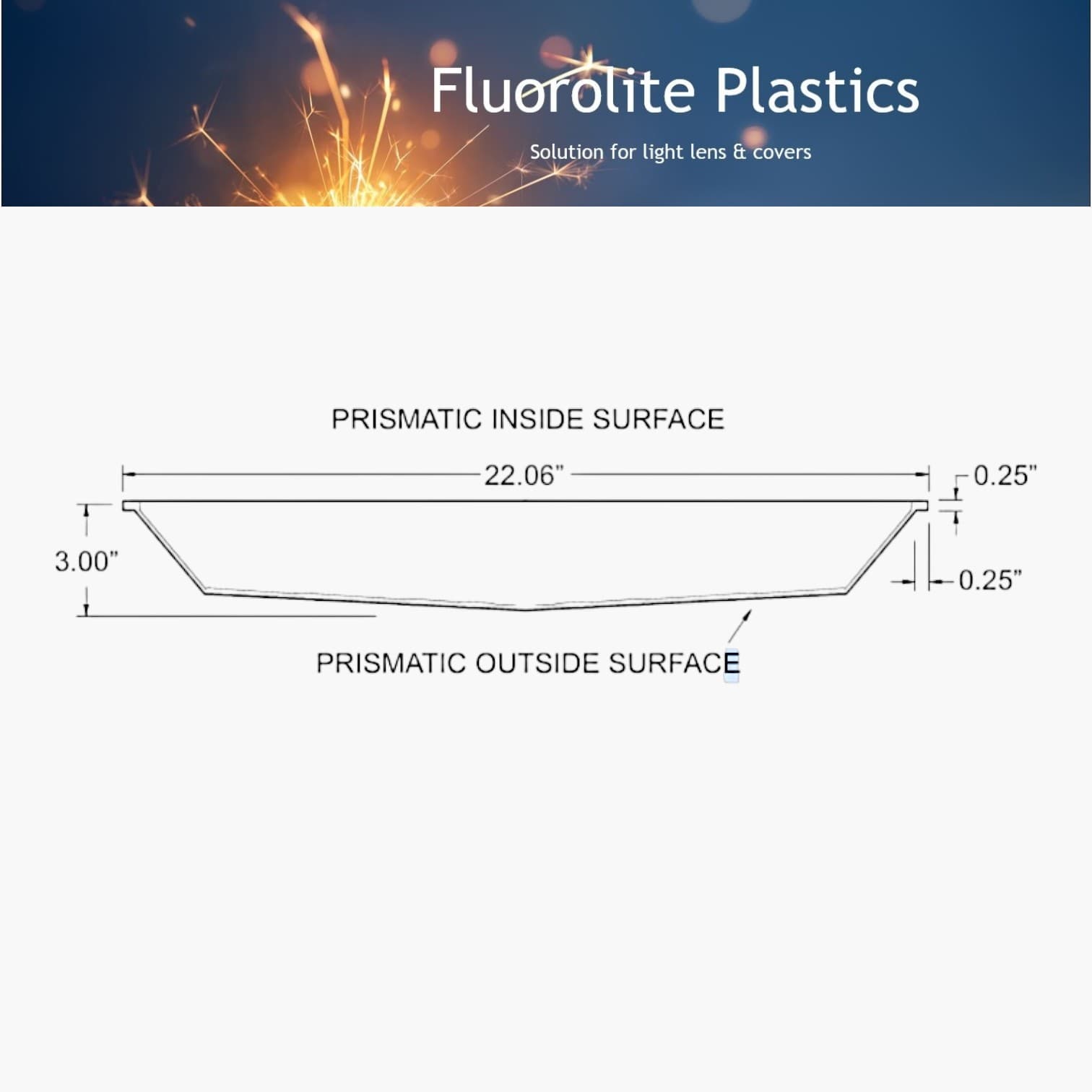

F-9095 | Acrylic Square Drop Lens Refractor | 22″Diameter | 3″ Depth | Clear Decorative Design

22-Inch High Bay Drop Lens The lexalite 622 22-Inch High Bay Drop Lens is designed for LED, induction, fluorescent, and HID lighting systems. It helps reduce glare and visible lamp images while improving light distribution and spacing performance. This high bay drop lens mounts easily to 22-inch diameter specular, white aluminum, or prismatic reflectors using a clamp band. It is ideal for high bay applications where reduced brightness and wider light distribution are desired. Features & Benefits Designed for LED, induction, fluorescent, and HID light sources. Reduces visible lamp images and uncomfortable glare. Helps create wider and more effective light distribution. Improves spacing-to-mounting-height performance. Ideal for high bay lighting applications. Works with 22-inch 22 inch diameter  acrylic drop lens aluminum and prismatic reflectors. Frosted acrylic options provide additional glare reduction. Frosted designs maintain high light transmission and lighting efficiency. Material Options Clear Acrylic UV resistant for long-term performance. Continuous operating temperature up to 176°F (80°C). Maximum light transmission up to 92%. Available in clear finish. LD Acrylic UV resistant with continuous operating temperatures up to 176°F (80°C). Light transmission ranges from 90% to 94%, depending on the application. Microsphere technology provides a distinctive glare-reducing appearance. Maintains efficient and evenly distributed light output. Polycarbonate UV stabilized for improved durability. Continuous operating temperature up to 194°F (90°C). High impact resistance, including temperatures as low as -40°F (-40°C). Light transmission up to 88%, depending on the application. Available in clear finish. Applications The Model 622 can be mounted to the 822, S22, and S22T Prismatic Reflexors® using a 22” clamp band. The high bay drop lens is suitable for high bay replacement lens, warehouses, manufacturing facilities, commercial buildings, retail spaces, gymnasiums, and other high bay lighting applications where glare control and wider light distribution are important. Maximum Temperature & Material Disclaimer Acrylic maximum working temperature: 80°C (176°F). Polycarbonate maximum working temperature: 90°C (194°F). Actual temperature performance depends on the specific product and application. UV exposure and chemical contact can cause physical damage and may shorten the material’s operating life. The Model 622 has additional resin options of UV stabilized Acrylic in Clear LED grade and Lumieo™ (for greater diffusion), as well as, clear Polycarbonate for areas where breakage and high ambient heat are concerns. Actual wattage ratings depend on several factors, including fixture type, bulb location, and ambient temperature. No warranty or guarantee is expressed or implied regarding product suitability for a specific application. The user is responsible for determining whether the selected material is suitable for its intended purpose. Always consider the fixture environment, operating temperature, UV exposure, chemical exposure, and lamp wattage before installation. Product Specifications Model: Lexalite 622 Diameter: 22 inches Application: High Bay Lighting Compatible Light Sources: LED, Induction, Fluorescent, HID Mounting: Clamp band Compatible Reflectors: Specular aluminum, white aluminum, and prismatic Available Materials: Acrylic, LD Acrylic, Polycarbonate (PLEASE CALL FOR LD ACRYLIC AND POLYCARBONATE)
