12″ x 4″ 95A Orange Premium Polyurethane on Iron – Model 100 Swivel Caster

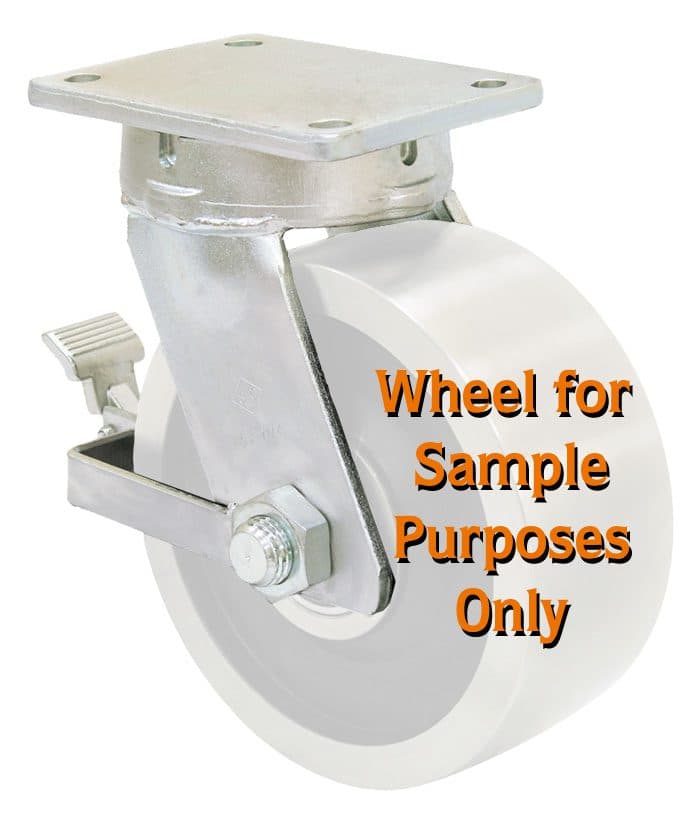

The Swivel Lock and the Wheel Brake Options may add 1 week to the lead time. They are not returnable if ordered with either option. Model 100 Plate Caster with has a load capacity rating of up to 10,000 lbs. Model 100 swivel casters have a precision machined swivel bearing which provides easier swiveling, reduced swivel vibration, a cross bar welded between the legs for added strength against abuse, and longer trouble free performance.  Given the very high weights involved, model 100 plate casters are moved primarily with mechanically powered equipment.  Options customers will include are a face contact wheel brake to lock the wheel, and a swivel lock to convert a swivel caster into a rigid caster for straight line travel.  There are lubrication fittings for all moveable parts, and the metal frames are zinc plated for rust resistance. Special premium polyurethane which slows down internal heat that builds up from high loads and significantly increases in its load capacity and life span. The “PX” Premium Polyurethane on Iron Wheel is engineered for heavy-duty industrial applications, featuring a 1″ thick polyurethane tire (95A Durometer) bonded to a robust iron core. With sizes ranging from 2″ to 4″ widths and diameters up to 16″, it supports impressive load capacities—up to 10,000 lbs for the 16×5 size. Its standout feature is the ability to slow down heat buildup during operation, minimizing wear and prolonging service life in high-stress settings. This wheel delivers smooth rolling, chemical resistance, and non-marking performance, making it ideal for industries like aerospace, defense, and manufacturing. Equipped with precision sealed ball or tapered roller bearings, it functions reliably between -20° and 180° F, ensuring durability where performance is critical. The polyurethane layer not only absorbs impact to protect floors and cargo but also reduces noise, a key advantage in controlled environments. Trusted by industry leaders in the aerospace and automotive world, the “PX” wheel excels at safeguarding valuable surfaces and equipment while maintaining cool operation in high-friction or continuous-use scenarios. It’s not designed for rough terrain or sudden shocks—opt for smooth, controlled settings to maximize its benefits. For inquiries about sizes, bearings, or specifications, reach out at 800-501-3808 or sales@castercity.com. Qualities of the PX Premium Polyurethane on Iron Wheel Industry-leading load capacity: Premium Polyurethane on Iron wheel supports up to 10,000 lbs. for heavy-duty industrial tasks. High-performance polyurethane tire: 1″ thick, 95A Durometer tire ensures durability, wear resistance, and tear strength. Iron core construction: Robust iron core delivers strength and stability for extreme loads. Lower rolling resistance: Polyurethane tire reduces effort for moving heavy loads, enhancing efficiency. Higher dynamic load capacity: Supports substantial weights with uncompromised performance in tough conditions. Exceptional wear resistance: Thick tread resists deformation, ensuring longevity under constant use. Chemical-resistant wheel: Resists oil, grease, and harsh chemicals for demanding industrial environments. Floor-protecting design: 95A polyurethane absorbs shocks, safeguards floors, and protects cargo. Non-marking operation: Clean, quiet rolls maintain controlled environments in production zones. Precision bearings support: Choice of sealed ball or tapered roller bearings ensures smooth, reliable motion. Wide temperature versatility: Operates seamlessly from -20° to 180° F across diverse settings. Self-energizing wheel design: Soft tire deflection eases starting and sustains effortless movement. Maintenance-free reliability: Sealed bearings eliminate upkeep, boosting operational uptime. Versatile size options: Available in 2″, 3″,  4″ and 5″ widths, with diameters up to 16″ for flexibility. Aerospace and defense approved: Trusted by every aerospace and defense contractor around. Heavy-duty industrial wheel: Ideal for warehouses, food processing, and distribution centers. Smooth, quiet rolling: Minimizes noise and vibration in high-traffic manufacturing areas. Impact-absorbing tire: Protects floors and cargo from damage during heavy-duty operations. *This is the Plate Caster Model 100 with Extra Heavy Duty Polyurethane on Iron Swivel Wheel. Photo Shown on CasterCity.com is with 12” x 3”. For more information and help placing an order, give us a call at 800-501-3808. Sample of the Plate Caster Model 100: Premium Polyurethane (PX) Industrial Caster Wheel The PX Industrial Caster Wheel from Caster City is our highest-capacity polyurethane caster wheel, engineered for heavy-duty applications. Built with a premium 95A Durometer polyurethane tread (available in ½”, ¾”, or 1” thickness depending on width) and finished in signature orange, this wheel is softer and more resilient than standard 65D polyurethane or other heavy industrial options. It delivers unmatched performance for power towing and transporting large loads indoors or outdoors. Key Features and Benefits Superior Load Capacity and Durability: Supports higher loads than any other polyurethane caster wheel we manufacture, thanks to our proprietary Megapoly™ compound. This advanced formulation slows internal heat buildup from extreme loads, extending wheel lifespan and ensuring reliable performance under the heaviest demands. Enhanced Resiliency and Ease of Motion: The soft, rebounding polyurethane tread requires less effort to initiate movement, making it ideal for one-person operation of substantial cargo. Its rapid rebound action outperforms standard polyurethane or rubber wheels, making it easier to start and maintain motion in manufacturing, staging, or facility transitions. Smoother Ride and Protection: Provides a vibration-dampening ride that safeguards sensitive machinery, components, and cargo. The thick tread also protects floors from wear, chipping, and “jackhammer” impacts common with harder wheels. Bearing Options: Available with either precision sealed ball bearings or tapered roller bearings for maximum rolling efficiency, especially during towing. This caster wheel excels in industrial environments, balancing extreme capacity with floor-friendly resilience for seamless heavy-load handling. Contact us at Caster City today for custom configurations. What is Durometer and How is it Measured? Durometer measures polyurethane hardness on the Shore scale. Shore A (softer treads): 75A for RF wheel, 65A for RH wheel, 60A for RQ wheel, 50A for RS wheel, 95A for the PX Polyurethane wheel Shore D (harder treads): 70D for PYH or HU Polyurethane Wheels Premium Polyurethane (PX) Industrial Caster Wheel from Caster City The Premium Polyurethane Wheel is our highest-capacity polyurethane wheel, designed for heavy-duty applications. Crafted with a signature orange, 95A Durometer polyurethane tread, available in ½”, ¾”, or 1” thickness depending on width, this wheel is softer and more resilient than standard 65D polyurethane or other heavy industrial alternatives. Its proprietary Megapoly™ compound slows internal heat buildup from extreme loads, significantly increasing load capacity and lifespan. This makes the PX wheel ideal for power towing and transporting large loads indoors or outdoors, offering unmatched durability and performance in demanding industrial environments. The PX wheel’s resilient 95A Durometer tread provides exceptional ease of motion, requiring less effort to initiate movement, perfect for one-person operation of substantial cargo. Its rapid rebound spring action outperforms standard polyurethane or rubber wheels, making it easier to start and maintain motion in manufacturing, staging, or facility transitions. Equipped with either precision sealed ball bearings or tapered roller bearings, the PX ensures optimal rolling efficiency, especially during towing. The 1” thick tread delivers a smoother, vibration-dampening ride, protecting sensitive machinery, components, and costly floors from wear, chipping, or “jackhammer” impacts common with harder wheels. This industrial caster wheel excels in balancing extreme load capacity with floor-friendly resilience, making it the top choice for seamless heavy-load handling. The PX wheel’s unique resiliency, compared to other polyurethane wheels of its size, enhances towing performance and protects cargo during transport inside and outside facilities. For custom configurations tailored to your specific needs, contact Caster City to explore how the PX Industrial Caster Wheel can elevate your heavy-duty operations.
